상업용 디스플레이 액세서리

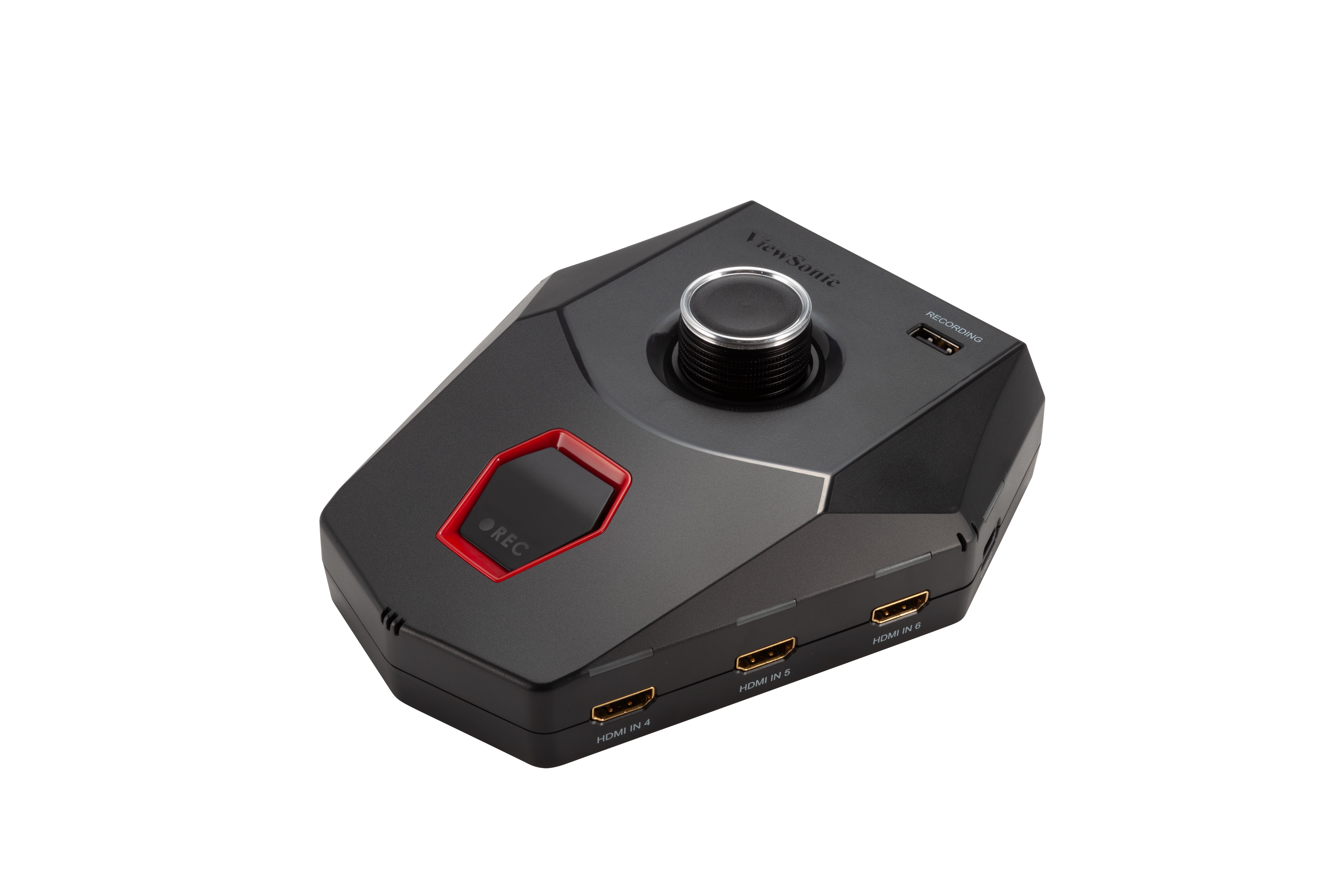

ViewBoard Huddle (VBH100)
주요 기능
- Ideal for a huddle space, with up to 7 attendees
- Rotatable switch for presenting screen selection
- One button screen and audio recording
- Easy, takeaway session recording in a USB flash drive
- Flexible installation without distance concerns
- HDCP certified for digital copy protection
- Touch feedback control
- Plug-and-play
제품 설명
ViewBoard Huddle facilitates group presentation by offering 6 HDMI PC & 1 USB Type-C for screen-sharing. It features a rotatable switch to select different presenters’ screens one at time and incorporates one button screen and audio recording. The entire on-screen content and discussion can be recorded on an external USB flash drive. With HDBaseT output*, the ViewBoard Huddle provides convenience with its long-distance installation for larger rooms.
* Connection with Cat6 or above internet cable for up to 100m
* Connection with Cat6 or above internet cable for up to 100m
방문
- www.viewsonic.com
-
AUDIO
Microphone: Yes -
CONNECTIVITY
USB: USB2.0 –typeA x 2 ; USB2.0 –typeB x 1 ; USB -type C x 1 HDMI-IN: Yes HDMI-OUT: Yes HDBaseT: TX x 1 -
SUPPORTED FILE FORMAT
Video + External Audio: MP4 -
POWER
AC adapter: AC Input voltage 100~240VAC, 50-60 Hz (universal),
AC input current : 0.6A Aac max
DC output voltage : 5 V dc ( typical)
DC output current : 4.0 A ( typical) -
INTERFACE
I/O ports: HDMI-IN x6
HDMI-OUT x1
HDBaseT TX x1
USB2.0 –typeA x 2
USB2.0 –typeB x 1
USB -type C x -
OPERATING CONDITION
Temperature/Humidity Charging temperature range of handset Altitude: 0°C to 40°C -
STORAGE CONDITION
Temperature/Humidity Storing temperature range Altitude: -20°C to 60°C
20%~90% non-condensing
-20~60°C [-4~140°F] -
INCLUDED ACCESSORIES
The top-level assembly shall contain:
1. VSH100
2. Quick Start Guide
3. HDMI cable x 2 -
DIMENSIONS
Physical (W xH xD): 150.19 x 56.3 x 169.68 mm ( 5.9 x 2.2x 6.6 inches) Kraft Box (W xH x D): 210 x 189 x 111 mm (8.26 x 7.44 x 4.37inches) -
WEIGHT
Physical (Net): 537.6 g (1.18lb) Kraft Box (Gross): 1400 g (3.08lb)
