LCD 디스플레이
VG2455
주요 기능
- USB Type-C
- Frameless bezel
- SuperClear® IPS technology
- HDMI, DisplayPort and VGA inputs
- vDisplay Manager (free download)
제품 설명

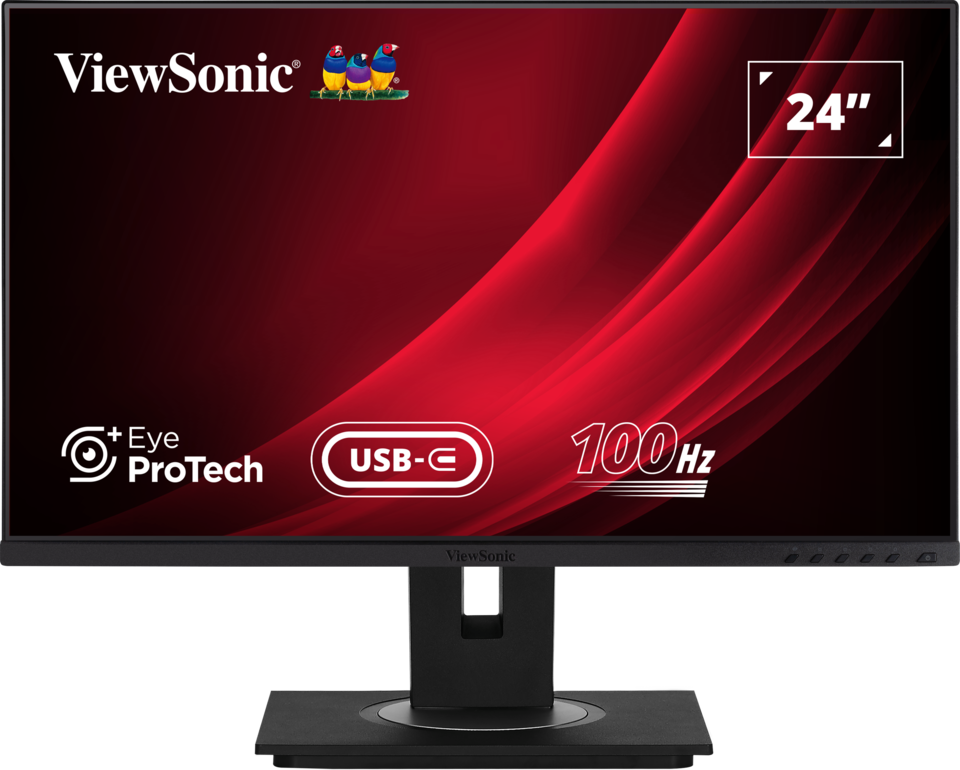

The ViewSonic VG2455 is a 24" (23.8" viewable) 1080P IPS monitor designed to fit the modern office space. The monitor comes with a built-in USB Type-C port. Charge and display content simply via a single cable from your device, enabling connection to your laptop through a single USB cable and keeping your workstation neat while also functioning as a docking monitor. In addition, the monitor is equipped with DisplayPort, HDMI, VGA, and three USB Type-A ports to expand your efficiency. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or have strategic group discussions around the screen. The packaging is environmentally friendly and offers quick and easy setup, making the VG2455 monitor perfect for business environments.

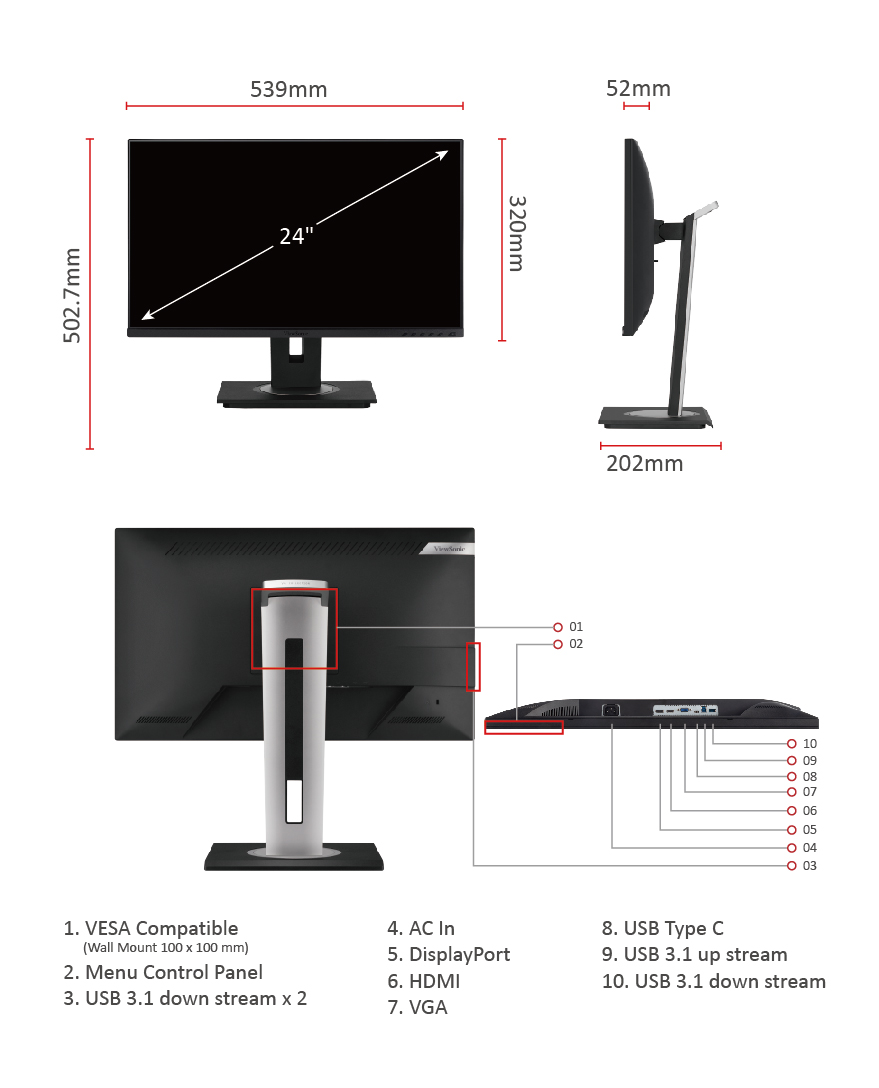

- VESA Compatible (Wall Mount 100 x 100 mm)
- Menu Control Panel
- USB 3.1 down stream x 2
- AC In
- DisplayPort
- HDMI
- VGA
- USB Type C
- USB 3.1 up stream
- USB 3.1 down stream
방문
- www.viewsonic.com
-
표시
디스플레이 크기(인치): 24 표시 가능한 영역(인치): 23.8 패널 유형: IPS Technology 결의안: 1920 x 1080 해상도 유형: FHD (Full HD) 정적 대비 비율: 1,000:1 (typ) 동적 대비 비율: 50M:1 광원: LED 밝기: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + A-FRC) 가로 세로 비율: 16:9 응답 시간(일반 GTG): 5ms 응답 시간(GTG 및 OD): 5ms 보기 각도: 178º horizontal, 178º vertical 백라이트 수명(시간): 30000 Hrs (Min) 곡률: Flat 새로 고침 빈도(Hz): 60 블루라이트 필터: Yes Low Blue Light: Software solution 깜박임 없음: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size / 93% coverage (Typ) 픽셀 크기: 0.275 mm (H) x 0.275 mm (V) 표면 처리: Anti-Glare, Hard Coating (3H) -
호환성
PC 해상도(최대): 1920x1080 Mac® 해상도(최대): 1920x1080 PC 운영 체제: Windows 7/8/8.1/10/11 certified; macOS tested Mac® 해상도(분): 1920x1080 -
커넥터
VGA: 1 USB 3.2 Type A Down Stream: 3 USB 3.2 Type B Up Stream: 1 USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger) HDMI 1.4: 1 디스플레이 포트: 1 전원 투입: 3-pin Socket (IEC C14 / CEE22) -
오디오
내부 스피커: 2Watts x2 -
힘
에코 모드(보존): 11.9W Eco Mode (optimized): 14.4W 소비(일반): 17.8W 소비량(최대): 21W 전압: AC 100-240V 대기: 0.3W 전원 공급 장치: Internal Power Supply -
추가 하드웨어
켄징턴 잠금 슬롯: 1 Cable Organization: Yes -
컨트롤
물리적 제어: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) 화면 디스플레이: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
작동 조건
온도: 32°F to 104°F (0°C to 40°C) 습도(결로하지 말 것): 20% to 90% -
WALL MOUNT
VESA 호환: 100 x 100 mm -
입력 신호
주파수 수평: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz, Type C: 15 ~ 82KHz 주파수 수직: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz, Type C: 24 ~ 75Hz -
비디오 입력
디지털 동기화: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C Analog Sync: Separate/Composite/SOG - RGB Analog -
인체공학
높이조절(mm): 130 회전: 120º 틸트(전진/후진): -5º / 40º 피벗(오른쪽/왼쪽): 90º / 90º -
무게(제국)
네트(lbs): 14.1 스탠드 없는 네트(lbs): 8.8 총계(lbs): 20.7 -
WEIGHT (METRIC)
순(kg: 6.4 스탠드없는망(kg): 4 그로스(kg): 9.4 -
치수(제국)(WXHXD)
포장(in.): 23.4 x 15.6 x 8.3 물리적(인치): 21.2 x 15.99~20.15 x 8 물리적(스탠드 없음): 21.2 x 12.6 x 2 -
치수(메트릭)(WXHXD)
포장(mm): 595 x 396 x 210 물리적(mm): 539 x 406.19~511.9 x 202 물리적 스탠드 미포함 (mm): 539 x 320 x 52 -
일반
패키지 내용물: VG2455 x1, 3-pin Plug (IEC C13 / CEE22) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 재활용/폐기: Please dispose of in accordance with local, state or federal laws. 보증: *Warranty offered may differ from market to market 전원 관리: Energy Star standards, EPEAT
