주요 기능
  • Full HD 1080p resolution
  • SuperClear® technology
  • Advanced ergonomic stand for tilt or flat
  • HDMI(MHL), DisplayPort and VGA inputs
  • 7H hardness screen

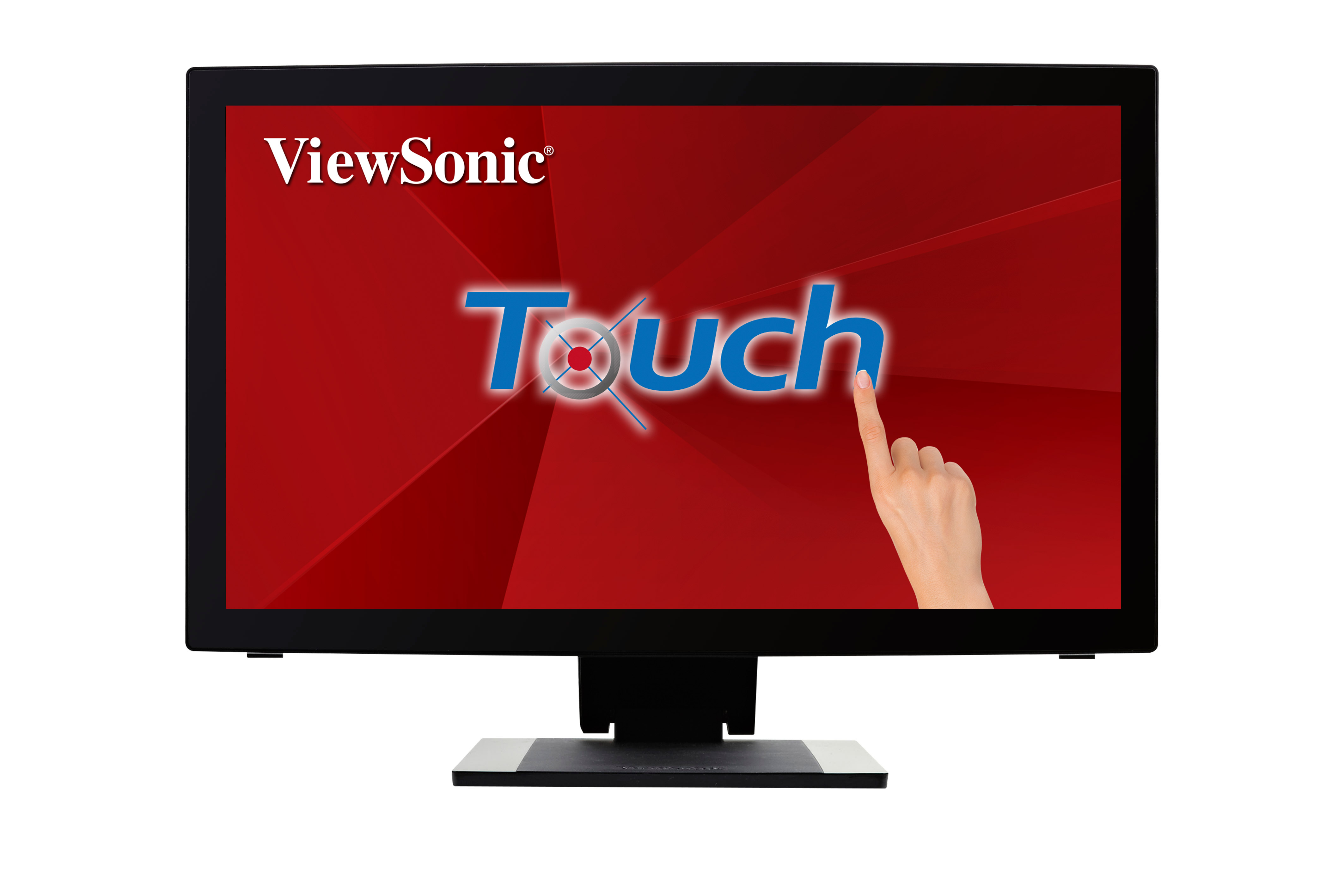

TD2240
제품 설명
ViewSonic’s TD2240 is a 22" 10-point projective capacitive touch display with 1920 x 1080 Full HD resolution. Windows® 8 compatible, it delivers a smooth, responsive touch experience for a variety of Windows® 8 home entertainment, office work, education, and custom commercial applications. MHL certification allows you to display the multimedia contents of your smartphone or tablet onto the screen of the TD2240 for a PC-free visual experience. The TD2240 is ergonomic as well, with its dual-hinge design, SuperClear® technology and sturdy base. Plus, it has versatile input options that include D-Sub, HDMI, DisplayPort and 4 USB ports that offer flexible connectivity for HD multimedia, peripheral, and storage devices.
방문
  • www.viewsonic.com
  • LCD
    유형: 22” (21.5” viewable)
    Display Area: 21.5 inch
    Optimum Resolution: 1920x1080
    대비 비율: 3000:1, 20,000,000:1 (DCR)
    밝기: 200 cd/m2 (typ)
    보기 각도: 178º horizontal, 178º vertical
    응답 시간: 25ms（ Tr + Tf）
    Panel Surface: Hard coating (3H Glass treatment) ; Touch Glass Surface Hardness (7H)
    광원: 30000 Hrs (Min)
    Colors: 16.7 M (6-bits + Adv FRC)
  • 비디오 입력
    Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
    Digital: HDMI (MHL2.0) / DisplayPort (PCI-E)
    Sync: Separate Sync/ Composite Sync/ Sync on Green
  • 호환성
    PC: PC Compatibles (VGA up to 1920x1080 Non-Interlaced)
    Mac: Power Mac (up to 1920x1080 ) (Touch function not compatible)
  • 커넥터
    Analog: 15-pin D-sub (VGA)
    Digital: HDMI(MHL2.0)/DisplayPort x1 (v1.2 compatible)
    USB: USB Port X2 (V3.0, 1-up/4-down)
    오디오: Audio in x1(3.5mm plug, green), Earphone out x1(3.5mm plug, blue)
    힘: Internal Power Board , 3-pin plug (CEE22) x1
  • 오디오
    Speakers: 2W x 2
    Amplifier: 2W
  • 힘
    전압: AC 100-240V (Universal); 50/60 Hz
    소비.: Standard: 23W; Optimize: 20 W (typ); Conserve: 16 W (typ)
  • 작동 조건
    온도: 32°F to 104°F (0°C to 40°C)
    습도: 10% to 90% (no condensation)
  • 치수
    Physical: 522.44mm (폭) x 396.96mm (신장) x 239.95mm (깊이)
  • 체중
    그물: 6.4 kg
  • 벽 마운트
    VESA® 100mm x 100mm
  • PACKAGE CONTENTS
    TD2240 LCD display/ Power cable/D-sub cable/MHL cable/USB cable/Quick start guide/ViewSonic Wizard CD-ROM
