빔프로젝터

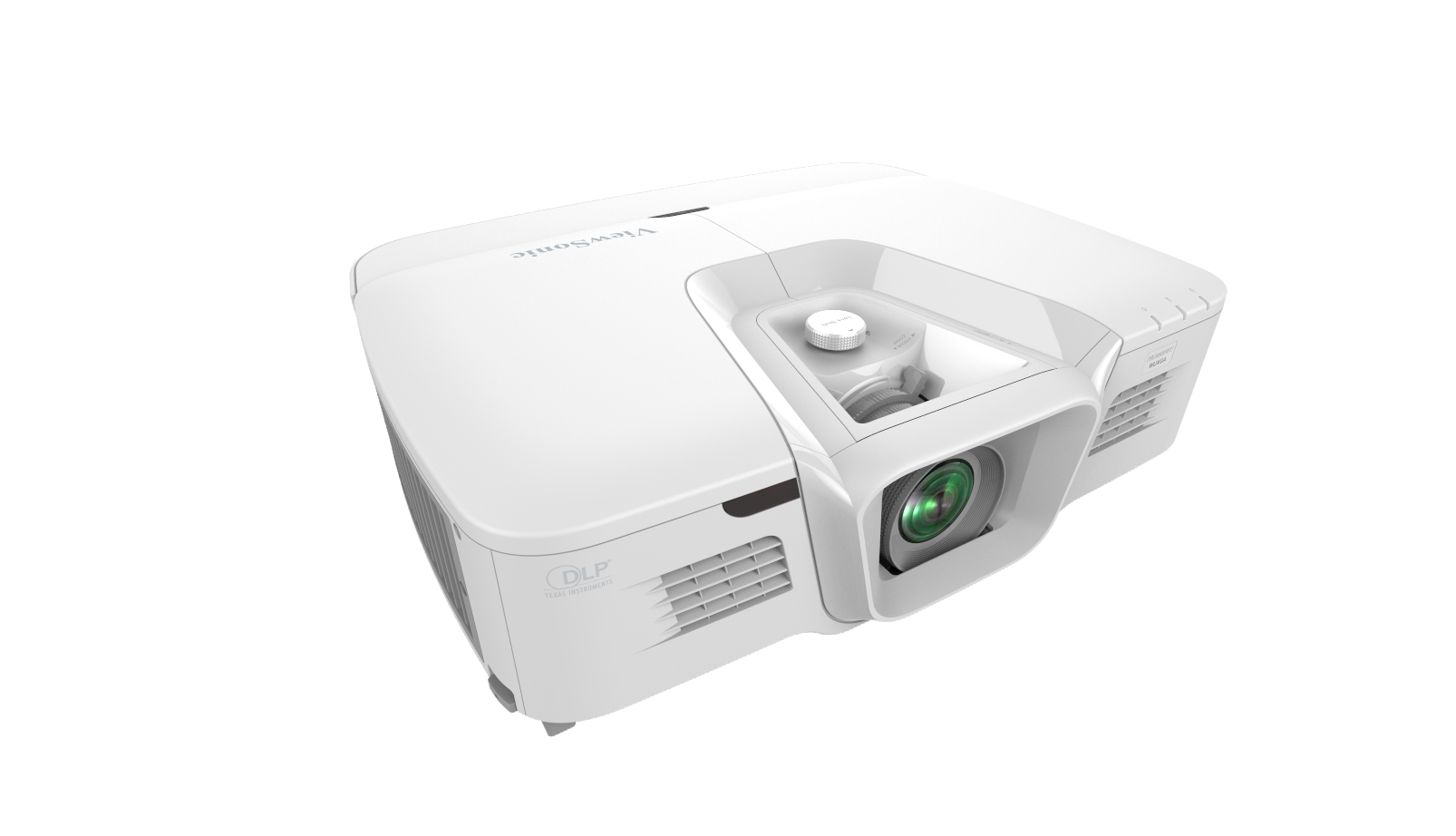

Pro8530HDL
주요 기능
- Full HD 1080p resolution
- 1.07 - 1.71 throw ratio
- Unique "Flex-In" design flexible integration
- Top cover design for easy dongle and lamp access
- PortAll® compartment for wireless dongle
제품 설명
Utilizing a unique "Flex-In" design, the Pro8530HDL integrates an intuitive form, high flexibility and an easy installation process, making it the ideal installation projector. Equipped with 5,200 ANSI Lumens and Full HD resolution, the Pro8530HDL boasts a sleek top cover and an intuitive PortAll® compartment to accommodate HDBT, wireless dongle, or PC stick integration for versatile application, while the cable management and 4-in-1 power button embody a bold and futuristic design. Moreover, the 4 HDMI ports, and centered lens with multiple adjustment in vertical lens shift, 1.6x optical zoom, HV keystone (auto V), and 4-corner offer flexible and easy installation. Powered by SuperColor™ and SonicExpert®, the Pro8530HDL provides a professional audiovisual performance. The Pro8530HDL not only meets large venue Pro AV projection requirements, but is also more than enough for general high-brightness projection.
방문
- www.viewsonic.com
-
DISPLAY
유형: TI DMD 0.65 Resolution: 1920x1080 (Full HD) F Stop / Focal Length: 2.54~3.07 / 15.75mm ~ 25.1mm 광학 줌: 1.6X 키스톤: +/- 30° (Horizontal / Vertical) Auto keystone: Yes (Vertical) Lens Shift: Yes (7.5% Full high or 15% Half high) Display Size: 30" ~ 300" 투척 거리: 0.71 m ~ 11.36 m 던지기 비율: 1.07~1.71 Lamp Power: 370W Lamp Life (Normal / SuperEco Mode): 2,000 / 2,500 (hours) 밝기: 5200 ANSI Lumens 대비 비율: 5000:1 Normal / Eco Mode: 36dB / 33dB Optical Offset: 115%~130%+-5% -
AUDIO
스피커: 10W Cube x 2 -
INPUT CONNECTIVITY
HDMI/MHL: x1 HDMI: x3 VGA: x2 S-비디오: x1 Component: x2 (Share with VGA input ) 컴포지트: RCA x1 오디오: 3.5mm mini jack x2, RCA(L/R) x1 USB: Type A x1 (Power Charging) / Mini type B x1 (Maintenance and mouse control) / Micro USB Wire x1 (Power Charging) Microphone: Share with Audio in 2 connector -
OUTPUT CONNECTIVITY
VGA: x1 오디오: 3.5mm mini jack x1 DC Output: x1 -
OTHER CONNECTIVITY
Lan RJ-45: x1 3D VESA: x1 IR Connector: x1 -
CONTROL
RS232: x1 -
DIMENSIONS
Physical (W×H×D): 469.5 x 316.24 x 139.8 mm -
WEIGHT
그물: 6.3 kgs / 13.89 lbs -
POWER
전압: 100~240Vac 50/60Hz 전력 소비: 574 W (Max.) -
패키지 내용물
Power Cord / VGA Cable, 1.8m, black / Remote Control with Batteries (With Laser pointer) / Quick Start Guide / ViewSonic CD Wizard / Cable Cover
