주요 기능
  • 0.23 ultra-short throw ratio
  • PortAll® compartment for wireless dongle
  • SonicExpert® technology and SonicMode
  • SuperColor™ technology
  • Horizontal and Vertical keystone

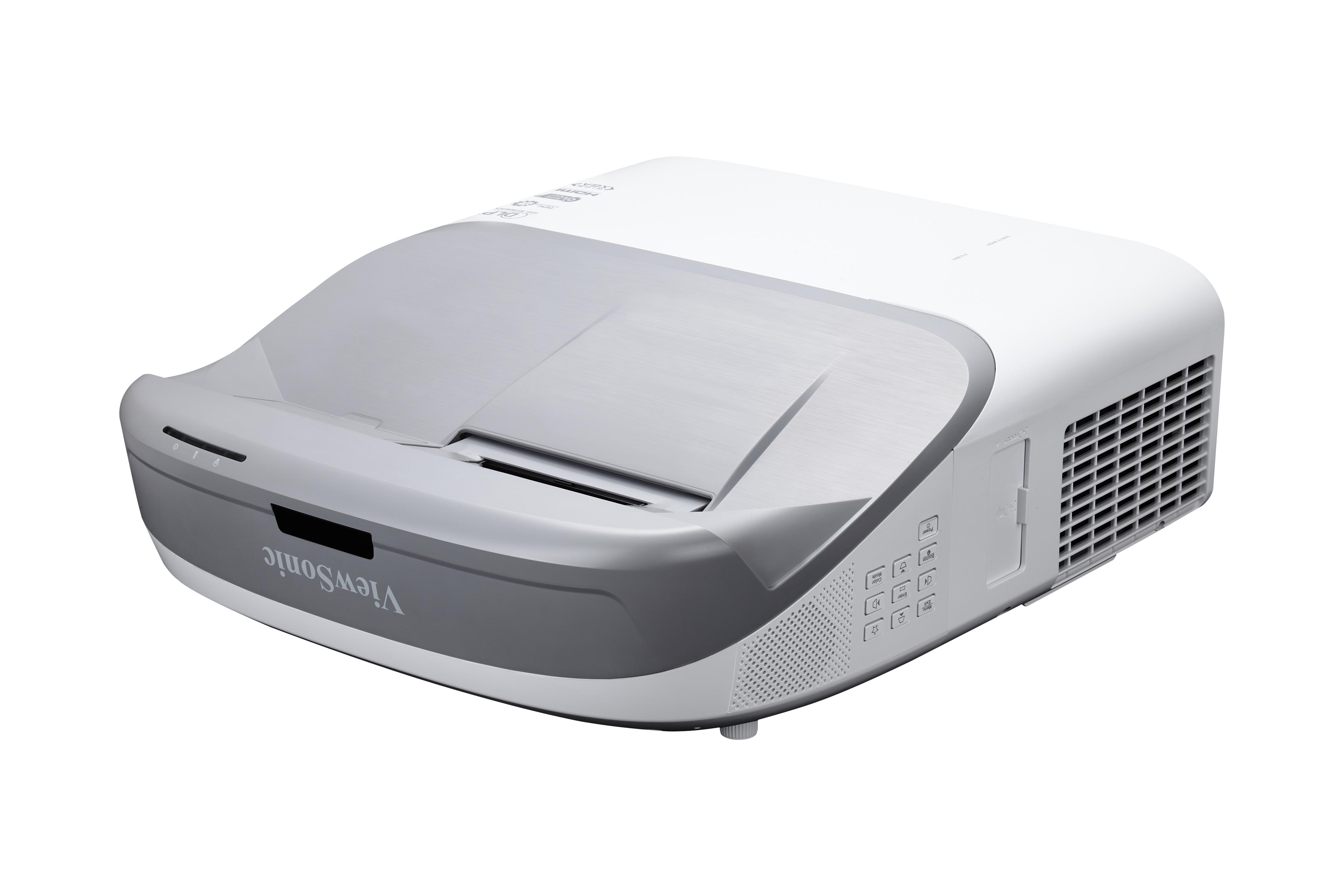

PS700W
제품 설명
For schools that need to project large, high-quality images from within a short distance, ViewSonic PS700W ultra-short throw projector is the perfect solution. With the ability to project 87” images from a distance of only 9.1cm* from the projection surface, the projector is flexible enough to fit any classrooms installation and keeps the projection beam clear of out of sight and eliminating image shadows for distraction-free classroom application. With the design of the PortAll® concealed compartment, PS700W provides more flexibility when using wireless dongles and PC sticks and allowing teachers to present more interesting lesson content. The best in class color accuracy of SuperColor™ Technology produces vibrant color, while SonicExpert® and SonicMode technologies deliver room-filling sound quality.
*Actual distances may vary depending on environmental conditions
  1. Lamp cover
  2. Projection Lens
  3. LED indicator
  4. IR remote sensor
  5. Air filter
  6. Focus
  7. Keypad
  8. USB
  9. Mini USB
  10. AC in
  11. HDMI
  12. S Video/Composite
  13. Audio in/out
  14. Dual VGA
  15. RS232
  16. VGA out
  17. LAN
  18. Kensington® Lock Slot
방문
  • www.viewsonic.com
  • SPECIFICATION
    Projector system: 0.65" WXGA (1280x800)
    밝기: 3300 ANSI Lumens
    Contrast Ratio with Sleep Mode: 10000:1
    광원: Lamp
    Lamp Hour (Nor./SuperEco): 3000/7500
    램프 와트: 240W
    Offset: 130%±5%
    던지기 비율: 0.23
    키스톤: HV
    광학 줌: Fixed
    Audible Noise (Normal/Eco): 35dB / 29dB
    스피커: 10W x 2 cube
  • 입력
    컴퓨터 위치(구성 요소와 공유): 2
    컴포지트: 1
    S-video: 1
    오디오 입력(3.5mm): 1
    오디오 입력(RCAR/L): 1
    HDMI: 1 (Back)
    HDMI/MHL: 1 (PortAll)
  • 산출량
    감시: 1
    오디오 출력(3.5mm): 1
    USB type A (Power): 2 (5V2.4A) 1x Back, 1x PortAll
  • 통제
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
  • DIMENSIONS AND POWER
    Dimension (Net): 434x388x153mm
    Weight (Net): 6.1kg
    Power Voltage: 100~240Vac 50/60Hz
    전력 소비: 410W (Max.)
  • STANDARD ACCESSORY
    Power cord: 1 or 2 (vary by region)
    VGA cable: 1
    원격 제어: 1 (w/laser pointer)
    QSG & CD: QSG: 1 / CD: 1
    Carton: Brown
  • LANGUAGES
    화면 디스플레이: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
