주요 기능
  • WXGA resolution
  • 22,000:1 contrast ratio
  • SuperColor™ technology
  • Widescreen brilliance
  • 0.49 short throw ratio

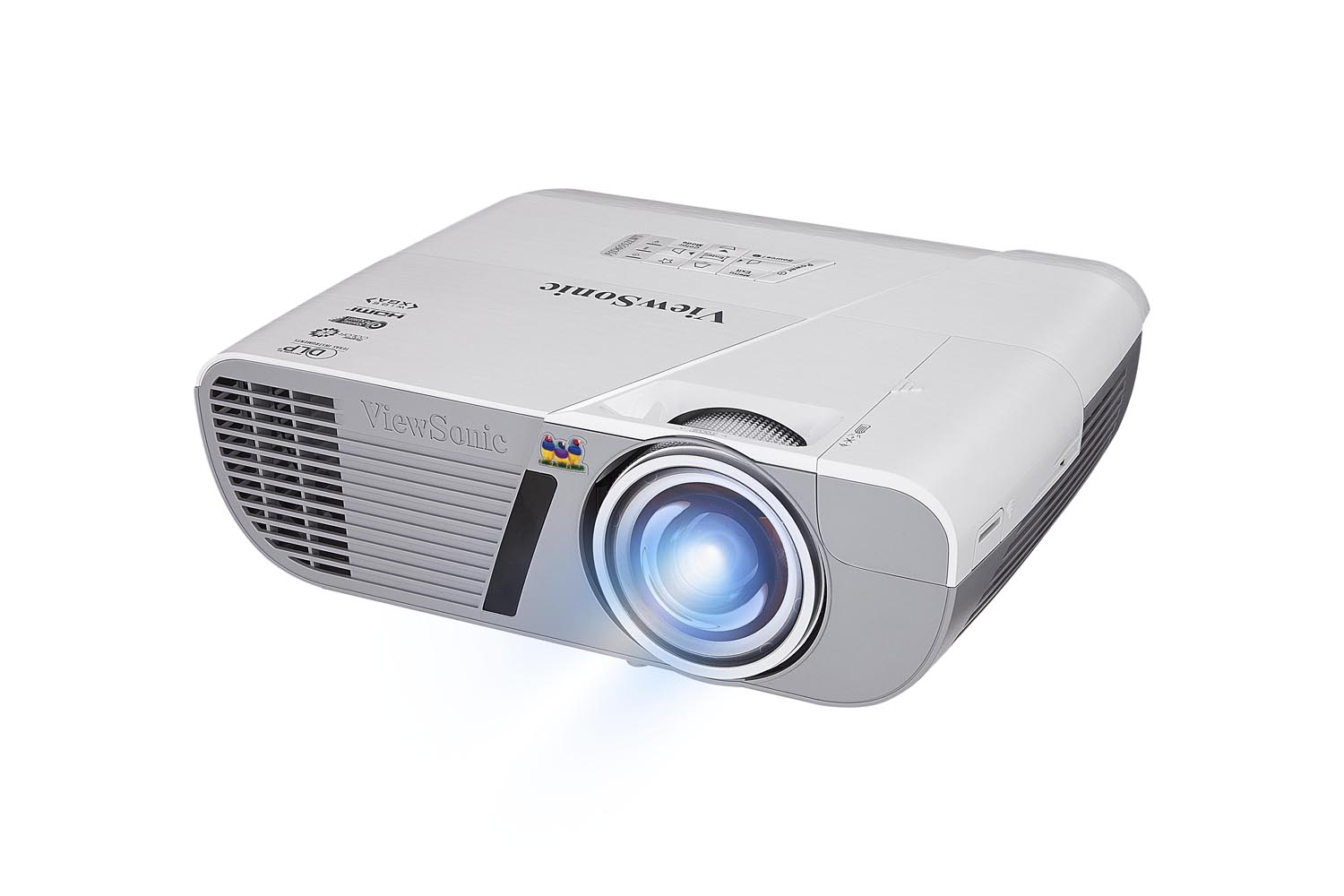

PJD6552LWS
제품 설명
The ViewSonic LightStream™ PJD6552LWS networkable short throw projector features 3,500 ANSI Lumens, native WXGA 1280 x 800 resolution, an intuitive, user-friendly design and a sleek white chassis. Exclusive SuperColor™ technology offers a wider color range for true-to-life image projection in any light, while SonicExpert™, ViewSonic’s proprietary sound enhancement technology, powers a 10W speaker to deliver incredibly clear and audible sound. PortAll - a neatly designed enclosed HDMI/MHL connection compartment, supports streaming media from wireless HDMI dongles or MHL connectors, while a cable management hood connects onto the back of the projector and eliminates unsightly cable clutter. A short throw lens with a 0.49 throw ratio offers large projection images for smaller rooms. With HV keystone, corner adjustment, and easy network management, the PJD6552LWS provides flexible setup. Designed with smarter features and extensive connectivity, the networkable short throw PJD6552LWS is ideal for use in education and corporate environments.
방문
  • www.viewsonic.com
  • 표시
    결의안: 1280x800
    렌즈: Optical Zoom:Fixed; Digital Zoom: 0.8X~2.0X
    Size: 50 - 250 inch
    투척 거리: 0.5m - 2.6m
    던지기 비율: 0.49
    Lamp: 210W
    Lamp source life (Nor/SuperEco): 4000/10000
    밝기: 3500 ANSI Lumens
    대비 비율: 22,000:1 (DynamicEco Mode)
    Keystone Correction: Vertical: +30~-30°, (Manual); Horizontal: +30~-30°, (Manual)
    가로 세로 비율: 16:10
    Color Depth: 1.07 Billion Colors (30 bits per color)
    Optical Offset: 110 %+/-5%
  • 오디오
    Speakers: 10 W x 1 Cube
  • 입력 신호
    Video: NTSC: NTSC M (3.58 MHz), 4.43MHz; PAL: PAL (B, D, G, H, I, M, N, 60); SECAM: SECAM (B, D, G, K, K1, L); SD: 480i and 576i; ED: 480p and 576p; HD: 720p,1080i, 1080p
    Frequency: Fh: 15-102KHz; Fv: 23-120Hz
  • 호환성
    PC: 1280x800@ 60Hz (native)
    Mac: 1280x800@ 60Hz (native)
  • 커넥터
    RGB Input: VGA Input : x2
    RGB Output: VGA Output: x1
    Composite Video: RCA-1 x1
    S Video: Mini-Din 4 pin x1
    Component Video: Share with VGA (x2)
    Digital: HDMI 1.4 x1 / HDMI(MHL2.0)x1
    오디오: In: 3.5mm Mini-Mono Jack x2; out: 3.5mm Mini-Mono Jack (x1) Microphone : Share with Audio in 2 connector
    통제: RS232(DB-9)x1; (Wired remote function)
    LAN: RJ45 x1
    USB: Mini USB x1 (For Mouse control & firmware upgrade)
  • 전압: 100~240Vac 50/60Hz (Auto Switching)
    소비.: 330W (Max.)
  • 작동 조건
    온도: 0°~40°C / 32°~104°F
    습도: 10~90%, Non-Condensation
  • 치수
    Physical: 362mm (width) x 103.7mm (height) x 228mm (depth)
  • 체중
    그물: 2.6 kg
  • PACKAGE CONTENTS
    Power Cord, 1.8m / VGA Cable, 1.8m/ Remote Control with Batteries (With Laser) / Cable Cover / Quick Start Guide (one sheet version)/ ViewSonic CD Wizard (w User Manual)
