주요 기능
  • 4,000 ANSI Lumens offering bright images in any environment
  • Larger screen size with lower cost-per-inch
  • Throw ratio match & 1.3x zoom for hassle-free equipment upgrade
  • Energy-efficient 20,000 hours lamp life
  • Comprehensive LAN control for efficient management
  • H/V Keystone adjustment enabling side projection

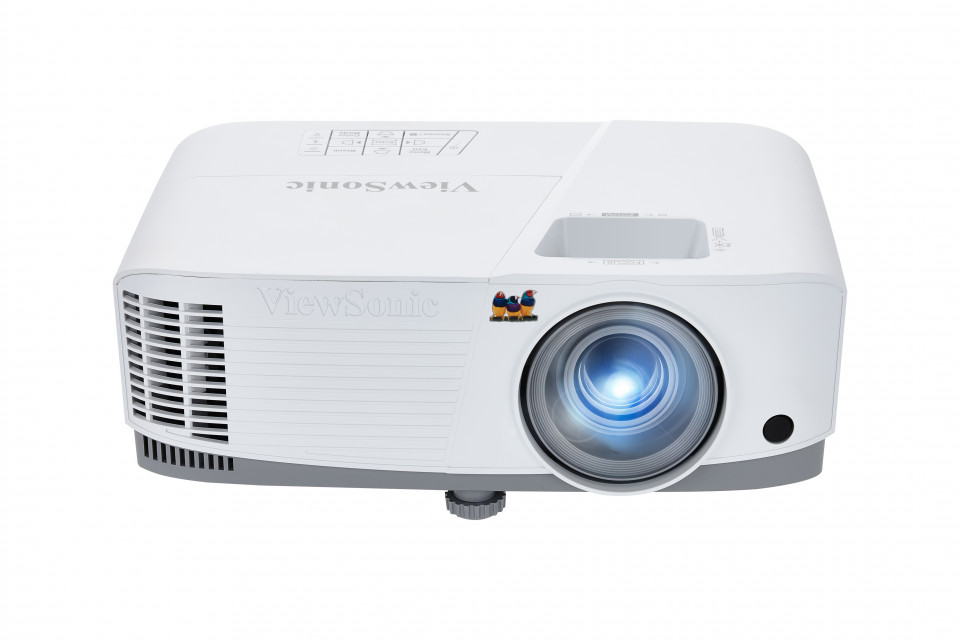

PG707X
제품 설명
ViewSonic PG707X is a practical 4,000 ANSI Lumens XGA business/education projector. With a throw ratio match for mainstream installation conditions and 1.3x optical zoom, it serves as a hassle-free upgrade choice for users to easily get bright and large images with low cost-per-inch in small-to-medium meeting/training rooms. Adding on to that are the energy-efficient 20,000 hours long lamp life and comprehensive LAN control compatibility, making it even more favorable to cost-effective and efficient management.

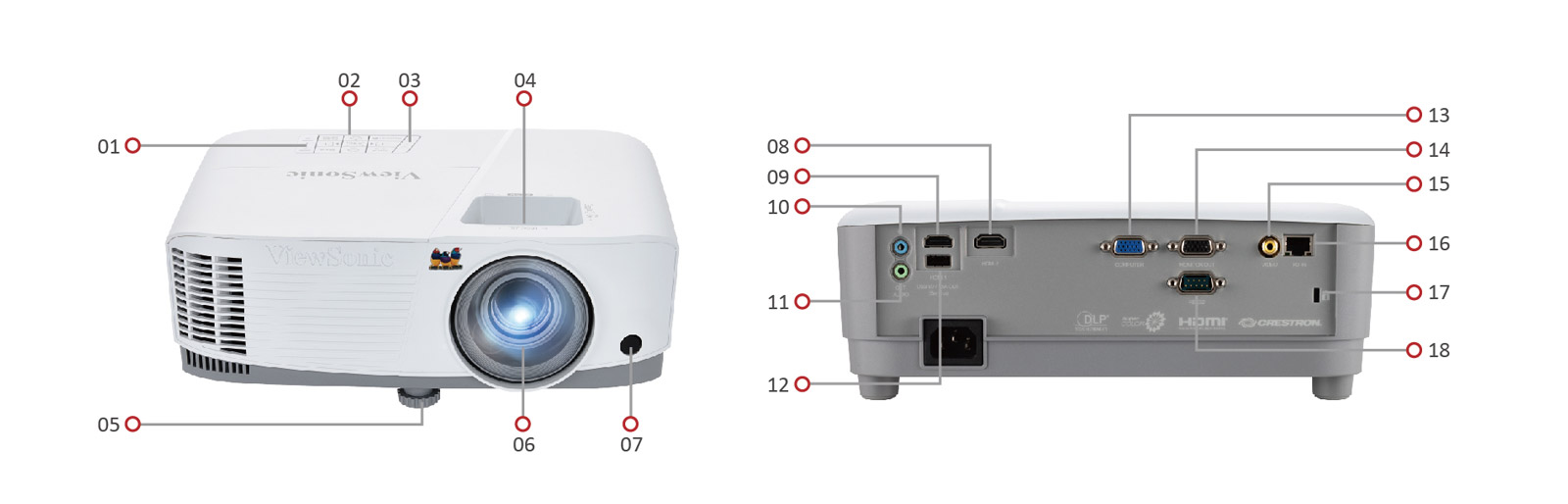

  1. LED Indicator
  2. Keypad
  3. Power Key
  4. Zoom/Focus Ring
  5. Adjustment Foot
  6. Lens
  7. Front IR
  8. HDMI 2
  9. HDMI 1
  10. Audio In
  11. Audio Out
  12. USB Type A(5V/1.5A)
  13. Computer In
  14. Monitor Out
  15. Video
  16. RJ45
  17. Kensington Lock
  18. RS232
방문
  • www.viewsonic.com
  • 사양
    프로젝션 시스템: 0.55" XGA
    기본 해상도: 1024x768
    DMD 유형: DC3
    밝기: 4000 (ANSI Lumens)
    SuperEco 모드의 대비 비율: 22000:1
    Display Color: 1.07 Billion Colors
    광원 유형: Lamp
    Light Source Life (hours) with Normal Mode: 6000
    Light Source Life (hours) with SuperEco Mode: 20000
    램프 와트: 203W
    렌즈: F=2.59-2.87, f=16.88-21.88mm
    투영 간격띄우기: 115%+/-5%
    던지기 비율: 1.51-1.97
    광학 줌: 1.3x
    디지털 줌: 0.8x-2.0x
    이미지 크기: 30"-300"
    투척 거리: 0.9m-12m, (100"@3.1m)
    키스톤: H:+/-40° , V:+/-40°
    가청 소음(정상): 32dB
    청각적 소음(에코) »: 28dB
    입력 지연: 16ms
    해상도 지원: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV 호환성: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    비디오 호환성: NTSC, PAL, SECAM
    수평 주파수: 15K-102KHz
    수직 검색 속도: 23-120Hz
  • 입력
    컴퓨터 위치(구성 요소와 공유): 1
    컴포지트: 1
    HDMI: 2 (HDMI 1.4/ HDCP 1.4)
    오디오 입력(3.5mm): 1
  • 산출량
    감시: 1
    오디오 출력(3.5mm): 1
    스피커: 10W
    USB 타입 A(전원): 1 (5V/1.5A)
  • 통제
    RS232(DB 9핀 수컷): 1
    RJ45 (LAN control): 1
  • 다른이들
    전원 공급 전압: 100-240V+/- 10%, 50/60Hz, (AC in)
    전력 소비: Normal: 280W, Standby: <0.5W
    작동 온도: 0~40℃
    순 중량: 2.35kg
    치수(WxDxH)(조정 풋 포함): 294x218x110mm
    OSD 언어: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
  • 표준 부속품 »
    전원 코드: 1
    VGA 케이블: 1
    원격 제어: 1 , (w/ laser pointer)
    QSG: 1
