주요 기능
  • Laser phosphor technology Ÿ
  • 6,000 ANSI Lumens Ÿ
  • 30,000 hours of maintenance-free projection Ÿ
  • H/V lens shift Ÿ
  • 1.65X optical zoom

LS900WU
제품 설명
Bright and versatile for any professional installation, the ViewSonic LS900WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 6,000 ANSI lumens of advanced high brightness, a 100,000:1 contrast ratio, and up to 30,000 hours of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms and more. Thanks to SuperColor™ technology, content is brought to life with captivating visuals, crisp graphics, and superior colour reproduction. It is also easy to deploy and manage with its wide 1.65x optical zoom adjustment, vertical/horizontal keystone correction, 4 corner adjustment, and a vertical/horizontal lens shift feature – all providing maximum flexibility in even the most challenging installations. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for several mounting options. The ViewSonic LS900WU is the ideal WUXGA laser projector for professional installations and large venues, as well as business and education environments.

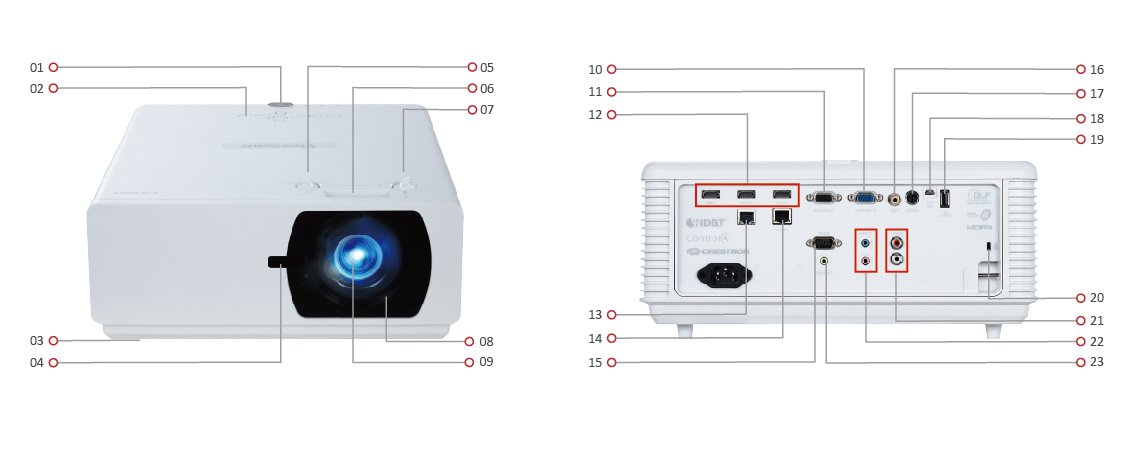

  1. Power key & Top IR
  2. Keypad
  3. Adjustment foot
  4. Front IR
  5. Horizontal lens shift adj.
  6. Optical zoom 1.65X
  7. Vertical lens shift adj.
  8. Focus adjustment
  9. Lens
  10. Monitor out
  11. Computer in
  12. HDMI x 3
  13. LAN (RJ45)
  14. HDBaseT (RJ45)
  15. RS232
  16. Video
  17. 3D sync (VESA)
  18. Mini USB (Service)
  19. USB Type A (5V/1.5A)
  20. Kensington lock
  21. Audio in (R/L)
  22. Audio in / Mic in
  23. Audio out
방문
  • www.viewsonic.com
  • 사양
    프로젝션 시스템: 0.67" WUXGA
    기본 해상도: 1920x1200
    DMD 유형: DC3
    밝기: 6000 ANSI Lumens
    SuperEco 모드의 대비 비율: 3000000:1
    디스플레이 색상: 1.07 Billion Colours‎
    광원 유형: Laser Phosphor system
    광원 수명(정상): 20000
    광원 수명(SuperEco): 30000
    램프 와트: Laser Bank x 4
    렌즈: F=2.45-3.13, f=17.23-27.9mm
    투영 간격띄우기: 130%+/-10%
    던지기 비율: 1.15-1.9
    광학 줌: 1.65x
    디지털 줌: 1.0x-2.0x
    이미지 크기: 50"-300"
    투척 거리: 1.24-7.43m
    (100"@2.48m )
    키스톤: H:+/-30° , V:+/-25°
    렌즈 이동 V. 범위: Yes (+9.2%, -2.4%)
    렌즈 시프트 H. 범위: Yes (+2.5%, -2.5%)
    가청 소음(정상): 34dB
    Audible Noise (Eco): 32dB
    입력 지연: 16ms
    해상도 지원: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV 호환성: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    비디오 호환성: NTSC, PAL, SECAM
    수평 주파수: 15K-102KHz
    수직 검색 속도: 23-120Hz
  • 입력
    컴퓨터 위치(구성 요소와 공유): 1
    컴포지트: 1
    HDMI: 3
    (HDMI 1.4/ HDCP 1.4)
    오디오 입력(3.5mm): 1
    오디오 입력(RCAR/L): 1
    마이크로 입력: 1
    3D VESA(동기): 1
    HDBaseT: 1
    RJ45 입력: 1
    (LAN control)
  • 산출량
    감시: 1
    오디오 출력(3.5mm): 1
    스피커: 5W x 2
    USB 타입 A(전원): 1 (5V / 1.5A)
  • 통제
    RS232(DB 9핀 수컷): 1
    RJ45: 1
    USB 타입 Mini B (서비스): 1
  • 다른이들
    전원 공급 전압: 100-240V+/- 10%, 50/60Hz
    (AC in)
    작동 온도: 0~40℃
    순 중량: 11.0kg
    치수(WxDxH)(조정 풋 포함): 360x440x161mm
    OSD 언어: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Total 22 languages
  • STANDARD ACCESSORY
    전원 코드: 1
    VGA 케이블: 1
    원격 제어: 1
    (w/ laser pointer)
    QSG: 1
