주요 기능
  • Intuitive Interactive Interface and Eye-care Certified Display
  • Synchronous Writing Performance with Dual Pens
  • Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
  • Native Whiteboarding Tool with built-in myViewBoard® App
  • Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App

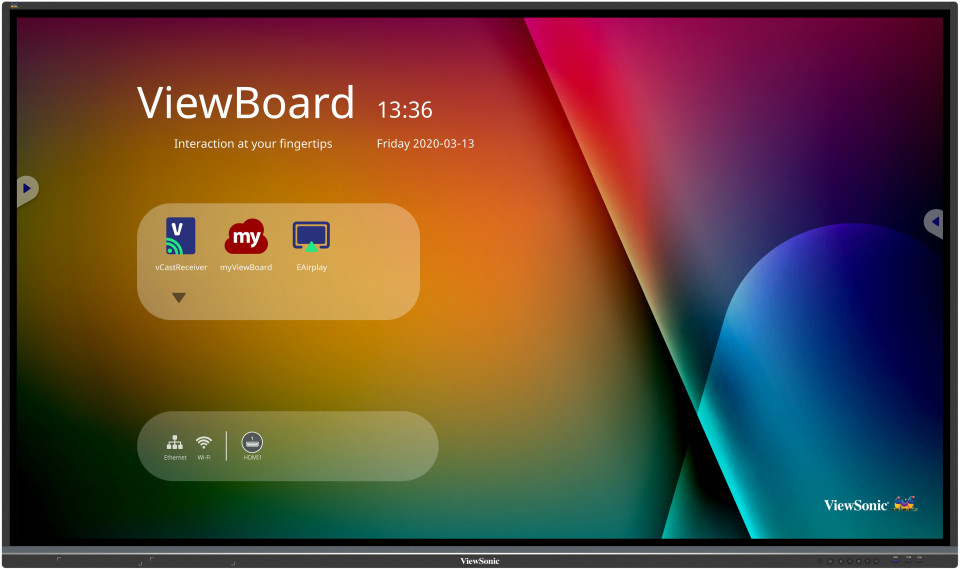

IFP8650-3
제품 설명
For teachers in the modern classroom, the ViewBoard® IFP50 series has the most intuitive interactive interface. It keeps continuous interaction within the first vision area and keeps everything within comfortable reach. Additionally, it is an eye-care certified display with low blue light and flicker-free at all brightness levels. The ViewBoard® IFP50 series further stands out with synchronous writing performance. You can write smoothly, with the pen that serves as an extension of your fingertips, and simultaneously with the equipped dual pens of different colors and thicknesses. The native built-in whiteboarding tool, myViewBoard®, further helps visualize your ideas with ease. The ViewBoard® IFP50 series is further complimented by wireless content sharing. Students can share their screens to the ViewBoard and vice versa with the built-in ViewBoard® Cast app. It is not limited to one-on-one presentation either. Teachers can advance to do group activities with the 4-way split screen display. Whether you’ve experienced good or lackluster classroom interaction in the digital whiteboarding world, the ViewBoard® IFP50 series will now allow you to work effortlessly in the classroom.

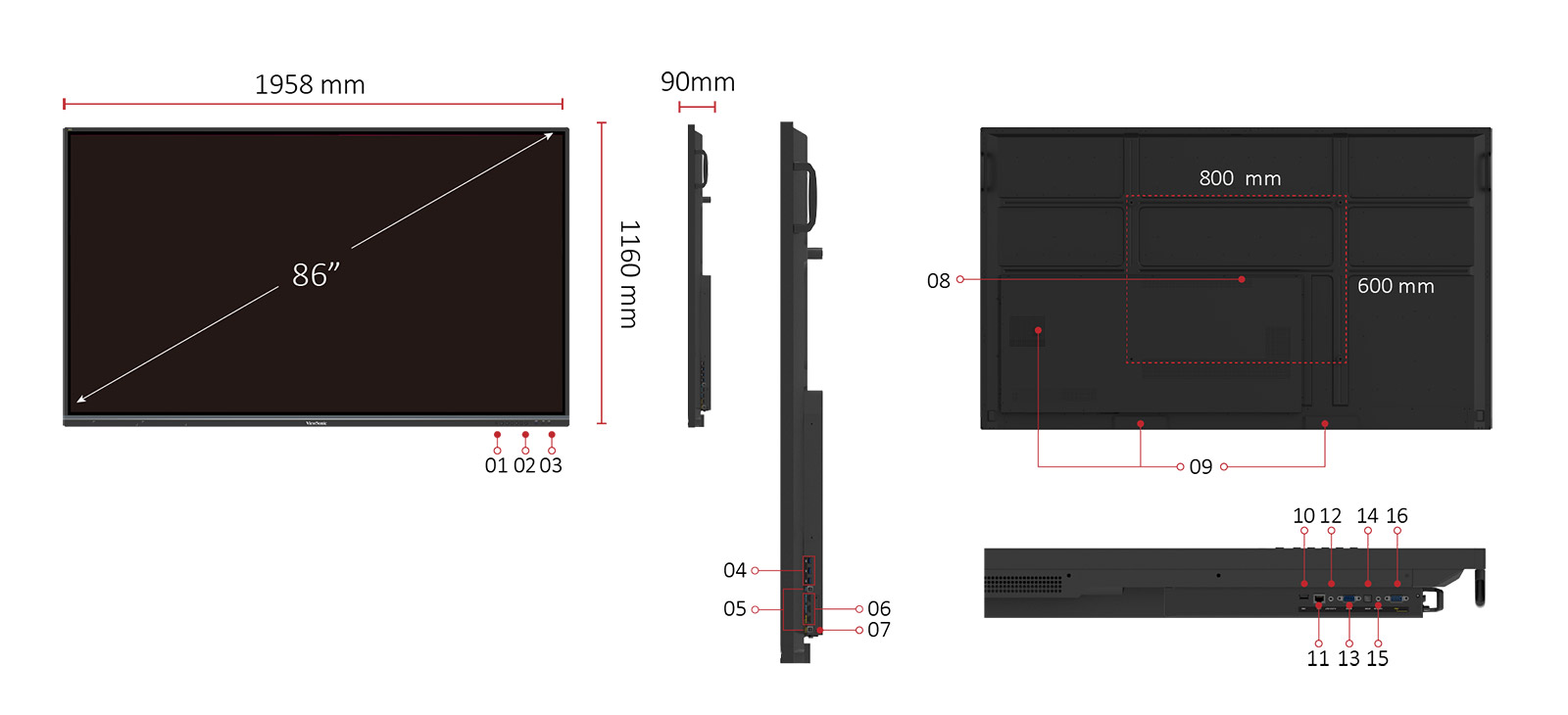

  1. MENU CONTROLS
  2. USB 3.0
  3. USB 2.0
  4. USB 3.0
  5. TOUCH
  6. HDMI IN X 3
  7. Wi-Fi Module Slot
  8. VESA® Wall Mount 800x600mm
  9. INTERNAL SPEAKERS
  10. USB 2.0
  11. LAN
  12. Audio Out
  13. RS232
  14. SPDIF
  15. Audio In
  16. VGA
방문
  • www.viewsonic.com
  • 표시
    패널 크기: 86"
    패널 유형: TFT LCD Module with DLED Backlight.
    표시면적(mm): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
    가로 세로 비율: 16:9
    결의안: UHD 3840x2160 (Pixels)
    Colors: 1.07B colors (10bit)
    밝기: 350 nits (typ.)
    대비 비율: 5000:1 (DCR)
    응답 시간: 8ms
    보기 각도: H = 178, V = 178 typ.
    백라이트 라이프: 30,000 Hours (Min)
    표면 처리: Hardness: 9H
    Anti-glare coating
    베젤: Slim
    오리엔테이션: Landscape
  • 플랫폼
    프로세서: ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz
    RAM: 3GB DDR4
    보관소: 32GB
  • 터치␣
    유형/기술: IR Recognition
    터치 해상도: 32767 x 32767
    터치 포인트: 20 points touch, 10 points writing
  • INPUT
    HDMI: 2.0 x3 (3840x2160 @60Hz)
    RGB / VGA: x1
    오디오: x1 (PC audio in)
    RS232: x1
    OPS: x1 PC Slot (proprietary)
  • OUTPUT
    오디오: x1 (Earphone out)
    SPDIF: 1 (optical)
  • LAN
    RJ45: x1
  • USB
    A형: USB2.0: Front x2, Rear x1 (SmartPort™ for all)
    USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
    B형: x2, for touch
  • 스피커
    10W x 2 + 15W x 1 subwoofers
  • TOP CAMERA PLATE
    Yes
  • COMPATIBILITY
    HDMI: 3840x2160
  • 임베디드 OS
    Android 8
  • 소프트웨어 번들
    기본 주석 소프트웨어: myViewBoard
    프로 주석 소프트웨어: myViewBoard for Windows (Embedded in Windows Slot-in PC)
  • 특수 기능
    All-in-one USB port: Front “SmartPort™ USB” to all channels.
    IFP와 슬롯 인 장치 간의 간단한 LAN 공유: 10M/100M/ for Android
    10M/100M/1000M for slot-in PC
  • 전압: 100-240VAC +/- 10% Wide Range
    소비.: On: 162W(typ.) / Off: <0.5W
  • ERGONOMICS
    벽면 장착(VESA® ): 800 x 600
  • OPERATING CONDITIONS
    온도(θ C): 0°C to 40°C
    습도: 10% ~ 90% RH non-condensing
  • 치수(가로 X 세로 X 세로)
    물리적(인치/mm): 77.1 x 45.7 x 3.5 in / 1958 x 1160 x 90 mm
    포장(inch/mm): 83.6 x 53.0 x 11.0 in / 2123 x 1345 x 280 mm
  • WEIGHT
    순(lb/kg): 150.8 lb / 68.4 kg
    총중량(파운드/kg): 200 lb / 90.7 kg
  • 패키지 내용물
    1. Power cable (3 meters). VSAx1, VSEx2, VSIx4 2. Remote control 3. USB cable (3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable 3M
  • 호환 슬롯 인 PC
    VPC14-WP series
    VPC10-WP series
    VPC15-WP series
    VPC16-WP series
    VPC17-WP series
