주요 기능
  • 20-Point Multi-Touch
  • Floating Pen - Annotation on Demand
  • ViewBoard® Cast Content Sharing Software
  • Built-in ARM Quad-core CPU with 16GB Storage
  • Out-of-Box Collaboration

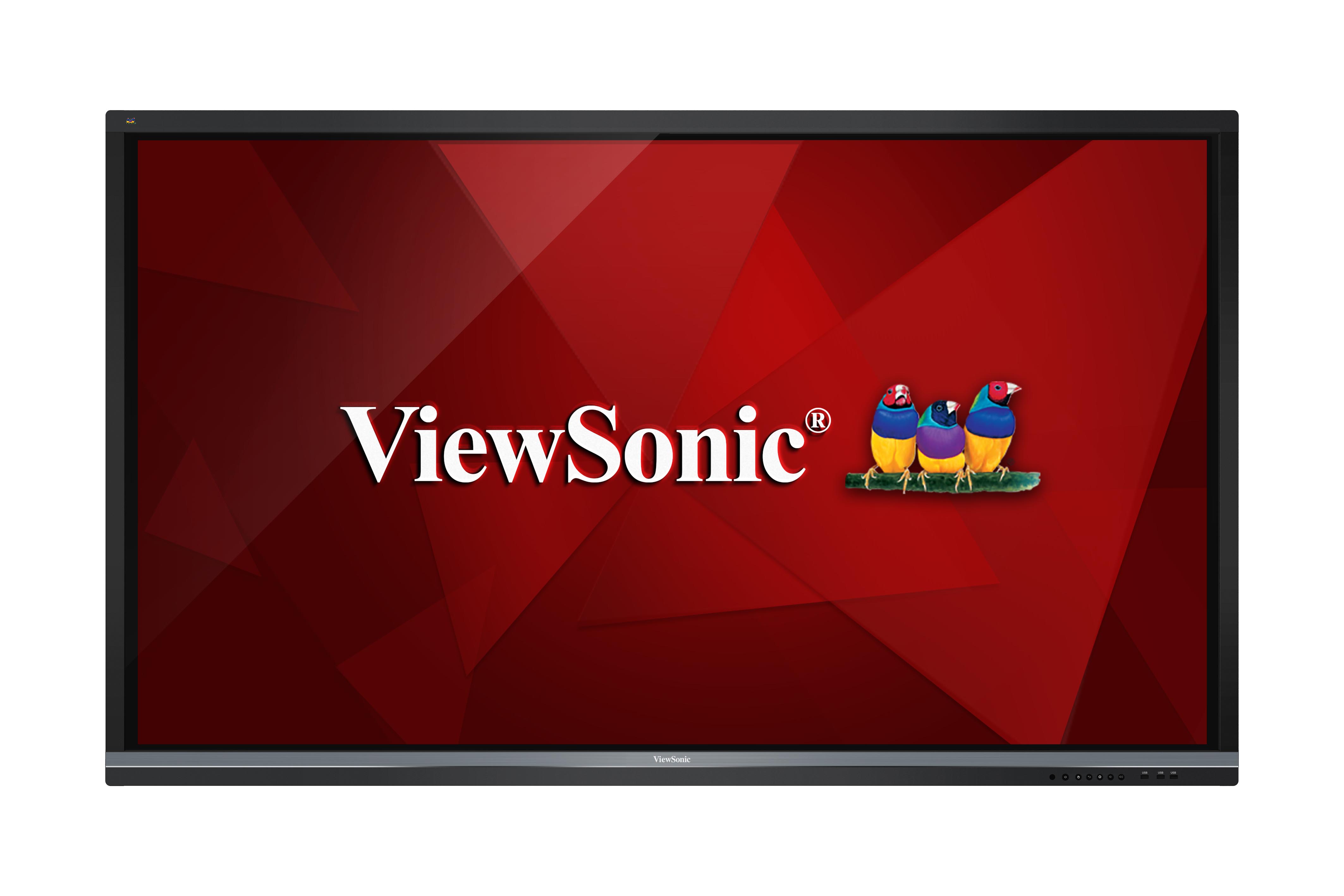

IFP8650
제품 설명
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP8650 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic myViewBoard™ whiteboarding software, this 86” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP8650 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
  1. SPEAKERS
  2. VESA® WALL MOUNT 600x400 mm
  3. MENU CONTROLS
  4. USB 2.0
  5. CVBS IN (AV IN)
  6. SPDIF (COAX OUT)
  7. RS232 IN
  8. AUDIO OUT
  9. RJ45 (LAN)
  10. POWER ON / OFF
  11. AC IN
  12. USB 2.0 & 3.0
  13. HDMI IN
  14. AUDIO IN
  15. USB 2.0 & 3.0
  16. PC SLOT
  17. HDMI OUT
  18. WIFI & BLUETOOTH MODULE SLOT
  19. USB 2.0 (Touch)
  20. DisplayPort
  21. VGA IN
방문
  • www.viewsonic.com
  • LCD PANEL
    패널 크기: 86"
    유형/기술: TFT LCD Module with DLED Backlight
    표시면적(mm): 1895.04 (H) x 1065.96 (V) (85.6” diagonal)
    가로 세로 비율: 16:9
    결의안: 3840 x 2160
    Colors: 1.07B colors (10bit)
    밝기: 350 nits (typ.) 300 nits (min.)
    대비 비율: 1200:1 (typ.)
    응답 시간: 8 ms
    보기 각도: H = 178, V = 178 (typ.)
    Backlight: DLED
    백라이트 라이프: 30,000 Hours Min.
    Hardness: 7H
  • TOUCH
    유형/기술: IR Recognition
    터치 해상도: 32767 x 32767
    터치 포인트: 20 points touch, 10 points writing
    응답 시간: <15ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    Life Time: 80,000hrs
  • INPUT
    HDMI: x 3
    RGB / VGA: x 1
    디스플레이 포트: x 1
    오디오: x 1
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 2
  • OUTPUT
    HDMI: x 1 (for all sources)
    Audio (Earphone out): x 1
    SPDIF: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 4 (front x 2, for both embedded player and slot-in PC)
    3.0 Type A: x 2 (front x 1, for both embedded player and slot-in PC)
    2.0 Type B (For touch): x 2
  • 스피커
    16W x 2
  • BUILT-IN PC
    프로세서: ARM Cortex A53 Quad Core 1.2G Hz CPU
    Graphic: ARM Mali-450 Quad Core
    기억: 2GB DDR3
    보관소: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • COMPATIBILITY
    VGA: Refer to timing table
    HDMI: 3840x2160
    DP: 3840x2160
    CVBS: 480i
  • POWER
    전압: 100-240VAC +/- 10% Wide Range
    소비.: 361W(Typ, without Slot-In PC); 456W(Typ, Including Slot-In PC)
  • ERGONOMICS
    벽면 장착(VESA® ): 800 x 600mm; Screw: M8 x 25mm
  • OPERATING CONDITIONS
    온도(θ C): 32°F to 104°F (0°C to 40°C)
    습도: 10% ~ 90% non-condensing
  • DIMENSIONS (W X H X D)
    Physical w/o Stand (mm / inch): 1988 x 1186 x 100 mm / 78.3 x 46.7 x 3.9 inch
    Packaging (mm / inch): 2211 x 1380 x 280 mm / 87.0 x 53.1 x 11.0 inch
  • WEIGHT
    Net (kg / lb): 78kg / 171.96lbs
    Gross (kg / lb): 105kg / 231.49lbs
  • WHAT'S IN THE BOX?
    VGA cable(5 meters)/Power cable(3 meters) x 4/Remote control/USB cable(5 meters)/Audio cable(5 meters)
    6.AV cable/Touching pen x 3/User manual CD wizard/Quick Start Guide/RS232 adapter/Clamp x 5/Plate/Screw x 3
