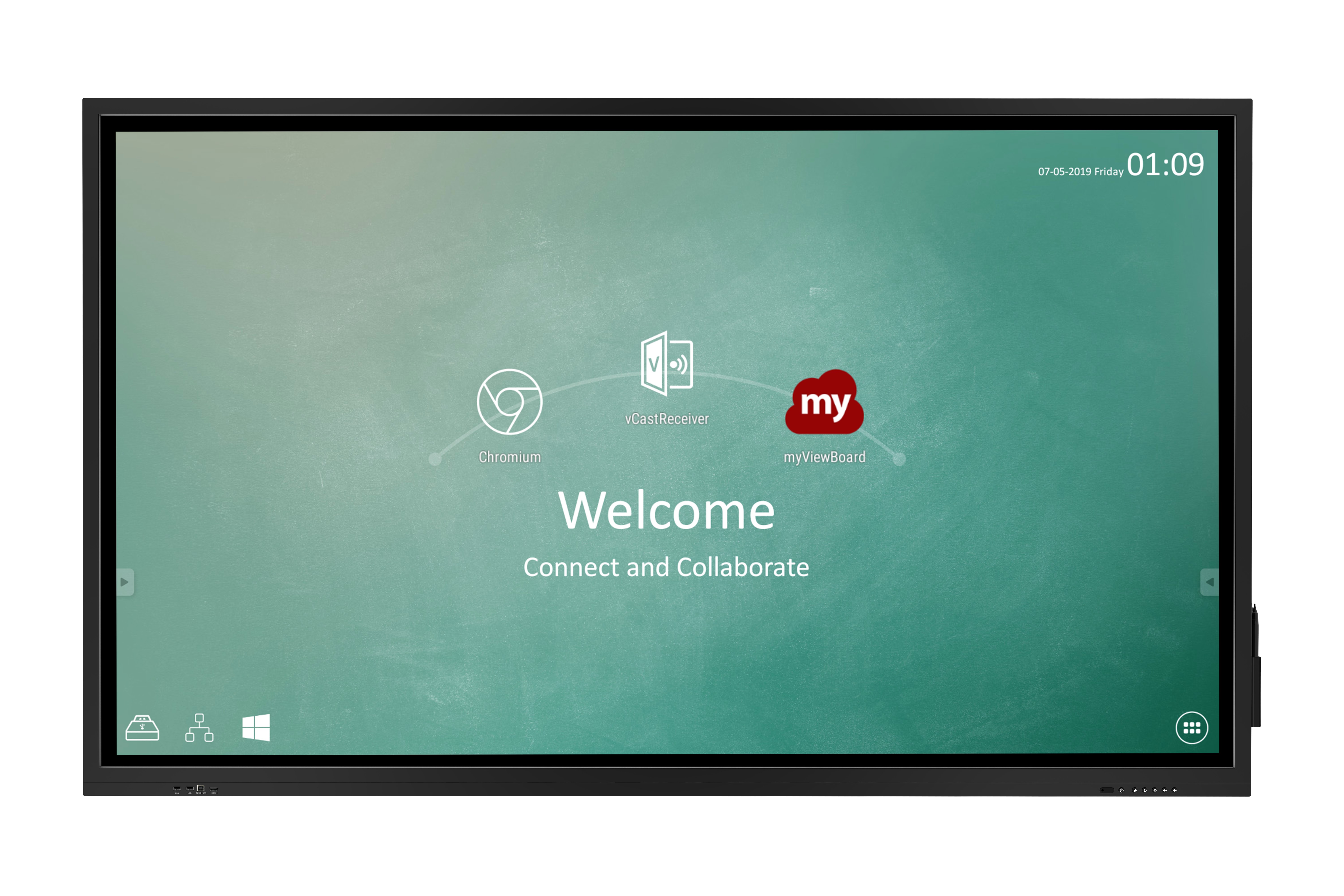

ViewBoard
IFP6530
주요 기능
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- Dual-pen writing with 3mm/8mm diameter pen tips
- Ambient Light Sensor
- ENERGY STAR® certified
제품 설명
The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by native casting including Miracast, Airplay, and Chromecast. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.

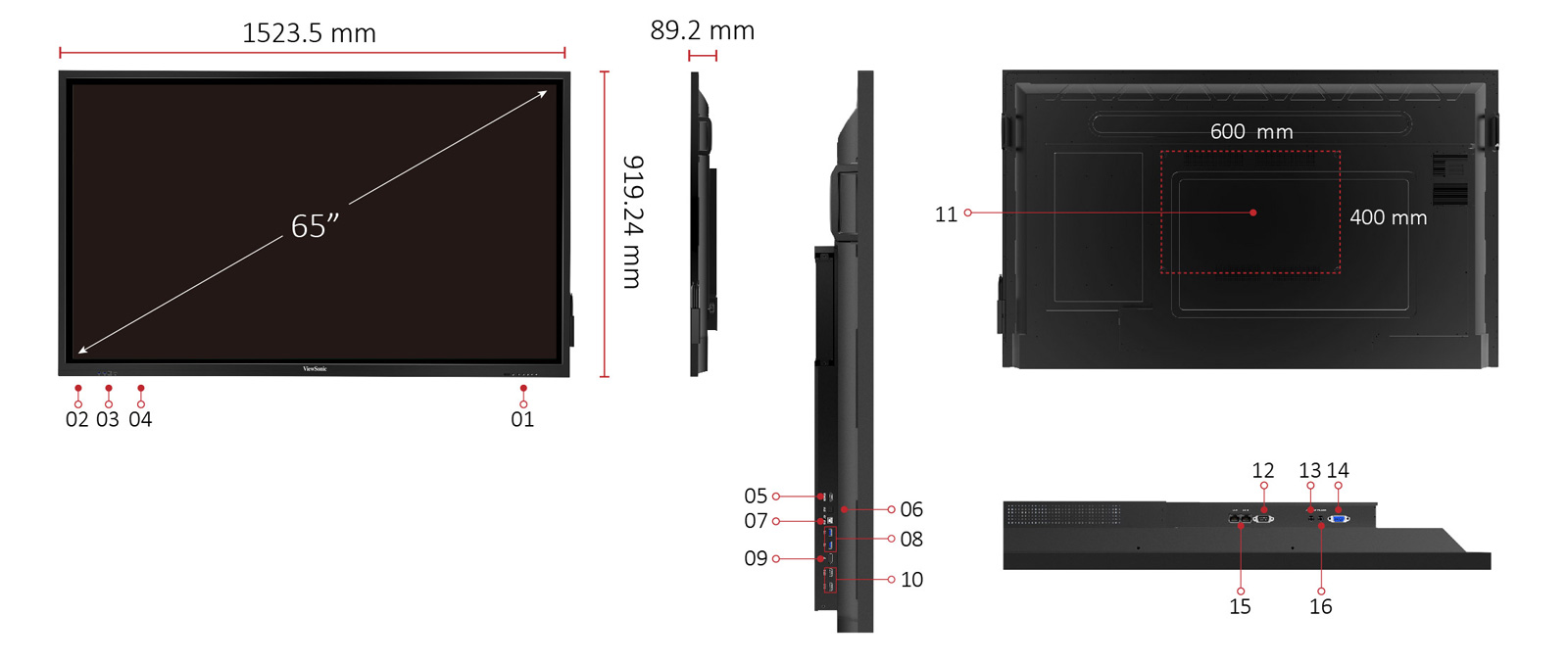

- CONTROLS PANEL
- USB X 2
- TOUCH USB
- HDMI IN
- HDMI OUT
- SPDIF OUT
- TOUCH USB
- USB X 2
- DISPLAY PORT IN
- HDMI IN X 2
- VESA® WALL Mount 600x400 mm
- RS232 IN
- AUDIO OUT
- VGA IN
- LAN X 2
- PC AUDIO IN
방문
- www.viewsonic.com
-
표시
패널 크기: 65" Type/Tech: IPS/V-by-one 표시면적(mm): 1428.48*803.52mm 가로 세로 비율: 16:9 기본 해상도: 4K60hz 색: 10 bits 밝기: 360(Typ.)
320(min.)대비 비율: 1200:1 응답 시간: 6ms(Type) 보기 각도: H = 178, V = 178 typ. 백라이트 라이프: 30,000hr(min) 표면 처리: Hardness: 7H
Costing: AG coating
Thickness: 4mm베젤: 29/29/29/49.7mm(btm.) 오리엔테이션: Landscape -
플랫폼
프로세서: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz RAM: 3GB DDR4 보관소: 16GB -
TOUCH
유형/기술: IR Recognition 터치 해상도: 32767W*32767D 터치 포인트: 20 points
10 writing -
INPUT
HDMI: Front*1
Rear* 2
All ports HDMI2.0RGB / VGA: 1 디스플레이 포트: DP1.2*1 오디오: PC audio in (3.5 mm)*1 RS232: x1 OPS: 1 -
OUTPUT
HDMI: *1 오디오: 3.5mm Earphone Out *1, SPDIF*1 SPDIF: x1 -
LAN
RJ45: *2
10M/100 -
USB
A형: USB2.0 *4 (Front:*2 Rear: *2 ) B형: For touch (Front*1, rear*1)) -
스피커
스피커: 15WX2 -
웹캠 나사 고정 설치를 위한 상단 카메라 플레이트
웹캠 나사 고정 설치를 위한 상단 카메라 플레이트: yes -
COMPATIBILITY
RGB PC/HDMI PC: VGA: 1080p
HDMI: 4KHDMI: 3840x2160 디스플레이 포트: 3840x2160 -
임베디드 OS
임베디드 OS: OS 8.0
Resolution: 1080p -
힘
전압: PB model:
100-240VAC +/- 10% Wide Range소비.: On:129W(Typ.)
Off: <0.5W -
ERGONOMICS
벽면 장착(VESA® ): 600x400 -
OPERATING CONDITIONS
온도(θ C): 0°C to 40°C 습도: 20% ~ 80% RH Non-Condensing(working) -
치수(가로 X 세로 X 세로)
물리적(인치/mm): 1523.5*919.24*89.2(mm)
59.98*36.19*3.51(inch)포장(inch/mm): 1660*1045*245(mm)
65.4*41.1*9.6(inch) -
WEIGHT
순(lb/kg): 97.4lb/44.2kg 총중량(파운드/kg): 126.8lb/57.5kg -
에너지 스타 버전
에너지 스타 버전: YES -
EEI 등급
EEI 등급: A -
패키지 내용물
패키지 내용물:
1. US/EU/UK/AU power cord, no PE bag
2. QSG
3. Compliance statement
4. HDMI cable*1
5. Touch USB cable*1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame
9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws -
호환 슬롯 인 PC
호환 슬롯 인 PC: VPC12 series
