주요 기능
  • Ultra fine touch technology enables real-time response dual-pen writing with a 3mm diameter pen tip
  • 2.1 Stereo sound with a built-in woofer
  • Built-in myViewBoard™ whiteboarding software to collaborate on the go
  • 4-way split screen content sharing with built-in ViewBoard® Cast software
  • SmartPort™ shared front USB ports for internal & external PCs

IFP5550-2
제품 설명
The ViewBoard® IFP50 series embraces ultra fine touch technology to offer fine precision writing. Along with slim IR touch and its optimized integration, the processing time is faster than traditional IR panels. Meanwhile, smooth dual-pen writing with our new, slim 3mm pens enables teachers and students to work efficiently on any detailed tasks that require the accurate use of fine tipped pens during group discussion. On top of that, the ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience, so that even at the edge you can write clearly and thinly. It is also well integrated with myViewBoard™ whiteboarding software to collaborate on the go, and further complimented by ViewBoard® Cast software for 4 way split screen content sharing.

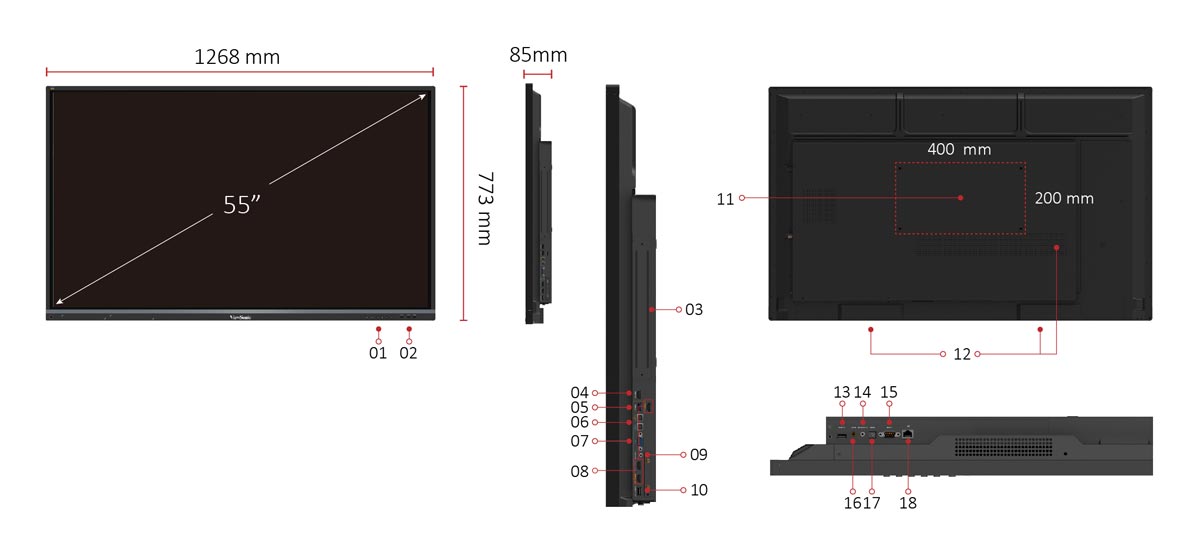

  1. MENU CONTROLS
  2. USB X 3
  3. Intel Unite® Certified OPS Slot
  4. HDMI OUT
  5. USB 3.0
  6. TOUCH X 2
  7. VGA
  8. HDMI IN X 2
  9. AUDIO IN
  10. CAMERA PORT
  11. VESA® WALL Mount 400x200 mm
  12. INTERNAL SPEAKERS
  13. USB 2.0
  14. AUDIO OUT
  15. RS232
  16. AV IN
  17. SPDIF
  18. LAN
방문
  • www.viewsonic.com
  • 표시
    패널 크기: 55"
    Type/Tech: TFT LCD Module with DLED Backlight.
    표시면적(mm): 1209.6(H) x 680.4 (V) (54.64” diagonal)
    가로 세로 비율: 16:9
    기본 해상도: UHD 3840x2160(Pixels)
    색: 1.07B colours (10bit)
    밝기: 350 nits (typ.) 300 nits (min.)
    대비 비율: 5000:1 (DCR)
    응답 시간: 8ms
    보기 각도: H = 178, V = 178 typ.
    백라이트 라이프: 30,000 Hours (Min)
    표면 처리: Anti-Glare
    베젤: Slim
    오리엔테이션: Landscape
  • 플랫폼
    프로세서: ARM Cortex A73 dual-core 1.2GHz
    RAM: 2GB DDR4
    보관소: 16GB
  • TOUCH
    유형/기술: IR Recognition
    터치 해상도: 32767 x 32767
    터치 포인트: 20 points touch, 10 points writing
  • INPUT
    HDMI: 2.0 x3 (3840x2160 @60Hz)
    RGB / VGA: x1
    오디오: x1 (PC audio in)
    CVBS: x1
    RS232: x1
    OPS: x1 PC Slot (proprietary)
  • OUTPUT
    HDMI: x1
    오디오: x1 (Earphone out)
    SPDIF: 1(optical)
    RS232: x1
  • LAN
    RJ45: x1
  • USB
    A형: USB 2.0 x4(including 2 USB port in front)
    USB 3.0 x2(including 1 USB port in front)
    B형: x2, for touch
  • 스피커
    스피커: 10W x 2 + 15W x 1
  • TOP CAMERA PLATE
    Yes
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i
    HDMI: 3840x2160
  • 임베디드 OS
    임베디드 OS: Android 7
  • USB 지원 파일 형식
    USB 지원 파일 형식: Picture -
    BMP, JPEG, PNG

    Video -
    Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
    Container: MPG, MP4, MOV, VOB, DAT, MKV

    Audio -
    Codec: AAC, HEAAC, MPEG1, MPEG2
    Container: AAC, M4A, MP3
  • 소프트웨어 번들
    기본 주석 소프트웨어: myViewBoard / vBoard Lite
    프로 주석 소프트웨어: myViewBoard for windows (Embedded in Windows Slot-in PC)
    터치 피드백이 포함된 무선 프레젠테이션: 뷰보드 캐스트: yes
    ViewSonic 런처: Embedded
  • 특수 기능
    일체형 USB 포트(Windows/Android USB 포트 결합, 더 이상 구분할 필요 없음): Front “SmartPort™ USB” to all channels.
    IFP와 슬롯 인 장치 간의 간단한 LAN 공유: 10M/100M for Android 10M/100M/1000M for slot-in PC
  • 전압: 100-240VAC +/- 10% Wide Range
    소비.: 81W (Typ.)
    < 0.5 W ("Off")
  • ERGONOMICS
    벽면 장착(VESA® ): 400 x 200
  • OPERATING CONDITIONS
    온도(θ C): 0°C to 40°C
    습도: 10% ~ 90% RH non-condensing
  • 치수(가로 X 세로 X 세로)
    물리적(인치/mm): 49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm
    포장(inch/mm): 56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm
  • WEIGHT
    순(lb/kg): 68.34 lb / 31 Kg
    총중량(파운드/kg): 85.98 lb / 39 Kg
  • 에너지 스타 버전
    에너지 스타 버전: ES8.0
  • EEI 등급
    EEI 등급: A+
  • 패키지 내용물
    패키지 내용물: 1. Power cable (3 meters) x 4
    2. Remote control
    3.USB cable (3 meters)
    4. AV cable
    5. Touching pen x 2
    6. Quick Start Guide
    7. RS232 adapter
    8. Clamp x 5
    9. Plate
    10. Screw x 8
    11. HDMI cable
  • 호환 슬롯 인 PC
    호환 슬롯 인 PC: VPC14-WP series
    VPC10-WP series
    VPC15-WP series
    VPC16-WP series
    VPC17-WP series
