주요 기능
  • 20-Point Multi-Touch
  • Floating Pen - Annotation on Demand
  • ViewBoard® Cast Content Sharing Software
  • Built-in ARM Quad-core CPU with 16GB Storage
  • Out-of-Box Collaboration

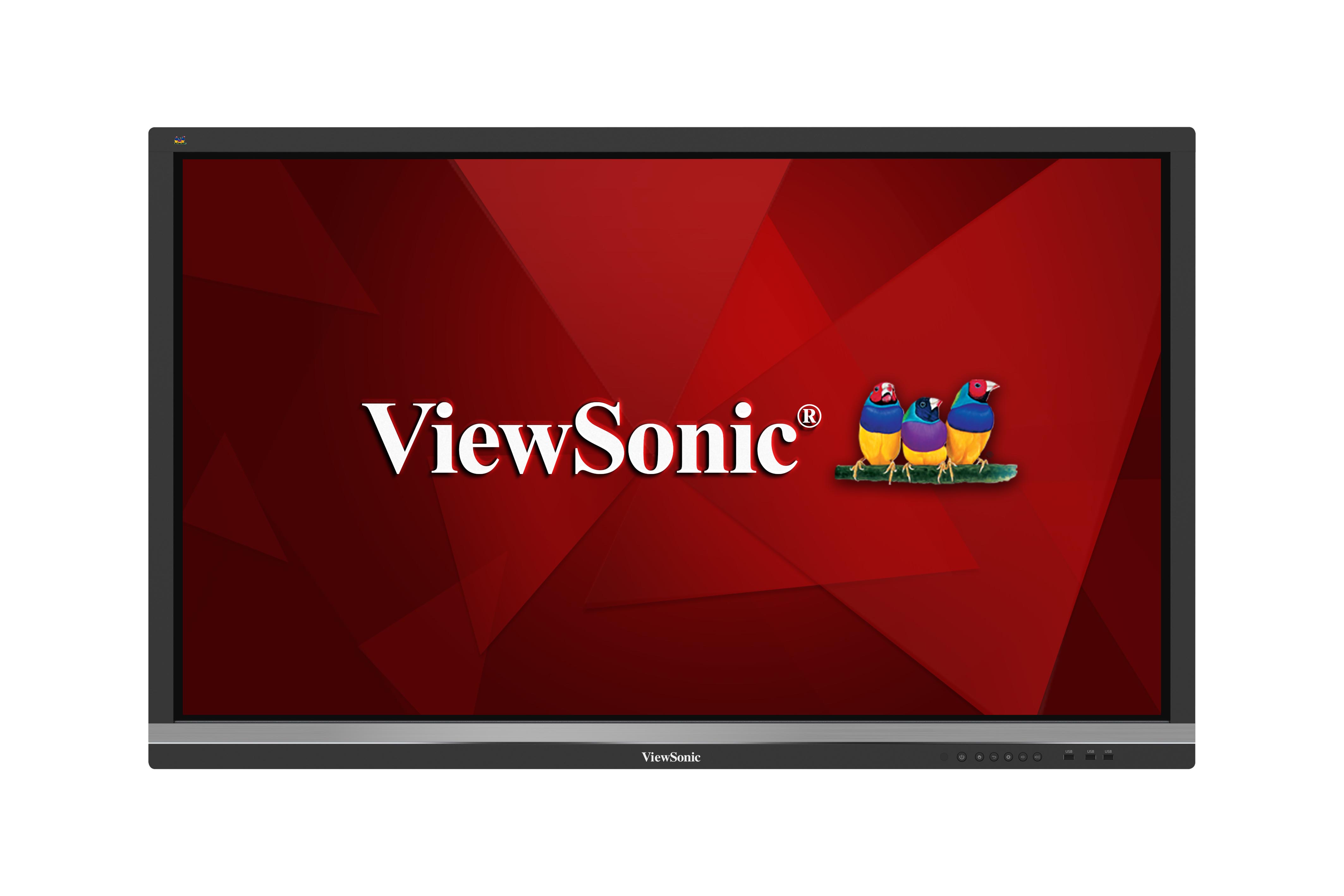

IFP5550
제품 설명
The ViewBoard® IFP5550 is an 55” 4K (3840 x 2160) interactive flat panel display with an open platform design and excellent collaborative capabilities. ViewBoard®’s user experience is highlighted by its intuitive two-finger Floating Pen and exclusive one-touch to Google Drive/OneDrive Save features, which stand out above all else by placing the board’s controls at your fingertips. With open collaboration in mind, ViewBoard® is fit for integration into Google-based environments, offers seamless Windows compatibility, and comes equipped with Mac multi-touch gesture mirroring. Powered by optional Oktopus software, ViewBoard® IFP5550 supports .iwb and .notebook file formats and accesses to 10,000+ ready-to-use lessons on-line. Pairing ViewBoard® IFP5550’s 20-point touch display with pre-installed tools, such as myViewBoard™ whiteboarding software, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously as if they were in the same room. With its built-in Quad Core processor and internal storage, ViewBoard® IFP5550’s computing capabilities are powerful enough to support an array of multimedia applications. The optional slot-in PC with Windows 10 OS offers users extended whotboarding features. Supporting DisplayPort 4K input, HDMI-out, as well as shared USB and LAN ports for the embedded player and optional PC makes it flexible enough to fit a wide range of user scenarios. Its versatile connectivity provides users with hassle-free connection to a multitude of devices and a VESA-compatible design allows for placement on a wall mount or trolley for flexible installation anywhere, no matter the occasion.
  1. SPEAKERS
  2. VESA® WALL Mount 400x400 mm
  3. MENU CONTROLS
  4. USB 2.0
  5. CVBS IN (AV IN)
  6. SPDIF (COAX OUT)
  7. RS232 IN
  8. AUDIO OUT
  9. RJ45 (LAN)
  10. POWER ON / OFF
  11. AC IN
  12. USB 2.0 &3.0
  13. HDMI IN
  14. AUDIO IN
  15. USB 2.0 & 3.0
  16. PC SLOT
  17. HDMI OUT
  18. WIFI & BLUETOOTH MODULE SLOT
  19. USB 2.0 (Touch)
  20. DisplayPort
  21. VGA IN
방문
  • www.viewsonic.com
  • LCD PANEL
    패널 크기: 55"
    유형/기술: TFT LCD Module with DLED Backlight
    표시면적(mm): 1209.6 (H) x 680.4 (V) (54.64” diagonal)
    가로 세로 비율: 16:9
    결의안: 3840 x 2160
    Colors: 1.07B colors (10bit)
    밝기: 350 nits (typ.) 300 nits (min.)
    대비 비율: 1200:1 (typ.)
    응답 시간: 8 ms
    보기 각도: H = 178, V = 178 (typ.)
    Backlight: DLED
    백라이트 라이프: 30,000 Hours Min.
    Hardness: 7H
  • TOUCH
    유형/기술: IR Recognition
    터치 해상도: 32767 x 32767
    터치 포인트: 20 points touch, 10 points writing
    응답 시간: <15ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    Life Time: 80,000hrs
  • INPUT
    HDMI: 1.4a x 2 (3840 x 2160@30Hz)
    2.0 x 1 (3840 x 2160@60Hz)
    RGB / VGA: x 1
    디스플레이 포트: x 1 (3840 x 2160@60Hz)
    오디오: x 1 PC audio (3.5mm)
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 1 (proprietary)
  • OUTPUT
    HDMI: x 1 (1080P@60Hz)
    Audio (Earphone out): x 1
    SPDIF: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 4 (front x 2, for both embedded player and slot-in PC)
    3.0 Type A: x 2 (front x 1, for both embedded player and slot-in PC)
    2.0 Type B (For touch): x 2
  • 스피커
    16W x 2
  • BUILT-IN PC
    프로세서: ARM Cortex A53 Quad Core 1.2G Hz CPU
    Graphic: ARM Mali-450 Quad Core
    기억: 2GB DDR3
    보관소: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • COMPATIBILITY
    VGA: Refer to timing table
    HDMI: 3840x2160
    DP: 3840x2160
    CVBS: 480i
  • POWER
    전압: 100-240VAC +/- 10% Wide Range
    소비.: 129W(Typ, without Slot-In PC); 224W(Typ, Including Slot-In PC)
  • ERGONOMICS
    벽면 장착(VESA® ): 400 x 400mm; Screw: M8 x 25mm
  • OPERATING CONDITIONS
    온도(θ C): 32°F to 104°F (0°C to 40°C)
    습도: 10% ~ 90% non-condensing
  • WEIGHT
    Net (kg / lb): 34kg / 74.96lbs
    Gross (kg / lb): 46kg / 101.41lbs
  • WHAT'S IN THE BOX?
    1.VGA cable(5 meters)
    2.Power cable(3 meters) x 4
    3.Remote control
    4.USB cable(5 meters)
    5.Audio cable(5 meters)
    6.AV cable
    7.Touching pen x 3
    8.User manual CD wizard
    9.Quick Start Guide
    10.RS232 adapter
    11.Clamp x 5
    12.Plate
    13.Screw x 3
