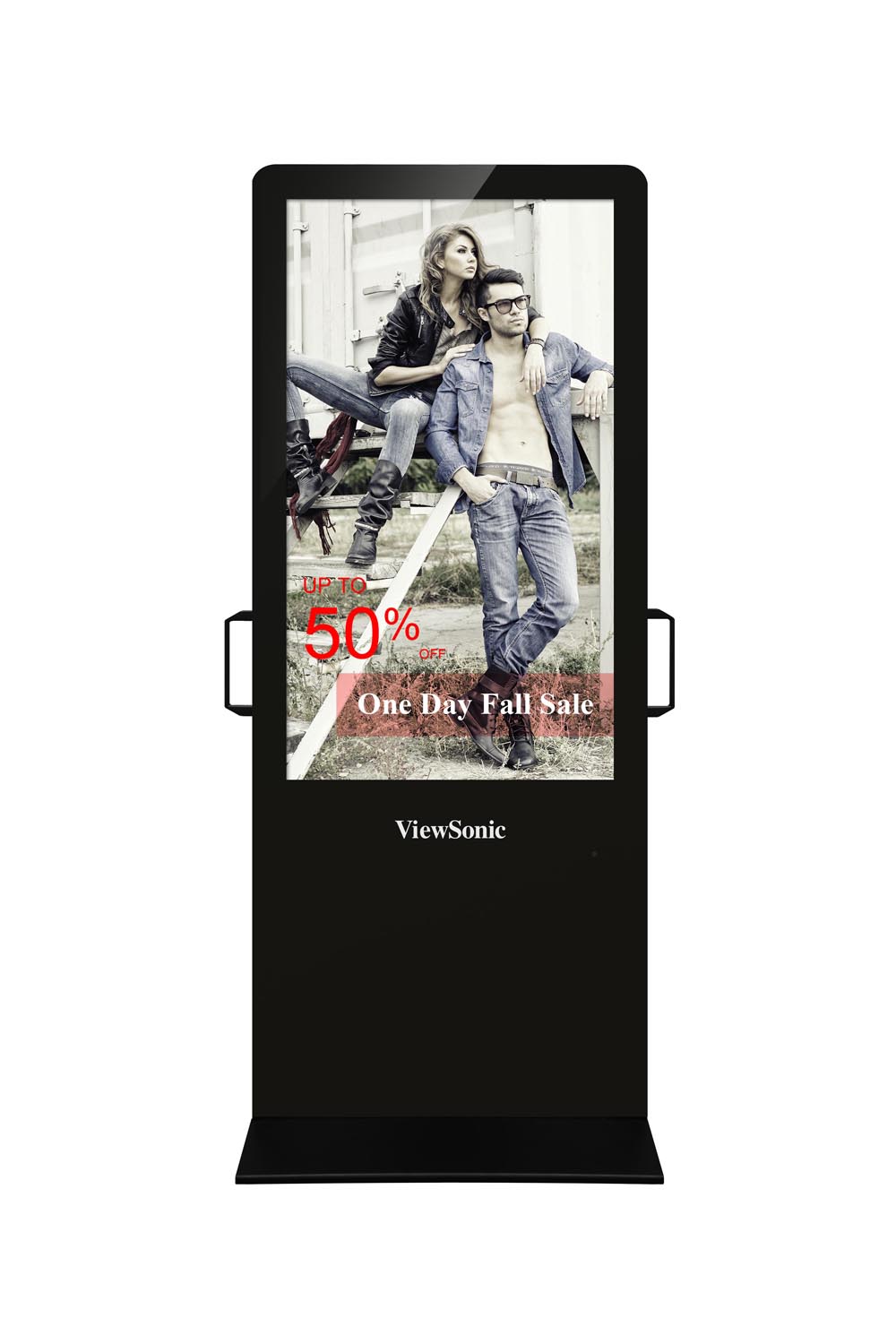

ViewSonic EP5012-TL 50" All-in-One 4-Point Touch LED ePoster

표시

패널 크기:	50"
Type/Tech:	TFT LCD Module with LED Backlight
표시면적(mm):	1095.84 (H) x 616.41 (V)
가로 세로 비율:	9:16
기본 해상도:	1080x1920
Colors:	16.7M
밝기:	400 nits (typ.)
대비 비율:	5000:1 (typ.)
응답 시간:	6.5ms
보기 각도:	H = 176, V = 176 typ.
백라이트 라이프:	30,000 Hours Typ.
표면 처리:	Hard coating (7H)
오리엔테이션:	Portrait

TOUCH

유형/기술: IR

터치 해상도: 32768 x 32768

터치 포인트: 4 point for gesture, 2 point for writing
보관소

on-board flash: 8GB
INPUT

HDMI: x1

RGB / VGA: x1

오디오: x1 PC audio(3.5 mm)
LAN

RJ45: x1
USB

A형: x2
스피커

6W x 2
COMPATIBILITY

RGB PC/HDMI PC: Refer to timing table

HDMI: Refer to timing table

CONTROLS

Physical- Top OSD:

SYSTEM SETTINGS: OSD Language, Screen Mode, Screen Resolution, Clock Display, USB, Scrolling Text, Sync Settings, Reset
SYSTEM CONTROL: Work Mode, Storage Priority
NETWORK SETTING: Server Settings, Get IP Type, Machine ID, MAC Address
DATE AND TIME: Date, Time, Startup Sync Time Setting, Dayligh Saving Time, Time Zone, Sync Time Now
ON/OFF TIMER: Timer Mode, Control Mode
SPECIAL SETTINGS: Volume, Source
FILE MANAGEMENT: Format
SOURCE: OSD Language, Reset.
IMAGE: Brightness, Contrast, Saturation, Color Temp., Auto Adjust, H Position, V Position, Phase, Clock

Multimedia:

JPG, BMP, PNG, MPG, AVI, WMV, MOV, MP3, GIF, JPEG, MKV, FLV, RM, RMVB, TS, TP

소프트웨어 번들

ePoster Manager Express Plus
힘

전압: 100-240VAC +/- 10% 50/60Hz Wide Range

소비.: "ON": Typ. : 110+- 1W
“Power Saving”: VGA: 12+-1 W; HDMI: 12+-1 W
"Off"(Suspend): 10+-1W
OPERATING CONDITIONS

Temperature (º C): 0°C to 50°C

습도: 20% ~ 90% non-condensing
DIMENSIONS
(W X H X D)

물리적(인치/mm): 29.72x72.83x17.72 / 755x1850x450

포장(inch/mm): 35.35x79.45x22.52 / 897.5x2018x572
WEIGHT

순(lb/kg): 193.12 / 87.6

총중량(파운드/kg): 217.38 / 89.6

패키지 내용물

1. EP5012-TL eposter 2. Power Core 3. Y power cable 4. Remote control with battery 5. Quick Start Guide 6. User Guide CD 7. Key 8. Hexagon wrench(to remove handles) 9. Black labels(to cover holes after removing handles)
*Actual content may differ from market to market

유형/기술:	IR
터치 해상도:	32768 x 32768
터치 포인트:	4 point for gesture, 2 point for writing

RGB PC/HDMI PC:	Refer to timing table
HDMI:	Refer to timing table

전압:	100-240VAC +/- 10% 50/60Hz Wide Range
소비.:	"ON": Typ. : 110+- 1W “Power Saving”: VGA: 12+-1 W; HDMI: 12+-1 W "Off"(Suspend): 10+-1W

Temperature (º C):	0°C to 50°C
습도:	20% ~ 90% non-condensing

물리적(인치/mm):	29.72x72.83x17.72 / 755x1850x450
포장(inch/mm):	35.35x79.45x22.52 / 897.5x2018x572

순(lb/kg):	193.12 / 87.6
총중량(파운드/kg):	217.38 / 89.6

HDMI:	x1
RGB / VGA:	x1
오디오:	x1 PC audio(3.5 mm)
