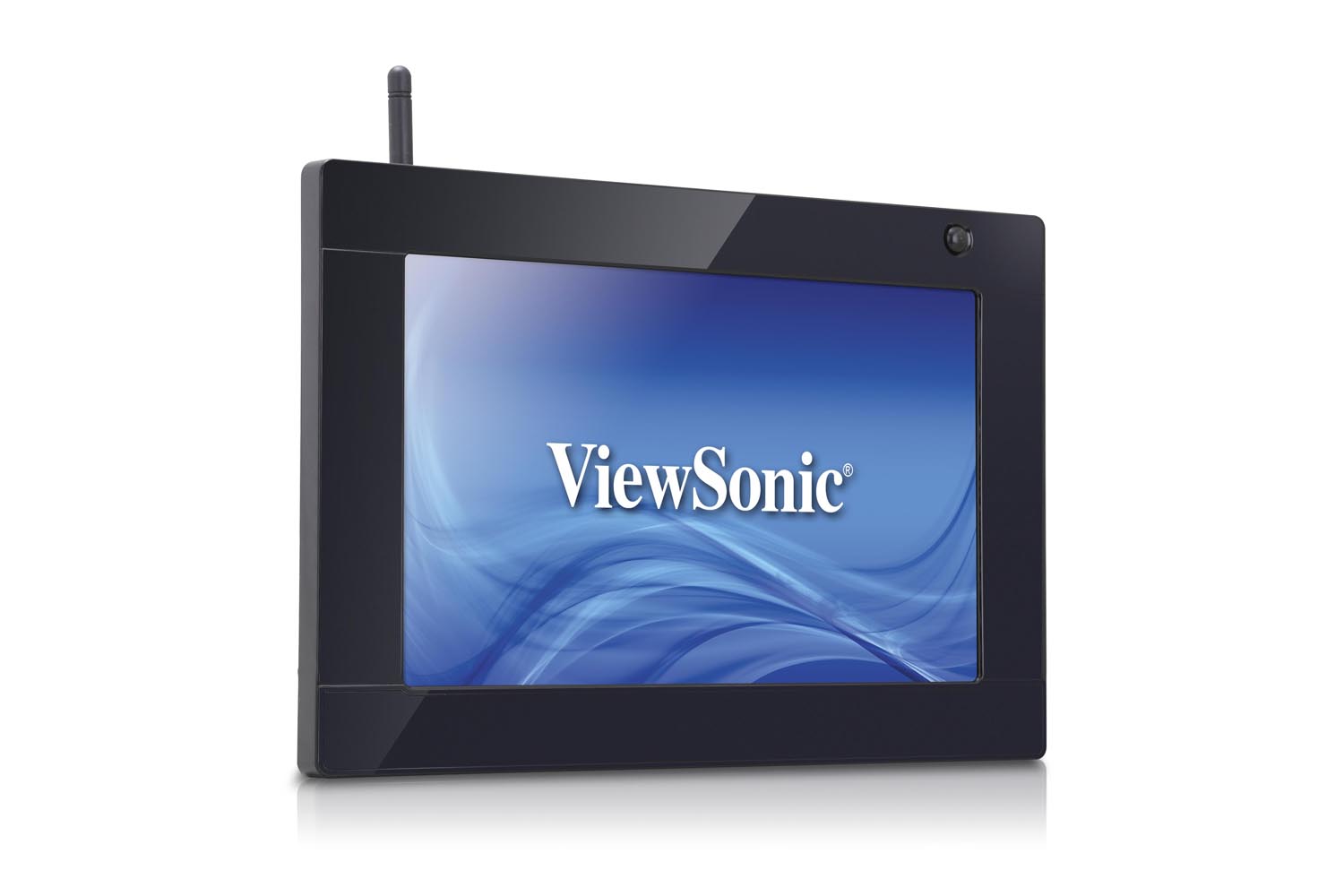

ViewSonic EP1031R 10.1" Multimedia Digital Poster

표시

패널 크기:	10.1"
Type/Tech:	TFT LCD Module with LED Backlight
표시면적(mm):	219.6(H) x 131.76(H)
가로 세로 비율:	16:9
기본 해상도:	800 x 480
Colors:	16.7M
밝기:	300 nits (typ.)
대비 비율:	500:1 Typ.
응답 시간:	30ms
보기 각도:	H = 130, V = 110 typ.
표면 처리:	AG coating
오리엔테이션:	Landscape / Portrait

보관소

on-board flash: 4GB
INPUT

SD/SDHC: x1, (for expand storage)
OUTPUT

HDMI: x1

오디오: x1 Earphone Out
LAN

RJ45: x1
USB

A형: x2, (for content loading, F/W upgrade, Key board, Mouse)

B형: x1, (for F/W troubleshooting)
스피커

2W x 2
COMPATIBILITY

HDMI: 720p@50/60, 1080i@50/60, 1080p@50/60
CONTROLS

Physical- Top OSD: x6 Touch buttons

Multimedia: MPEG-1, MPEG-2, MPEG-4, VC-1/WMV9, JPEG, PNG, MPEG L2 audio, MP3, W3C HTML5, W3C SMIL 3.0 instructions
소프트웨어 번들

Signage Manager Express
힘

전압: 100-240VAC +/- 10% 50/60Hz Wide Range

소비.: 12W (max.)
< 0.5 W ("Off")
ERGONOMICS

Wall Mount (VESA® ): 75 x 75
OPERATING CONDITIONS

Temperature (º C): 0°C to 40°C

습도: 5% ~ 85% non-condensing
DIMENSIONS
(W X H X D)

물리적(인치/mm): 10.94 x 7.32 x 1.57 / 278 x 186 x 40

포장(inch/mm): 12.60 x 10.04 x 3.54 / 320 x 255 x 90
WEIGHT

순(lb/kg): 1.72 / 0.78

총중량(파운드/kg): 3.42 / 1.55
패키지 내용물

1. EP1031R ePoster 2. AC Adapter 3. Ethernet Cable 4. Standard 3.5mm to RCA AC cable 5. Display stand and screws 6. Hardware Quick Start Guide76. Software Quick Start Guide 8. Documentation CD

A형:	x2, (for content loading, F/W upgrade, Key board, Mouse)
B형:	x1, (for F/W troubleshooting)

Physical- Top OSD:	x6 Touch buttons
Multimedia:	MPEG-1, MPEG-2, MPEG-4, VC-1/WMV9, JPEG, PNG, MPEG L2 audio, MP3, W3C HTML5, W3C SMIL 3.0 instructions

전압:	100-240VAC +/- 10% 50/60Hz Wide Range
소비.:	12W (max.) < 0.5 W ("Off")

Temperature (º C):	0°C to 40°C
습도:	5% ~ 85% non-condensing

물리적(인치/mm):	10.94 x 7.32 x 1.57 / 278 x 186 x 40
포장(inch/mm):	12.60 x 10.04 x 3.54 / 320 x 255 x 90

HDMI:	x1
오디오:	x1 Earphone Out

순(lb/kg):	1.72 / 0.78
총중량(파운드/kg):	3.42 / 1.55
