비디오 벽

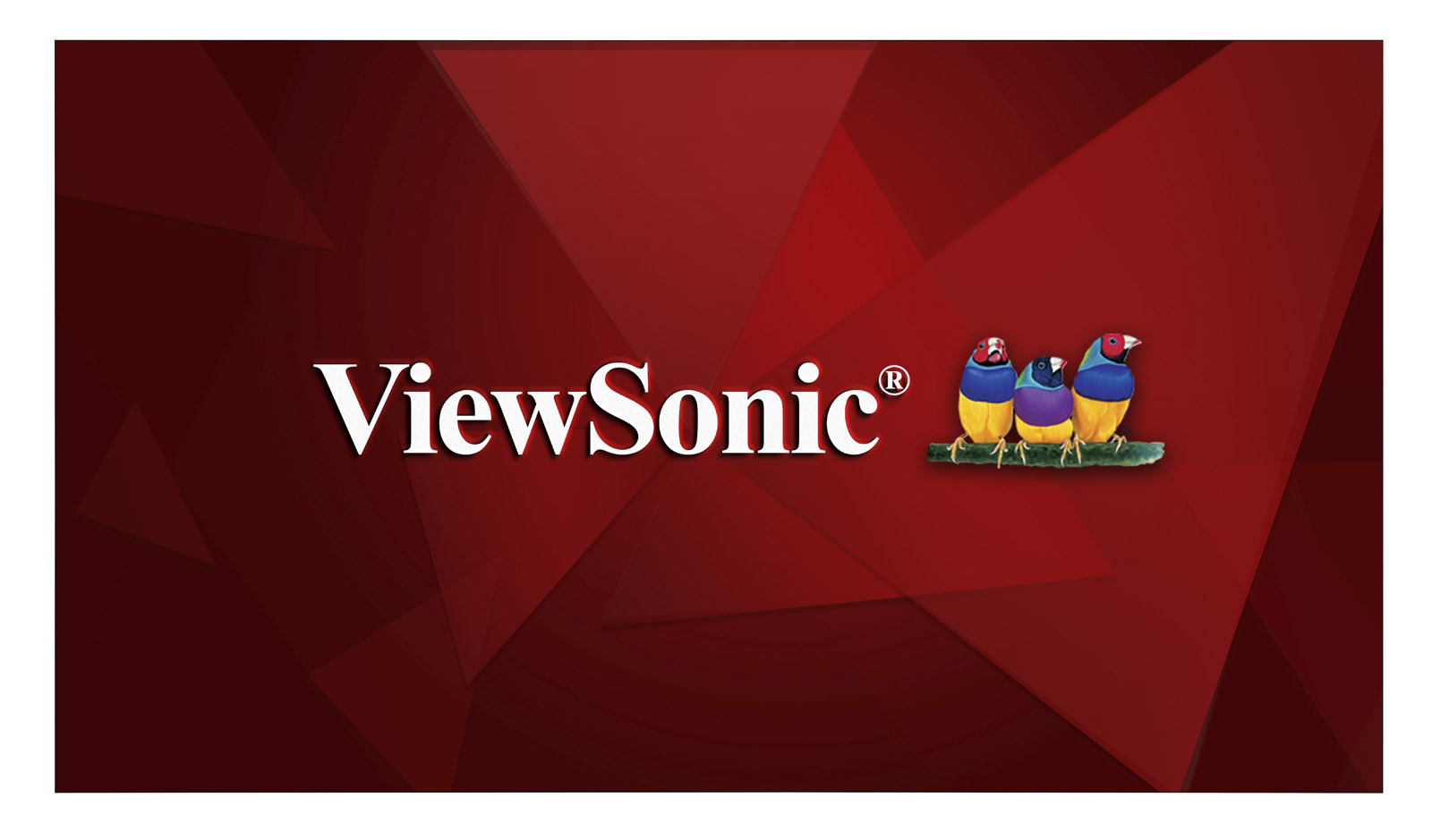

CDX5560
주요 기능
- Ultra-narrow Bezel
- Full Color Calibration
- 10x10 daisy-chain support with 4K DisplayPort or DVI
- vController software
- Supports HDMI CEC pass-through
제품 설명
The ViewSonic CDX5560 is a 55" durable commercial display with an ultra-narrow bezel, optimized for multi-panel video wall applications and messaging 24 hours a day, 7 days a week. The CDX5560’s ultra-narrow bezel adds up to an edge-to-edge bezel width of only 1.8 mm between combined displays when daisy-chained for a seamless, high-impact video wall. Tiling support with VGA allows for a setup of up to 5 x 5 while DVI/DisplayPort supports up to 10 x 10 when daisy-chaining displays together. With features including color calibration support, Full HD 1080p resolution, 500-nit high brightness, 20W stereo speakers, and a IPS panel for 178-degree wide viewing angles, the CDX5560 delivers sharp, vivid images with incredible sound for superior multimedia performance.
방문
- www.viewsonic.com
-
LCD PANEL
패널 크기: 55" 유형/기술: TFT LCD Module with DLED Backlight 표시면적(mm): 1209.6 (H) x 680.4 (V) 가로 세로 비율: 16:9 결의안: 1920 x 1080 Colors: 1.07B colors 밝기: 500 nits(typ.) 대비 비율: 1200:1 (typ.) 응답 시간: 8 ms 보기 각도: H = 178, V = 178 (typ.) Backlight: DLED 백라이트 라이프: 60,000 Hours Min. Hardness: 7H -
INPUT
HDMI: x 2 (V1.4) RGB / VGA: x 1 디스플레이 포트: x 1 (V1.2) DVI: x 1 오디오: x 1 Audio (RCA): x 1 CVBS (AV): x 1 (Share with component Y) YPbPr: x 1 RS232: x 1 PC Slot: x 1 (Intel OPS Standard) IR: x 1 -
OUTPUT
HDMI: x 1 (for one of HDMI1/2/3) 디스플레이 포트: x 1 (V1.2) DVI: x 1 Audio (Earphone out): x 1 스피커: x 1 RS232: x 1 IR: x 1 -
LAN
RJ45: x 2 -
USB
2.0 Type A: x 1 -
스피커
10W x 2 -
COMPATIBILITY
VGA: Refer to timing table DVI: 480i, 480p,720p,1080i,1080p 디스플레이 포트: 480i, 480p,720p,1080i,1080p, 4k2k@30Hz HDMI: 480i, 480p,720p,1080i,1080p, 4k2k@30Hz CVBS: 480i YPbPr: 480i, 480p,720p, 1080i, 1080p -
POWER
전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz 소비.: 270 W (Normal), 400 W (Max.) -
ERGONOMICS
벽면 장착(VESA® ): 400 x 400 mm; Screw: M6 x (10 + X) mm (X=Thickness of wall mount plate) -
OPERATING CONDITIONS
온도(θ C): 5 – 40 degC (Landscape), 5 – 35 degC (Portrait) 습도: 20% ~ 80% without condensation -
DIMENSIONS (W X H X D)
Physical (mm / inch): 1211.4 x 724.6 x 400 mm / 47.69 x 28.53 x 15.75 in. Physical w/o Stand (mm / inch): 1211.4 x 682.2 x 98.50 mm/ 47.69 x 26.86 x 3.88 in. Packaging (mm / inch): 1475 x 983 x 375 mm / 58.07 x 38.70 x 14.76 in. -
WEIGHT
Net (kg / lb): 26.65 kg / 58.75lbs Net w/o Stand (kg / lb): 24.35 kg / 53.68lbs Gross (kg / lb): 36.80 kg / 81.13lbs -
WHAT'S IN THE BOX?
1. CDX5560 LCD Monitor
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. RS232 daisy chain cable
9. IR sensor cable
10. Edge Alignment Kit-1
11. Edge Alignment Kit-2
12. Thumb Screw
