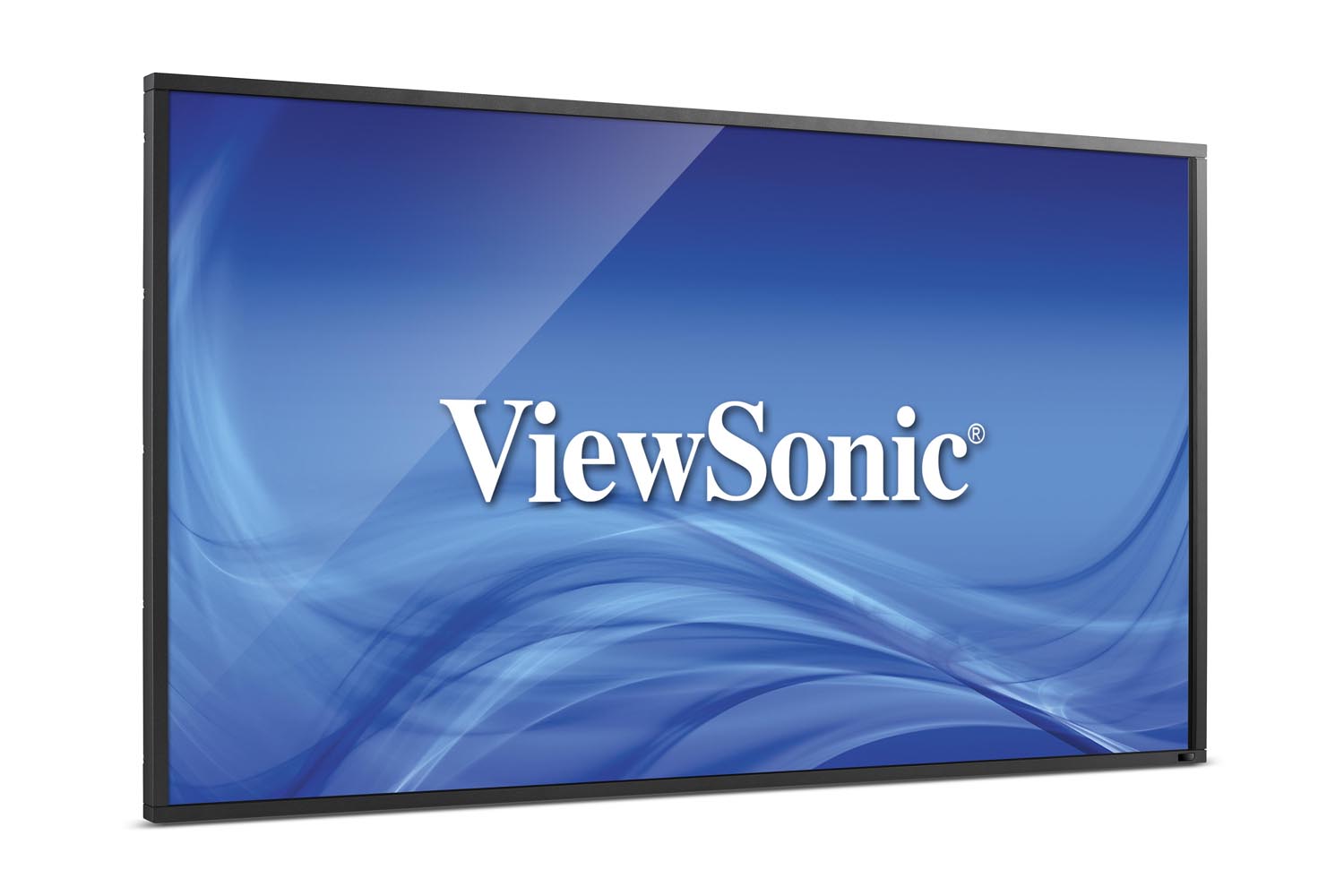

ViewSonic CDP5560-L 55" Narrow bezel commercial LED display

표시

패널 크기:	55"
Type/Tech:	TFT LCD Module with LED Backlight
표시면적(mm):	1209.6(H) x 680.4 (V) (55” diagonal)
가로 세로 비율:	16:9
기본 해상도:	1920 x 1080
Colors:	1.07 Billion
밝기:	450 nits (typ.)
대비 비율:	1300:1 Typ.
응답 시간:	12ms
보기 각도:	H = 178, V = 178 typ.
백라이트 라이프:	30,000 Hours Typ.
표면 처리:	Hard coating (3H)
오리엔테이션:	Landscape / Portrait

INPUT

HDMI: x1

RGB / VGA: x1

디스플레이 포트: x1

DVI: x1

오디오: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R)

CVBS: x1

YPbPr: x1

RS232: x 1

IR 패스스루: x1
OUTPUT

DVI: x1

오디오: x1 Shared RCA audio (L+R)

RS232: x1

IR 패스스루: x1
LAN

RJ45: x1
스피커

10Wx2

COMPATIBILITY

RGB PC/HDMI PC:	Refer to timing table
CVBS:	480i,
YPbPr:	480i, 480p,720p,1080i,1080p
HDMI:	480i, 480p,720p,1080i,1080p
디스플레이 포트:	480i, 480p,720p,1080i,1080p
DVI:	480i, 480p,720p,1080i,1080p

CONTROLS

Physical- Top OSD:

POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
Brightness, Contrast, Sharpness,Black Level, Tint, Color, Color Temperature, Gamma Selection, Noise Reduction, Film Mode, Picture Reset
Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom Zoom, Input Resolution, Screen Reset
Balance, Treble, Bass, Audio Reset
PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset
Off Timer, Schedule, Data and Time, Configuration 1 Reset
Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, Configuration 2 Reset.
Power Save, Heat Status, Screen Saver, Side Border Color, Configuration 3 Reset
Input Change, Terminal Setting, Scan Conversion, Color System, Scan Mode, Serial Control, Lan Setting, APM, Advanced Option Reset, Factory Reset

POWER

전압: 100-240VAC +/- 10% 50/60Hz Wide Range

소비.: 130W (typ), 190W (max)
< 0.5 W ("Off")
ERGONOMICS

Wall Mount (VESA® ): 400 x 400
OPERATING CONDITIONS

Temperature (º C): 0°C to 40°C

습도: 20% ~ 80% non-condensing

DIMENSIONS
(W X H X D)

Bezel width (B2B):	31.6 mm
물리적(인치/mm):	49.0x29.8x15.7 / 1247 x 758.2 x 400 (w/ Stand) 49.0x28.2x2.7 / 1247 x 717.8 x 70 (w/o Stand)
포장(inch/mm):	57.8x38.3x10.6 / 1469 x 975x 269

WEIGHT

순(lb/kg): 66.66 / 30.3 (w/o stand)
71.72 / 32.6 (w/ Stand)

총중량(파운드/kg): 82.83 / 37.65
패키지 내용물

1. CDP5560-L display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable

*Actual content may differ from market to market

HDMI:	x1
RGB / VGA:	x1
디스플레이 포트:	x1
DVI:	x1
오디오:	x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
CVBS:	x1
YPbPr:	x1
RS232:	x 1
IR 패스스루:	x1

DVI:	x1
오디오:	x1 Shared RCA audio (L+R)
RS232:	x1
IR 패스스루:	x1

전압:	100-240VAC +/- 10% 50/60Hz Wide Range
소비.:	130W (typ), 190W (max) < 0.5 W ("Off")

Temperature (º C):	0°C to 40°C
습도:	20% ~ 80% non-condensing

순(lb/kg):	66.66 / 30.3 (w/o stand) 71.72 / 32.6 (w/ Stand)
총중량(파운드/kg):	82.83 / 37.65
