상업용 디스플레이
CDP3235
주요 기능
제품 설명

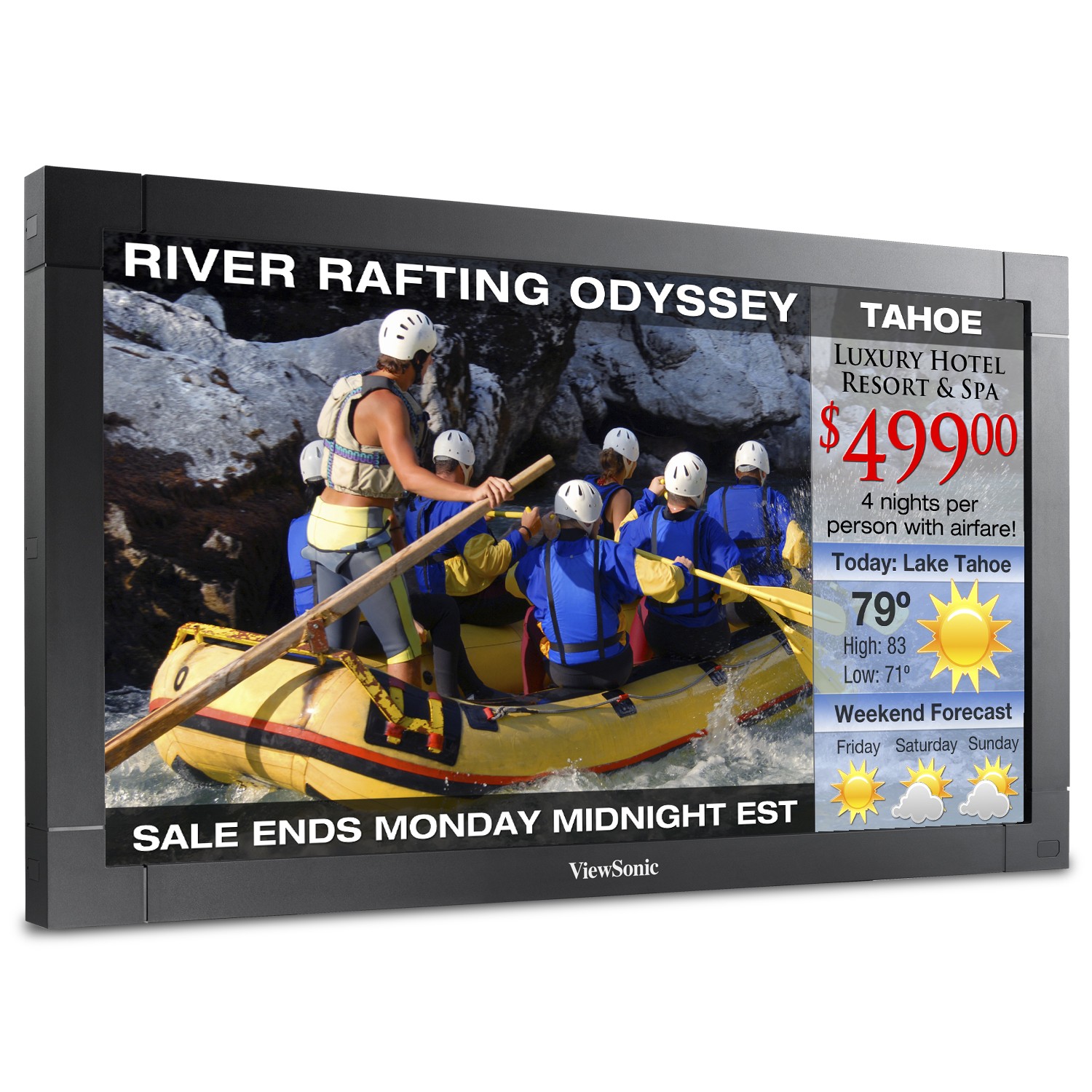

The ViewSonic® CDP3235 HD commercial display is the perfect solution for applications requiring a 32" commercial display capable of a duty cycle of 24/7 operation. The CDP3235 HD commercial display features a 1366x768 HD panel with 3000:1 contrast ratio. Additional features include versatile inputs – HDMI, DVI, VGA, S-video and composite, component video and built-in 10W x 2 speakers. The CDP3235 will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capability and a RJ45 connection for LAN remote control are also provided.
방문
- www.viewsonic.com
-
LCD
유형: 32" (31.5" viewable) color TFT active matrix, wide LCD Display Area: 27.5" horizontal x 15.4" vertical; 31.5" diagonal Optimum Resolution: 1366x768, 530mm dot pitch 대비 비율: 3000:1 (typ) 보기 각도: 178º horizontal, 178º vertical 응답 시간: 6.5 ms 광원: Long life, 50,000 hrs. (typ) 밝기: 450 cd/m2 (typ) 가로 세로 비율: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
INPUT
비디오 입력: HDMI, DVI, component, VGA, S-Video, composite Control Input/Output: RS-232/RJ45 -
AUDIO
Speakers: Internal 10-watt (x2) -
CONNECTOR
Analog: 9-pin mini D-sub (VGA) Digital: HDMI, DVI 힘: 3-pin plug -
POWER
전압: AC 100–240V (universal), 50–60Hz 소비.: 140W (typ) -
CONTROLS
입력: VGA, DVI, HDMI, YPbPr Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness 오디오: Volume, mute, audio source OSD: Languages, OSD H. position, OSD V. position, OSD timer Panel: Power, Exit, +, –, Menu/Enter VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect -
OPERATING CONDITIONS
습도: 10–80% (non-condensing) Temperature(landscape): 32–104ºF (0–40ºC) Temperature(Portrait): 32–95ºF (0–35ºC) -
DIMENSIONS (WXHXD)
Physical Without Stand: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm Physical With Stand: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm -
WEIGHT
징그러워요: 40.8 lb. / 18.5 kg Net Without Stand: 32.2 lb. / 15 kg Net With Stand: 33.1 lb. / 14.6 kg -
벽 마운트
VESA® 400mm x 200mm, 200mm x 200mm -
재활용/폐기
The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws. -
PACKAGE CONTENTS
CDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
