주요 기능
  • Built-in Quad Core Media Player with 16GB Storage
  • Embedded LAN
  • Internet Browser
  • Internal Scheduler
  • Content Management Software

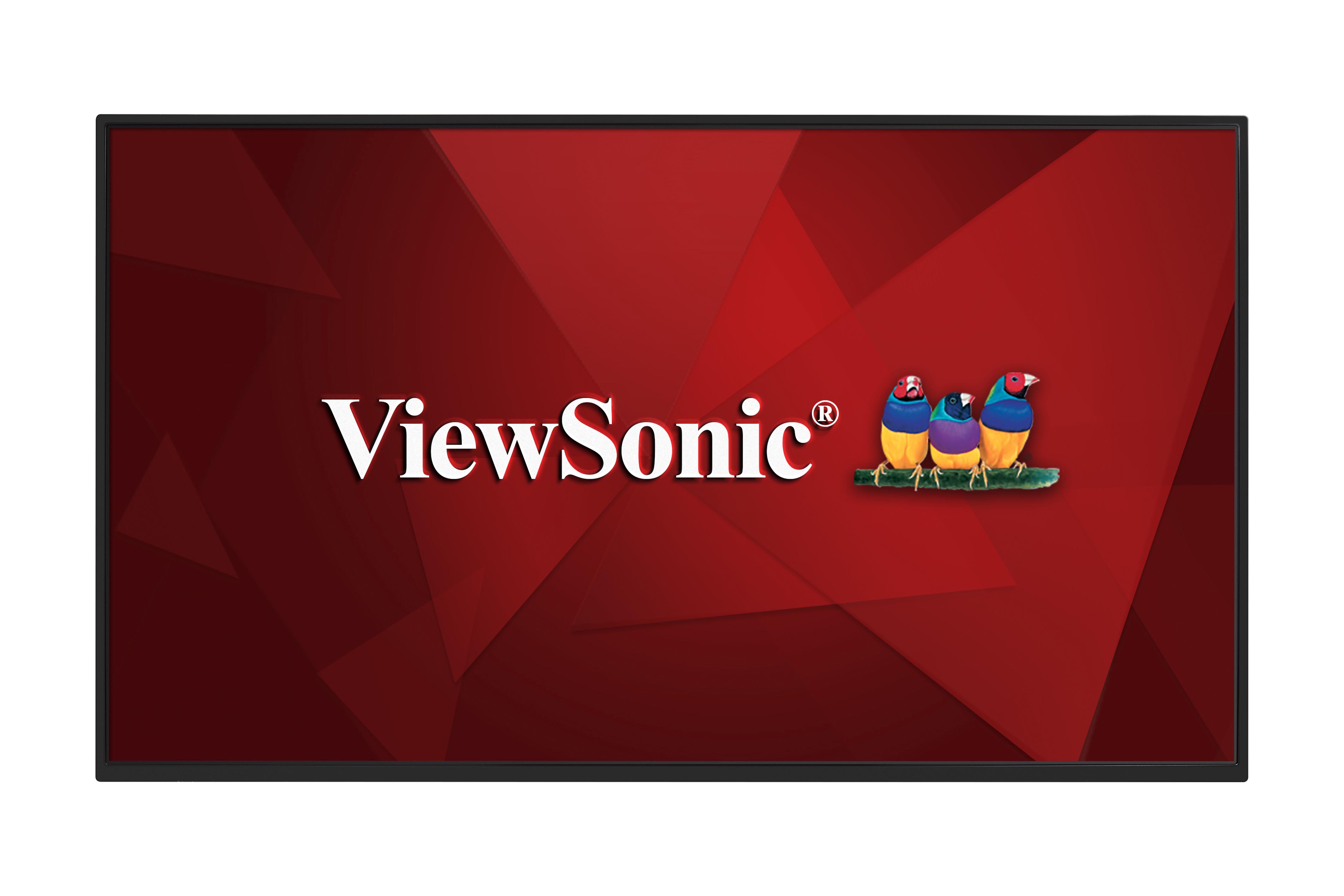

CDM5500R
제품 설명
Physical deployment, content creation, and message delivery couldn’t be easier than with the ViewSonic® CDM5500R. Featuring an internal media player this commercial display gives you everything you need for easy digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500R also features buile in LAN for easy connection to the internet for content delivery. Additional commercial features include intternal scheduler, tiling for video wall application, and commercial construction delivers reliable messaging 24 hours a day, 7 days a week.
방문
  • www.viewsonic.com
  • LCD PANEL
    패널 크기: 55"
    Type/Tech: TFT LCD Module. (IPS, ELED backlight)
    Display Area: 1209.6 (H) x 680.4 (V)
    가로 세로 비율: 16:9
    결의안: 1920x1080
    Colors: 16.7M
    밝기: 450 nits (typ.)
    대비 비율: 1100:1 Typ.
    응답 시간: 12ms
    보기 각도: H = 178, V = 178 typ.
    백라이트 라이프: 50,000 Hours Typ.
    표면 처리: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.)
    오리엔테이션: Landscape and Portrait Enabled
  • INPUT
    HDMI: x2
    디스플레이 포트: x1
    DVI: x1
    오디오: x1
    RS232: x1
    IR Pass Through: x1
  • OUTPUT
    디스플레이 포트: x1
    DVI: x1
    RS232: x1
    IR Pass Through: x1
  • LAN
    RJ45: x1
  • USB
    A형: x2 (Multi-media playback x 1, 5V/2A x 1)
    B형: x1 (Up Stream)
    마이크로 USB: x1 (Support USB OTG)
  • 스피커
    10W (L) + 10W ( R )
  • COMPATIBILITY
    HDMI: 480i, 480p,720p,1080i,1080p
    디스플레이 포트: 480i, 480p,720p,1080i,1080p
    DVI: 480i, 480p,720p,1080i,1080p
  • CONTROLS
    Embedded Linux OS: Yes (4.4.4)
    USB 지원 파일 형식: JPG, JPEG, PNG, GIF, BMP, DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, AAC, M4A
  • POWER
    전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    소비.: 75W (typ)
  • ERGONOMICS
    Wall Mount (VESA® ): 400 x 400
  • OPERATING CONDITIONS
    Temperature (º C): 0 to 40°C (Landscape) / 0 to 35°C (Portrait)
    습도: 20% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    물리적(인치/mm): 48.56 x 27.96 x 1.79 / 1233.4 x 710.3 x 45.5
  • WEIGHT
    순(lb/kg): 39.68 / 18.0 (w/o stand)
  • 패키지 내용물
    CDM5500R commercial display/ Remote Control with batteries / User manual CD wizard / Quick Start Guide / Power Cables / RS232 cable / 2.4mm – 2.4mm cable
