주요 기능
  • ViewBoard® Cast 4-way split screen content sharing software
  • USB Plug and Play
  • Remote Management with vController™ Software
  • Supports HDMI CEC Pass Through
  • Embedded LAN, Optional Wi-Fi, Internet Browser

CDE9800
제품 설명
The ViewSonic® CDE9800 is a 98’’ 4K Ultra HD commercial display for meeting rooms. This display provides immersive and high-impact presentation with stunning 3840x2160 resolution, 500-nit typical high brightness, wide viewing angles, dual 16W speakers, and content sharing software. The built-in ViewBoard® Cast software enables wireless content streaming from mobile devices onto the display. In addition to HDMI and VGA inputs to connect with various high definition devices, this display utilises an integrated multi-core processor, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the vController™ software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.

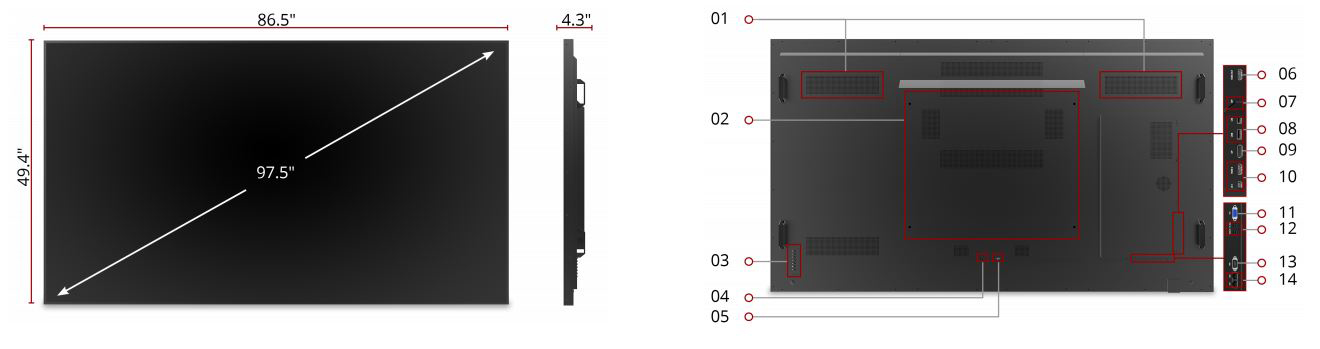

  1. Internal Speakers
  2. VESA® Compatible Wall Mount 800 x 600 mm
  3. Menu Controls
  4. Power Switch
  5. AC In
  6. HDMI Out
  7. SPDIF
  8. USB Type A x2
  9. DisplayPort
  10. HDMI x2
  11. VGA
  12. Audio In
  13. RS232 In
  14. LAN x2
방문
  • www.viewsonic.com
  • 표시
    패널 크기: 98"
    유형/기술: TFT LCD Module with LED Backlight
    표시면적(mm): 2158.848mm*1214.352mm
    기본 해상도: 3840 x 2160
    가로 세로 비율: 16:9
    색: 1.07B (10bit)
    밝기: 500 nits(typ.)
    대비 비율: 1300:1
    응답 시간: 5 ms(typ.)
    보기 각도: H = 178, V = 178 (typ.)
    백라이트 라이프: 30,000 hrs(min.)
    표면 처리: 3H, Haze 1% (typ)
    베젤: 20.3mm
    오리엔테이션: Landscape
  • INPUT
    HDMI: x2
    1 port to support CEC
    RGB / VGA: 1
    디스플레이 포트: DP1.2 x1
    오디오: PC audio in (3.5 mm) x1
    RS-232: x1
    OPS: OPS x1
    SDM-L x1
  • OUTPUT
    HDMI: HDMI2.0 x1
    오디오: 3.5mm Earphone Out x1
    SPDIF: x1
  • LAN
    RJ45: X2
    10M/100
  • USB
    A형: USB2.0 x2
  • 스피커
    스피커: 16W x2
  • COMPATIBILITY
    HDMI: HDMI in: 4k@60Hz
    HDMI out: 1080/4k @60Hz
    디스플레이 포트: 3840x2160@60Hz
    안드로이드 버전: Resolution: 1080p
  • POWER
    전압: 100-240VAC +/- 10% Wide Range
    소비.: On: 385W(Typ.)
    Off: <0.5W
  • ERGONOMICS
    벽면 장착(VESA® ): 800x600mm
  • OPERATING CONDITIONS
    온도(θ C): 0°C to 40°C
    습도: 20% ~ 80% RH non-condensing
  • 치수(가로 X 세로 X 세로)
    물리적(mm): 2198.8*109.5*1253.8mm
    포장(mm): 2525*435*1750mm
  • WEIGHT
    순(kg: 98.15 kg
    그로스(kg): 153.65 kg
  • 패키지 내용물
    패키지 내용물: 1. US/EU/UK/AU power cord 3M
    2. QSG
    3. Compliance statement
    4. HDMI cable 3M*1
    5. Remote control with AAA batteries
    6. Webcam plate
    7. Wall mount screws
