상업용 디스플레이
CDE8620
주요 기능
- Easy cast function
- Wireless presentation across devices and rooms
- USB flash drive plug-and-play for photos, music & video
- Multitasking with powerful embedded player & OPS PC slot
- 4K slim bezel presentation display
제품 설명
The ViewSonic® CDE8620 is an 86” 4K wireless presentation display. The built-in screen sharing software*, ViewBoard® Cast and Display, enable multiple users, whether on-site or on-line, to participate in conferences and share content with each other simultaneously, transforming the CDE8620 into a dynamic content hub. This reliable commercial display is equipped with a quad-core processor and internal memory, allowing constant multimedia play from internal storage or a USB flash drive. Supporting remote configuration and content management systems, the ViewSonic® CDE8620 is also suitable for diverse signage applications.
*Chrome, Android, Windows, Mac OS, and iOS compliant
*Miracast, Chromecast, and AirPlay support
*Chrome, Android, Windows, Mac OS, and iOS compliant
*Miracast, Chromecast, and AirPlay support
- AC In
- Power Switch
- Internal Speakers
- OPS Slot
- WiFi Slot
- Menu Controls
- VESA® Wall Mount 600x400mm
- SPDIF
- HDMI In x 2
- DisplayPort
- RS232
- VGA
- Audio In
- USB 3.0 Type A (USB Playback)
- USB 2.0 Type A x 2 (USB Playback)
- Audio Out
- LAN
방문
- www.viewsonic.com
-
표시

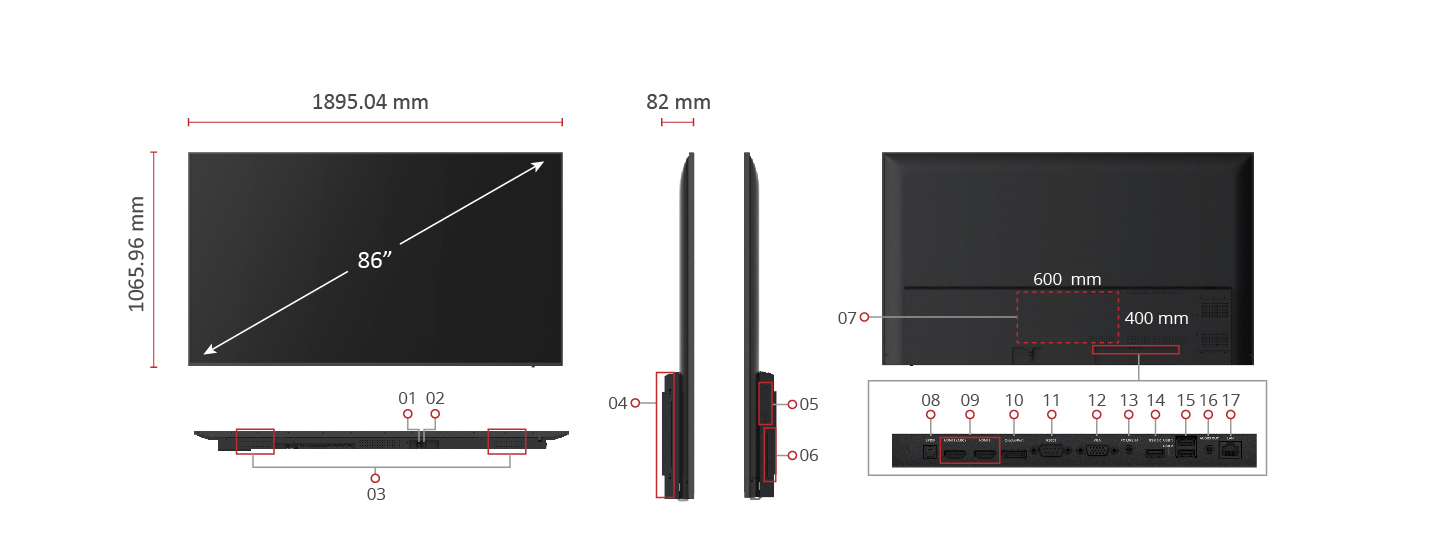

패널 크기: 86" 유형/기술: TFT LCD Module. IPS type, DLED backlight 표시면적(mm): 1895.040 (H) × 1065.960 (V) (86" diagonal) 기본 해상도: 3840 x 2160 가로 세로 비율: 16:9 Colors: 1.07G colors 밝기: 450 nits (typ.) 대비 비율: 1200:1 Typ. , 5000:1 Max.(DCR enable) 응답 시간: 8 ms 보기 각도: H = 178, V = 178 typ. 백라이트 라이프: 30,000 Hours (min) 표면 처리: Anti-glare, 2H hardness, Haze 28% 베젤: Slim 오리엔테이션: Landscape -
INPUT
HDMI: x2 RGB / VGA: x1 디스플레이 포트: x1 오디오: x1 (3.5mm) RS-232: x1 OPS Slot: x1 (Optional Intel OPS VPC12-WPO) WiFi Slot: x1 (Optional WiFi module LB-WIFI-001) -
OUTPUT
오디오: x1 (3.5mm) SPDIF: x1 (Fiber) -
LAN
RJ45: x1 -
USB
A형: 2.0 Type A : x 2 (USB Playback)
3.0 Type A : x 1 (USB Playback) -
스피커
Max. 16Wx2 -
COMPATIBILITY
RGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz 디스플레이 포트: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz 안드로이드 버전: Android 8.0 -
POWER
전압: 100V-240V,50/60Hz (AC) 소비.: Normal 178 W, Max 450 W -
ERGONOMICS
벽면 장착(VESA® ): 600x400 mm -
OPERATING CONDITIONS
온도(θ C): 0 to 40°C 습도: 20% ~ 80% non-condensing -
치수(가로 X 세로 X 세로)
물리적(인치/mm): 76.02 x 43.67 x 3.24 in/ 1931.0 x 1109.0 x 82 mm 포장(inch/mm): 83.39 x 50.05 x 11.02 in/2118 x 1271 x 280 mm -
WEIGHT
순(lb/kg): 50.4 kg / 111.11 lbs (w/o stand) 총중량(파운드/kg): 69.8 kg/153.88 lbs -
패키지 내용물
1. CDE8620 presentation display
2. Remote control with batteries
3. Quick start guide
4. Power cables (1.5M)
5. HDMI cables x2 (1.5M/3M)
6. Wall mount screw
7. RS232 adapter
