주요 기능
  • Embedded Android SOC supports Andriod apps
  • Computing expansion PC slot for Intel OPS
  • USB multimedia player
  • vController software
  • Supports HDMI CEC pass-through

CDE6510
제품 설명

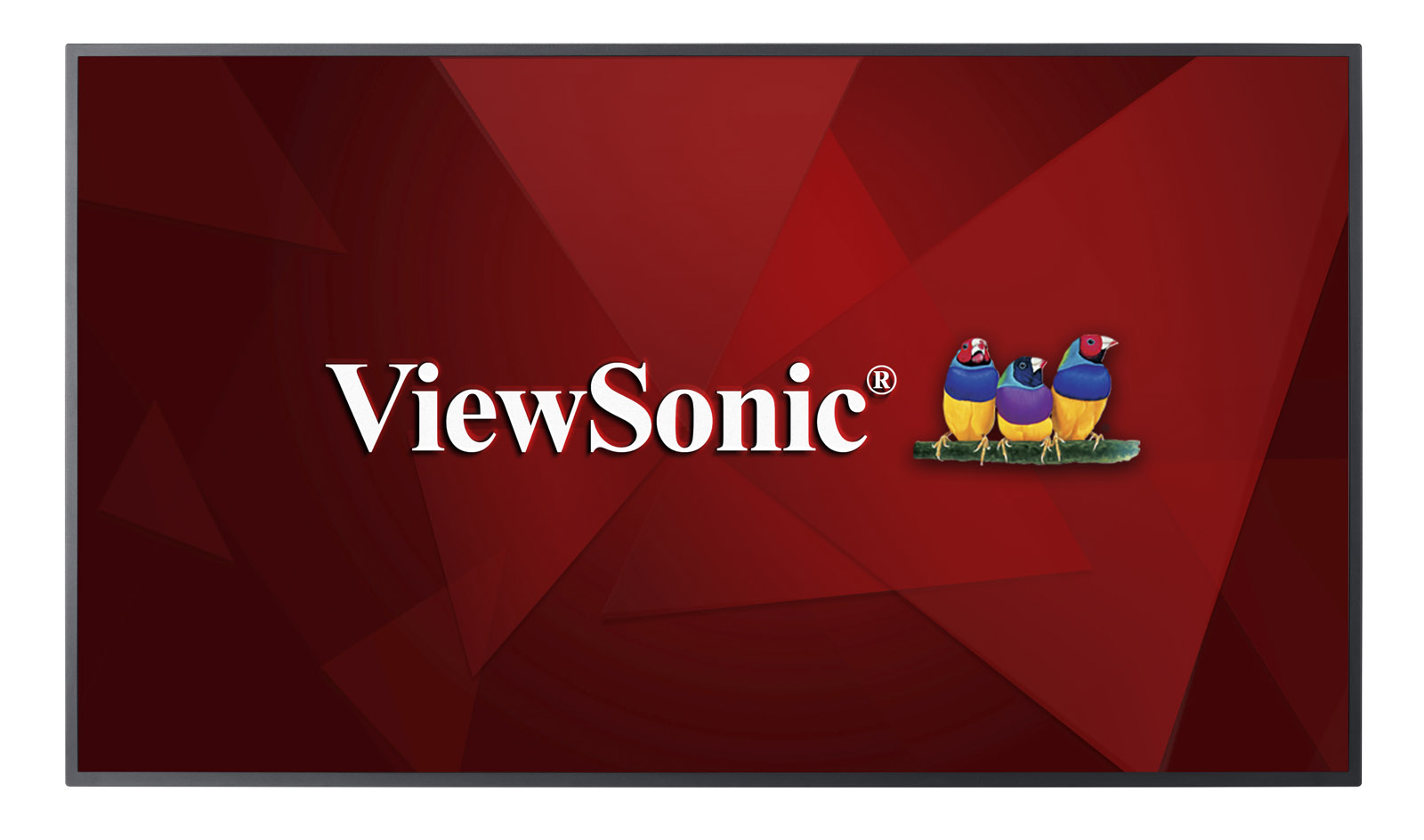

The ViewSonic CDE6510 is a great value 65” 4K LED commercial display with high-reliability 16 hours per day/7 days a week operating time. The embedded Android SOC enables CDE6510 to install Android apps for rich content broadcasting while the Intel OPS PC slot supports higher computing performance with 4K DisplayPort for a wide range of user scenarios. A built-in browser offers a convenient method for displaying internet content without a PC. In addition to versatile connectivity options, including 4K DisplayPort, HDMI, VGA, USB, IR, RJ45, the display comes with a convenient USB multimedia playback function. With 3840 x 2160 resolution, 350-nit brightness with 178-degree wide viewing angles, and 2 x 10W stereo speakers, the slim-bezel CDE6510 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. The display also comes equipped with Blue Light Filter technology to create a more comfortable viewing experience.
방문
  • www.viewsonic.com
  • LCD PANEL
    패널 크기: 65"
    유형/기술: TFT LCD Module with DLED Backlight
    표시면적(mm): 1428.48 (H) x 803.52 (V)
    가로 세로 비율: 16:9
    결의안: 3840x2160 @60Hz
    Colors: 1.07B colors
    밝기: 350 nits (typ.)
    대비 비율: 4000:1 (typ.)
    응답 시간: 8 ms
    보기 각도: H = 178, V = 178 (typ.)
    Backlight: DLED
    백라이트 라이프: 30,000 Hours Min.
    Hardness: 3H
  • INPUT
    HDMI: x 4
    RGB / VGA: x 1
    디스플레이 포트: x 1
    오디오: x1 PC audio (3.5 mm)
    RS232: x 1
    PC Slot: x 1 (optional VPC12-WPO-2)
    IR: x 1
  • OUTPUT
    RS232: x 1
    IR: x 1
  • LAN
    RJ45: x 1
  • USB
    A형: x 1 for 5V/2A
    2.0 Type A: x 2 (USB Playback)
    3.0 Type A: x 1 (USB Playback)
  • 스피커
    10W x 2
  • COMPATIBILITY
    VGA: 1920 x 1080
    디스플레이 포트: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
    HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
  • POWER
    전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    소비.: Normal 165 W, Max 295 W
  • ERGONOMICS
    벽면 장착(VESA® ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
  • OPERATING CONDITIONS
    온도(θ C): 5°C to 40°C
    습도: 20% ~ 80% non-condensing
  • DIMENSIONS
    (W X H X D)
    Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
    Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
    Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in
  • WEIGHT
    Net (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
    Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
    Gross (kg / lb): 34.84 kg / 76.80 lbs
  • WHAT'S IN THE BOX?
    1. CDE6510 commercial display
    2. Remote Control with batteries
    3. User manual CD wizard
    4. Quick Start Guide
    5. Power Cables
    6. RS232 cable
    7. RS232 daisy chain cable (2.4mm – 2.4mm)
    8. IR sensor cable
