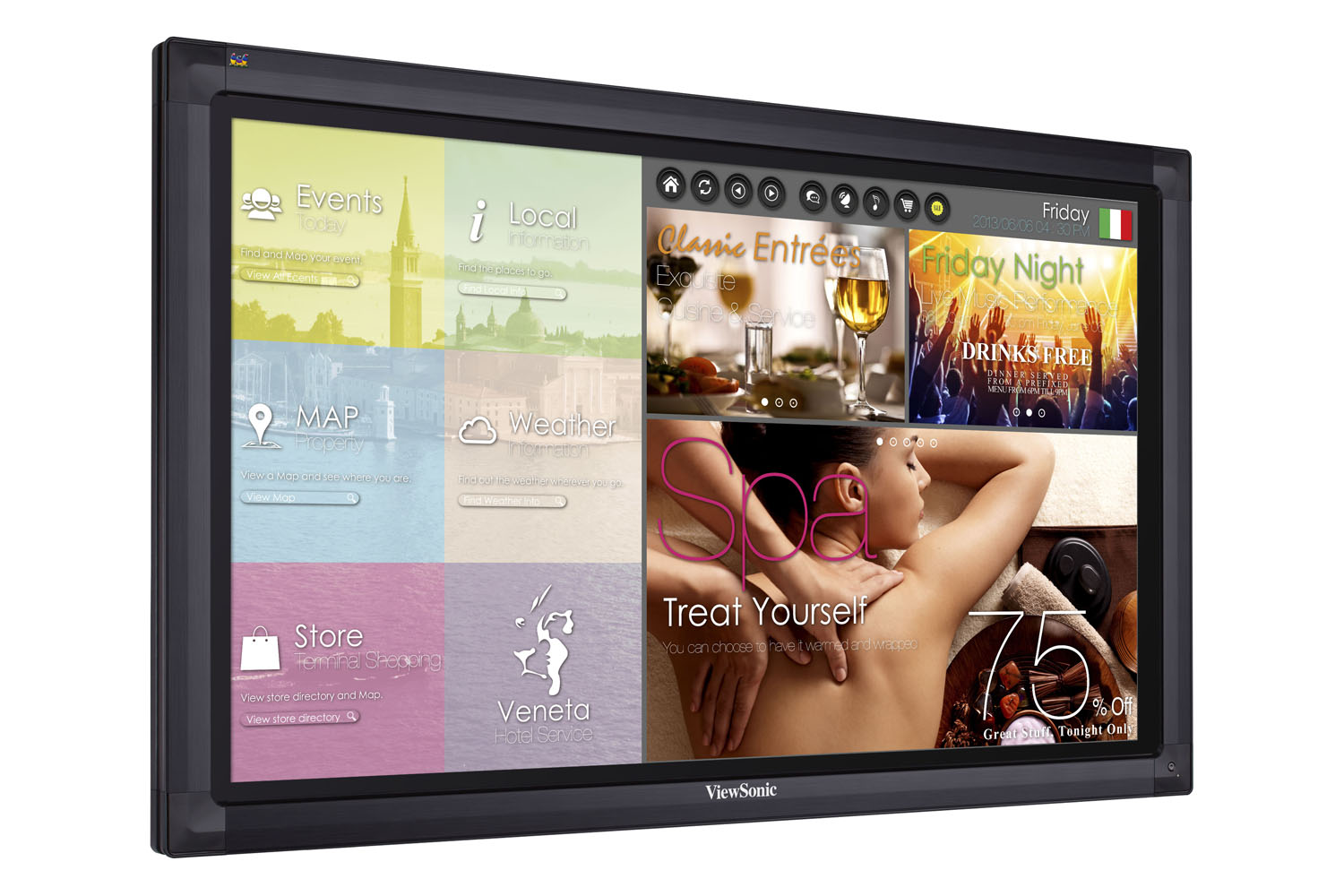

CDE5501-TL
제품 설명
The CDE5501-TL interactive flat panel display is the ideal insteractive solution for classrooms and meeting room display. Its multi-touch capabilities facilitate interaction and collaboration, allowing two students to simultaneously use their fingers or a stylus to write and draw, or even interact with lecture content. Its Full HD LED screen guarantees crisp, vivid content, and its 400- nit brightness provides better visual performance without needing to dim the lights — a great advantage compared to traditional projector-based interactive whiteboard systems. Ergonomically designed, this panel display features a tempered-glass overlay, anti-glare glass treatment, and rounded-corner housing. Plus, connectivity is never a problem with various input/output options, including 2 HDMI ports, 2 VGA ports, and analog YPbPr and composite video connections to connect with PCs or media players. As an optional feature, you can convert this touch display into an all-in-one smart whiteboard with the addition of ViewSonic’s proprietary slot-in PC module.
방문
  • www.viewsonic.com
  • 표시
    패널 크기: 54.6"
    Type/Tech: TFT LCD Module with LED Backlight
    표시면적(mm): 1209.6(H) x 680.4(V) (54.6” diagonal)
    가로 세로 비율: 16:9
    기본 해상도: 1920 x 1080
    Colors: 16.7M
    밝기: 400 nits (typ.)
    대비 비율: 4000:1 Typ.
    응답 시간: 6.5ms
    보기 각도: H = 178, V = 178 typ.
    백라이트 라이프: 30,000 Hours Typ.
    표면 처리: AG coating (7H)
    오리엔테이션: Landscape
  • TOUCH
    유형/기술: IR
    터치 해상도: 32767 x 32767
    터치 포인트: 6-point
  • INPUT
    HDMI: x2
    RGB / VGA: x2
    S-비디오: x1
    오디오: x2 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
    CVBS: x1
    YPbPr: x1
    RS232: x1
    OPS: PC Slot (proprietary)
  • OUTPUT
    CVBS: x1
    SPDIF: x1
  • USB
    A형: x1
    B형: x1, for touch
  • 스피커
    15Wx2
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i,
    S-비디오: 480i, 576i
    YPbPr: 480i, 480p,720p,1080i,1080p
    HDMI: 480i, 480p,720p,1080i,1080p
  • CONTROLS
    Physical- Top OSD: PICTURE:POWER, INPUT, MENU,CH ^, CH v, VOL+, VOLPicture
    Mode, Contrast,Brightness, Color, Tint, Sharpness, Color Temp., Noise
    Reduction
    SOUND:Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF MODE, AD Switch
    TIME:Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer
    LOCK:Lock System, Set Password, Block Program, Parental Guidance, Key Lock
    SETUP:OSD Language, TT Language, Hearing Impaired, PVR File System, Record list,
    Aspect Ratio, Blue Screen, Fist Time Installation, Reset, Software Update(USB)
  • 소프트웨어 번들
    ViewBoard 2.0
  • 전압: 100-240VAC +/- 10% 50/60Hz Wide Range
    소비.: 158W (typ)
    < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 400 x 400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    습도: 20% ~ 80% non-condensing
  • DIMENSIONS
    (W X H X D)
    물리적(인치/mm): 53.9”x32.6x4.09 /1369x828x104
    포장(inch/mm): 58.27x38.86x12.09 / 1480x987x307
  • WEIGHT
    순(lb/kg): 103.62 / 47
    총중량(파운드/kg): 121.25 / 55
  • 패키지 내용물
    1. CDE5501-TL display 2. power cable 3. VGA cable 4. audio cable 5. USB cable 6. remote control with batteries 7. stylus (x3) 8. ViewSonic Wizard CD (with user guide)
