상업용 디스플레이
CDE4200-L
주요 기능
제품 설명

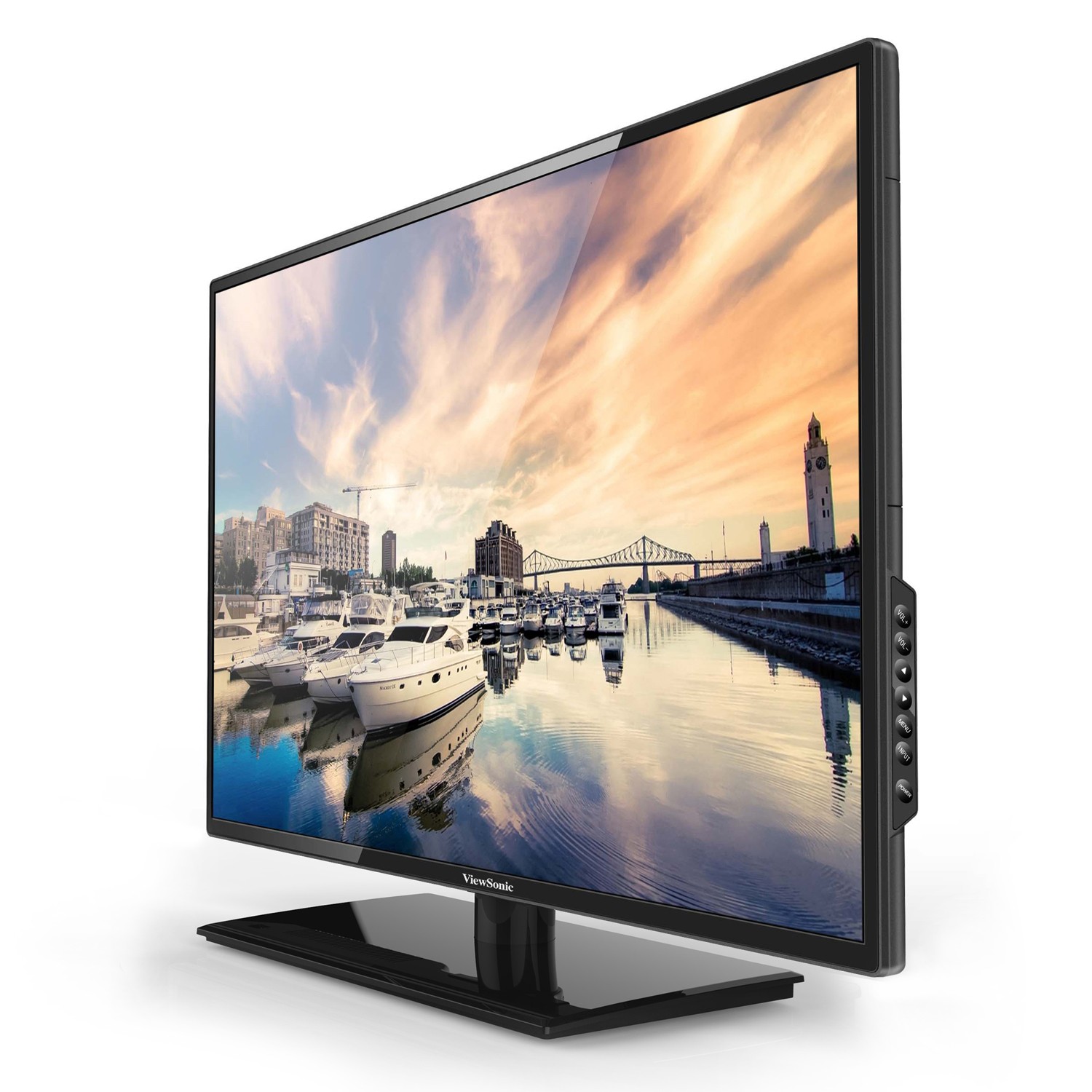

The ViewSonic CDE4200-L is the ideal display solution for business, hotel, and hospitality environments. The 42-inch Full HD LED professional display features versatile input connectivity including 3x HDMI, VGA, Composite, and YPbPr. With a brightness of 350 nits, and a 4000:1 contrast ratio, this LED panel display delivers stunning brightness and contrast at a 8ms response time to ensure crisp pictures and smooth playback. Built-in 10W x 2 speakers and SPDIF digital audio output provide crystal-clear sound. In addition, the CDE4200-LED includes USB cloning for easy duplication in multi-screen environments. The CDE4200-L also features automated control using RS232, HDMI CEC control, and IR pass through for easy connection to HD set-top-boxes, media players, and Blu-ray players. A programmable hospitality menu allows for custom calibration of features such as channel defaults, audio levels, and power up—making the CDE4200-LED ideal for use as in-room hotel televisions.
방문
- www.viewsonic.com
-
표시
패널 크기: 42" Type/Tech: TFT LCD Module with LED Backlight 표시면적(mm): 930.24(H) x 523.26 (V) (42” diagonal) 가로 세로 비율: 16:9 기본 해상도: 1920 x 1080 Colors: 16.7M 밝기: 350 nits (typ.) 대비 비율: 3000:1 Typ. 응답 시간: 6.5ms 보기 각도: H = 170, V = 170 typ. 백라이트 라이프: 30,000 Hours Typ. 오리엔테이션: Landscape -
INPUT
HDMI: x3 RGB / VGA: x1 오디오: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R) CVBS: x1 YPbPr: x1 RS232: x1, w/ IR pass thru -
OUTPUT
오디오: x1 Earphone Out SPDIF: x1 IR 패스스루: thru RS232 리모컨 출력: x1 -
USB
A형: x1 -
스피커
10W x 2 -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table CVBS: 480i,576i YPbPr: 480i, 480p,720p, up to 1080p HDMI: 480i, 480p,720p, up to 1080p -
CONTROLS
Physical- Top OSD: PICTURE: Picture Settings Picture Mode(Power Saving/Dynamic/Stander/Movie/User),
Screen Size ( Wide/Cinema/Zoom/Normal)
PC Settings
Color Temparature ( Normal/Warm/Cool)
Backlight (Medium/High/Low)
Advanced Picture Settings(Dynamic Contrast-Low/Medium/high/off; Film Mode-on/off; Noise Reduction-Low/Medium/high/off; MPEG Noise Reduction- low/Medium/high/off.
SOUND: Sound Setting( Standard/Soft/User/Dynamc),Analog Sound, Digital Sound, Digital Audio Output, Equalizer Setting.
PARENTAL: Lock Parent Control, V-CHIP,Change Password, Keypad Lock, Source Lock, System Lock.
SETUP: Closed Caption, Menu Language( English/French/Spanish/German/Portuguese), Clock, OSD Transparency, OSD Timer.
OTHERS: Blue Back, No Signal Power Off, No Operation Power Off, User Moniro, Audio Only, TV ID, All Reset.Multimedia: PICTURE: JPG
AUDIO: MP3 -
POWER
전압: 100-240VAC +/- 10% 50/60Hz Wide Range 소비.: 59W (typ), 75 W (max)
< 0.5 W ("Off") -
ERGONOMICS
Wall Mount (VESA® ): 200 x 200 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C 습도: 20% ~ 80% @40°C non-condensing -
DIMENSIONS
(W X H X D)물리적(인치/mm): 38.35x24.66x 8.27 / 974.2 x 626.3 x 210 (w/ stand)
38.35x22.30x2.54 / 974.2 x 567.2 x 64.4 (w/o stand)포장(inch/mm): 47.2 x 27.5 x 5.6 / 1200x 700x 143 (w/o stand) -
WEIGHT
순(lb/kg): 26.18 / 11.9 (w/o stand)
29.26 / 13.3 (with Stand)총중량(파운드/kg): 35.42 / 16.1 -
패키지 내용물
1. CDE4200-L display 2. power cable 3. remote control with batteries 4.User Guide 5. Quick Start Guide
*Actual content may differ from market to market
