“'An Ideal Installation Projector'
'utilizing a unique "Flex-In" design, the Pro8530HDL integrates an intuitive form, high flexibility and an easy installation process.'”
보관됨

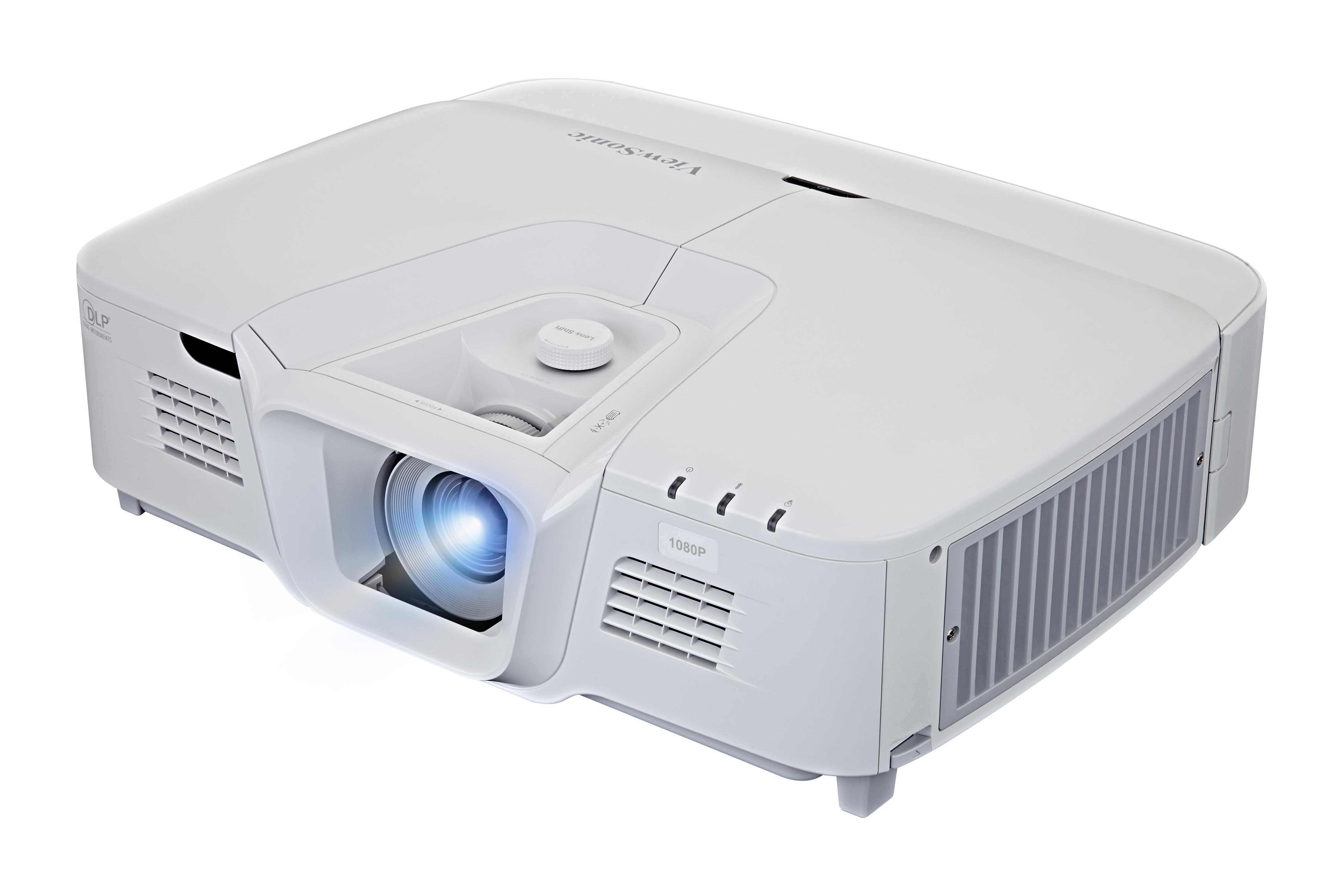

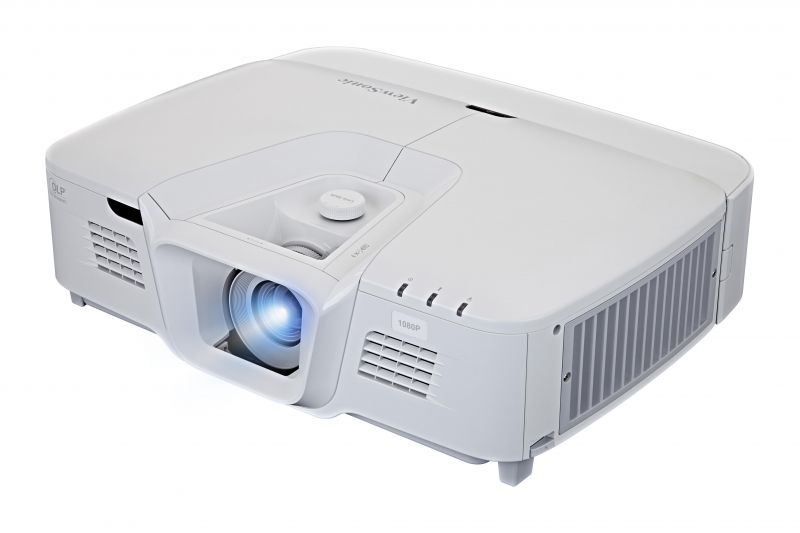

Pro8530HDL
5,200 Lumens Installation Projector
- Full HD 1080p resolution
- 1.07 - 1.71 throw ratio
- Unique "Flex-In" design flexible integration

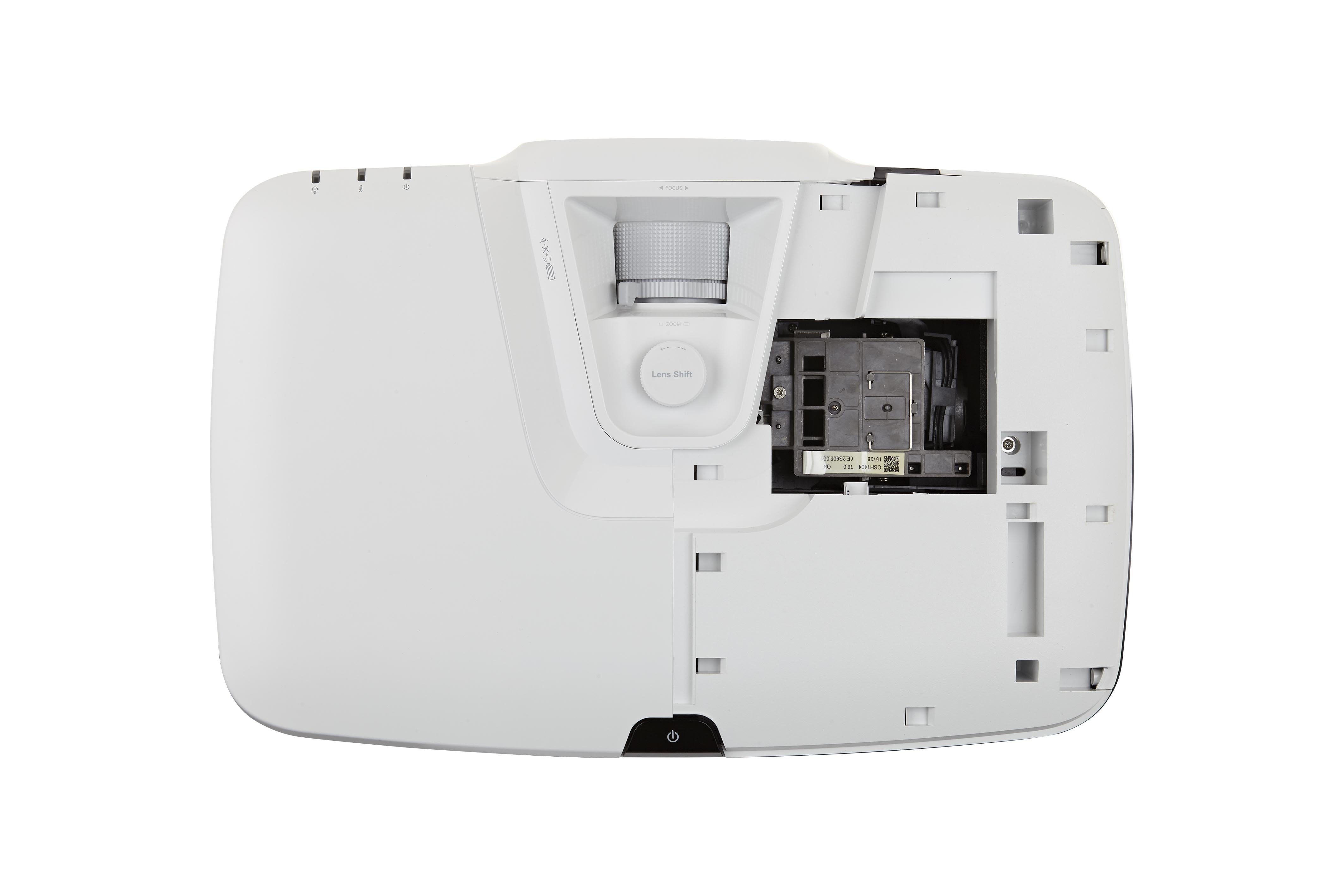

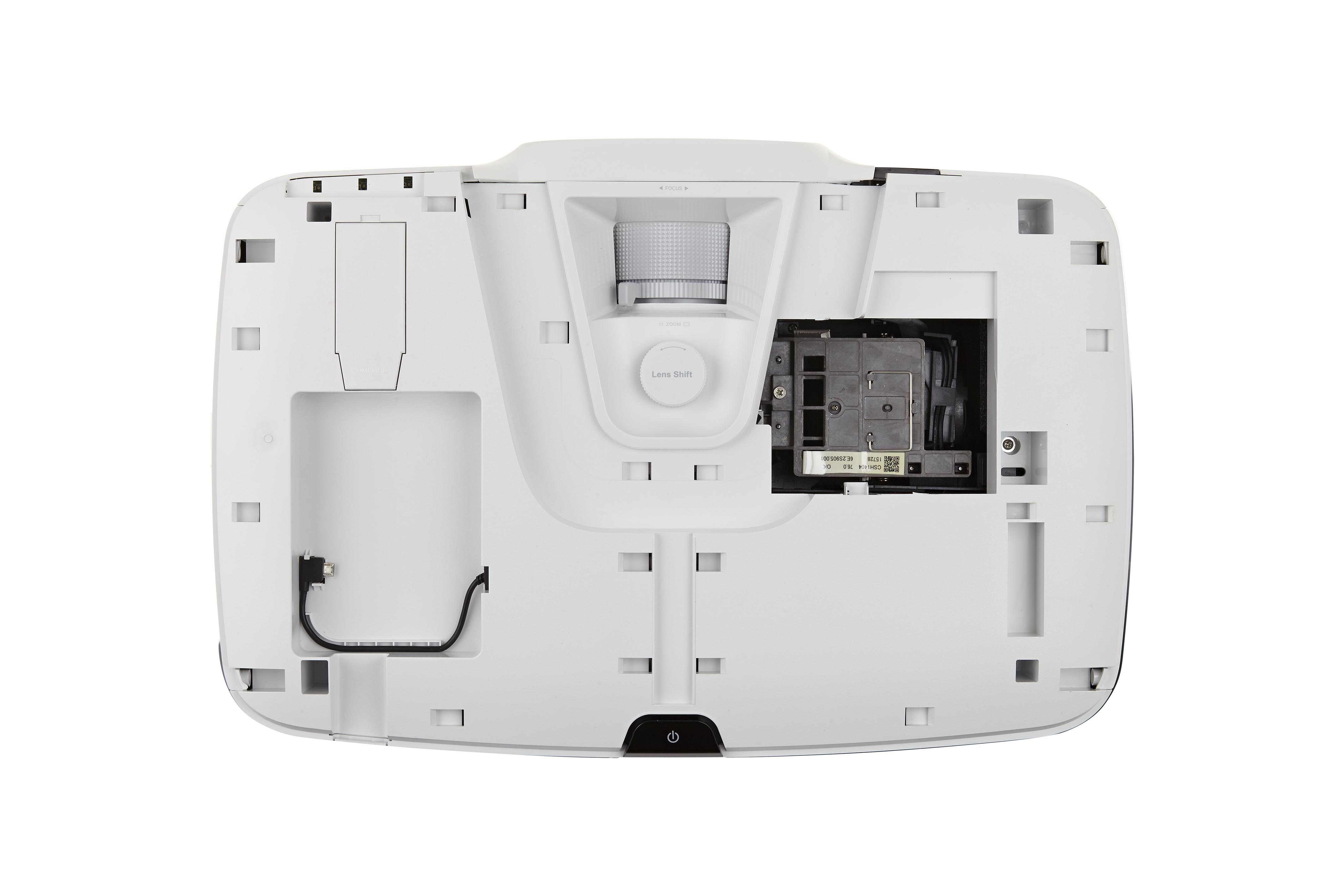

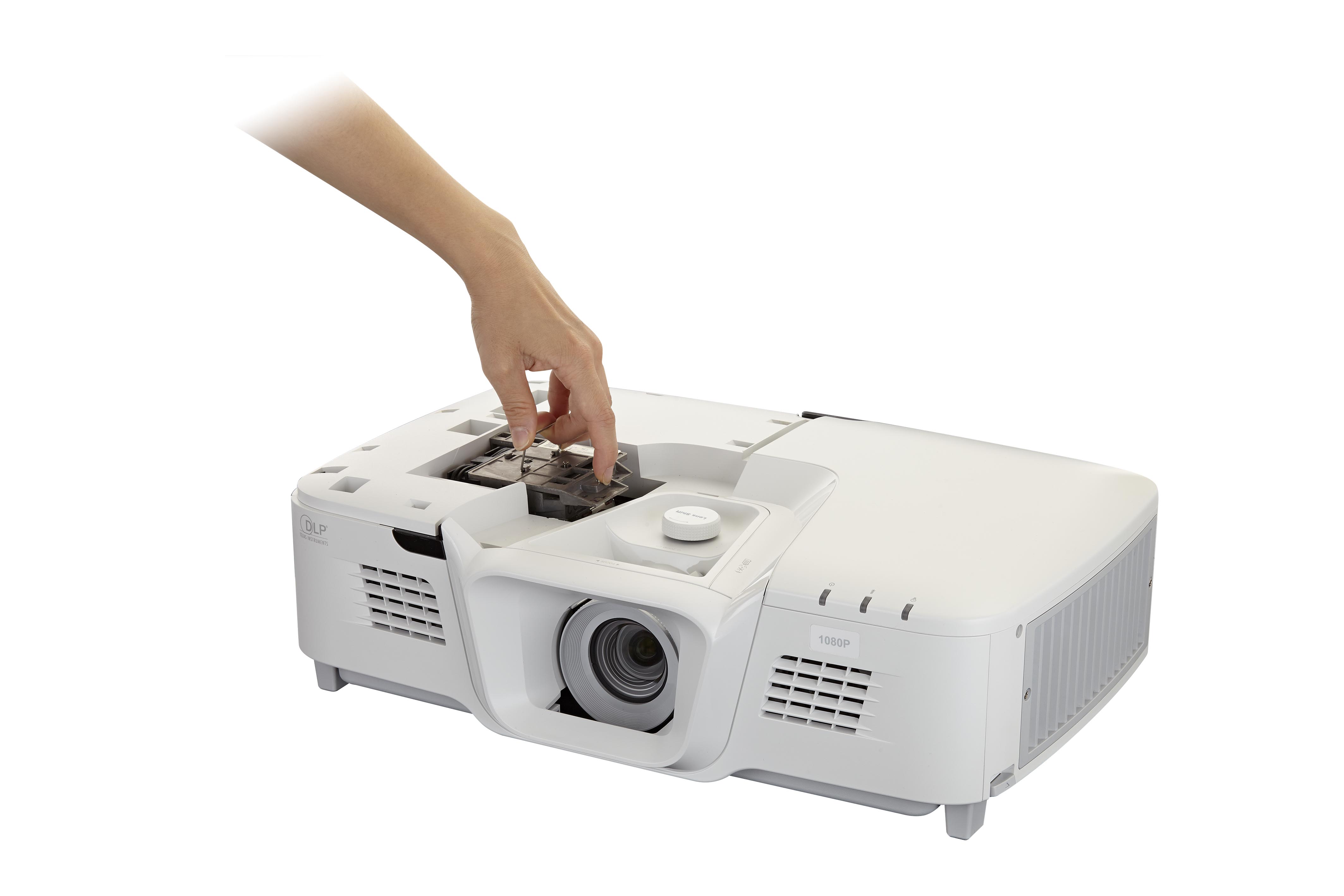

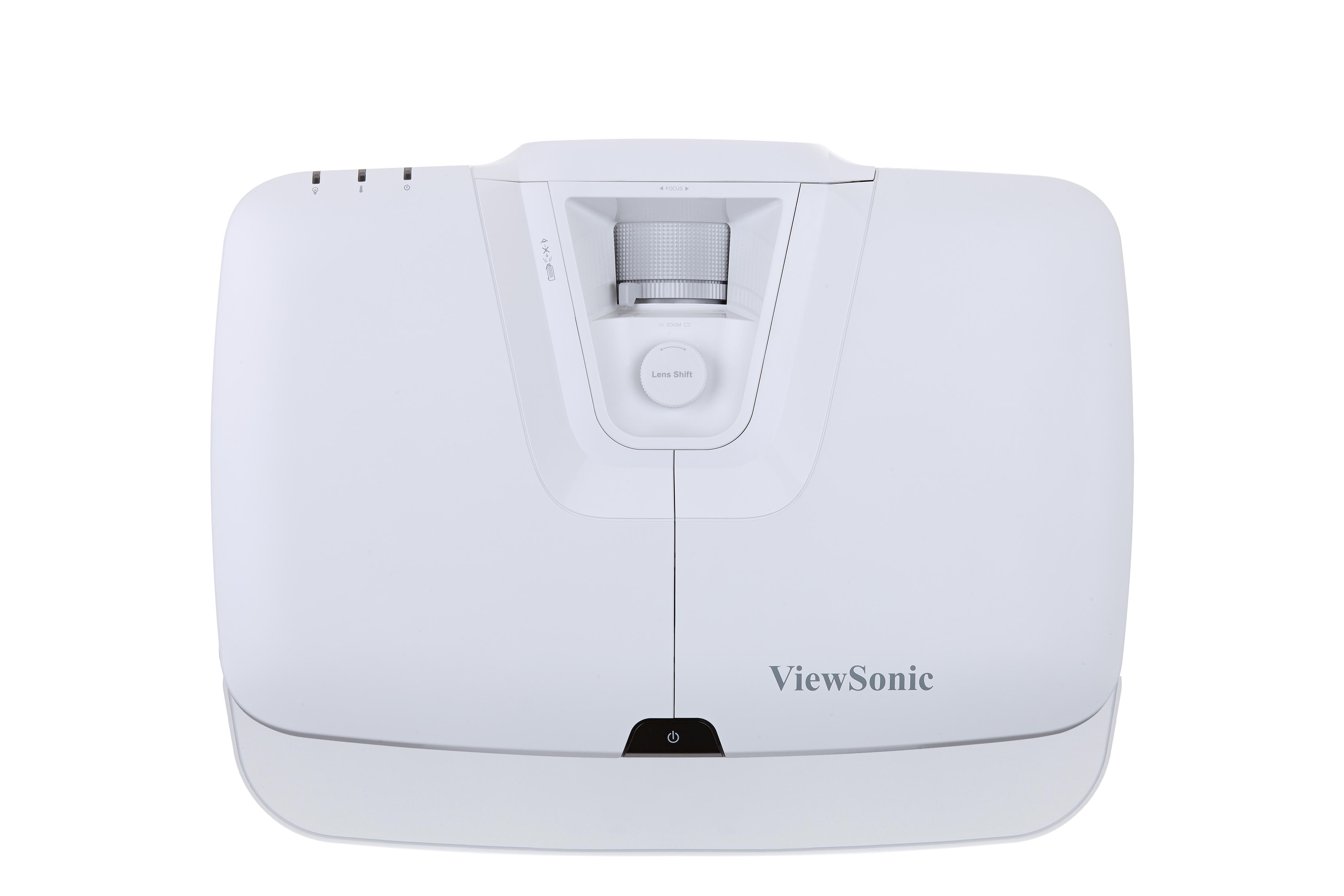

- Top cover design for easy dongle and lamp access
- PortAll® compartment for wireless dongle
리뷰
“The bottom line is this model is versatile in supporting the most common methods of control via a network and with the optional adapters can support audio/video networking via HDBaseT or wireless networking from with PCs and mobile devices.”
스펙
- DISPLAY유형: TI DMD 0.65
Resolution : 1920x1080 (Full HD)
F Stop / Focal Length: 2.54~3.07 / 15.75mm ~ 25.1mm
광학 줌: 1.6X
키스톤: +/- 30° (Horizontal / Vertical)
Auto keystone: Yes (Vertical)
Lens Shift : Yes (7.5% Full high or 15% Half high)
Display Size: 30" ~ 300"
투척 거리: 0.71 m ~ 11.36 m
던지기 비율: 1.07~1.71
Lamp Power: 370W
Lamp Life (Normal / SuperEco Mode): 2,000 / 2,500 (hours)
밝기: 5200 ANSI Lumens
대비 비율: 5000:1
Normal / Eco Mode: 36dB / 33dB
Optical Offset : 115%~130%+-5% - AUDIO스피커: 10W Cube x 2

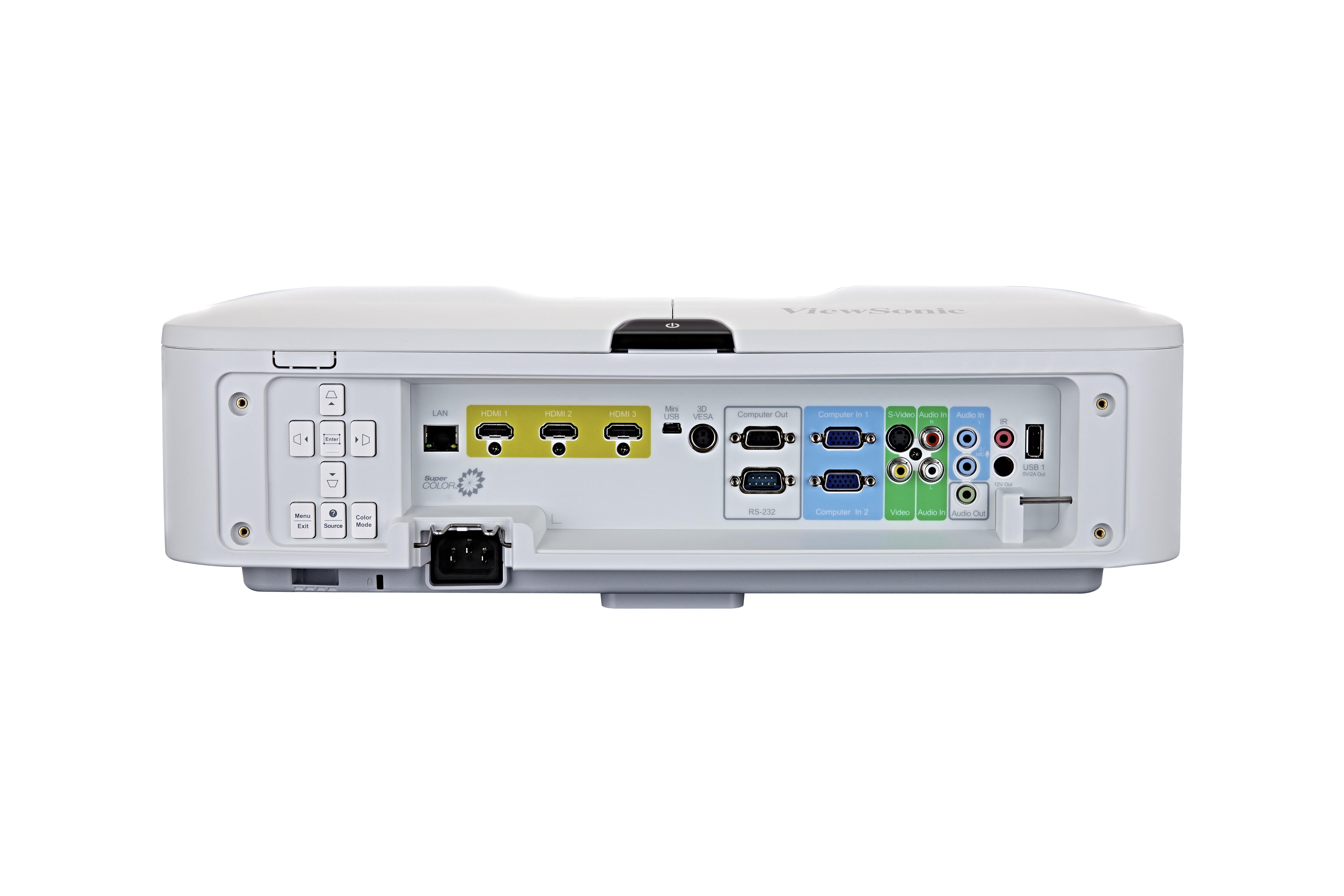

- INPUT CONNECTIVITYHDMI/MHL: x1
HDMI : x3
VGA : x2
S-비디오: x1
Component: x2 (Share with VGA input )
컴포지트: RCA x1
오디오: 3.5mm mini jack x2, RCA(L/R) x1
USB: Type A x1 (Power Charging) / Mini type B x1 (Maintenance and mouse control) / Micro USB Wire x1 (Power Charging)
Microphone: Share with Audio in 2 connector
- OUTPUT CONNECTIVITYVGA: x1
오디오: 3.5mm mini jack x1
DC Output: x1 - OTHER CONNECTIVITYLan RJ-45 : x1
3D VESA : x1
IR Connector : x1 - CONTROLRS232: x1
- DIMENSIONSPhysical (W×H×D): 469.5 x 316.24 x 139.8 mm
- WEIGHT그물: 6.3 kgs / 13.89 lbs
- POWER전압: 100~240Vac 50/60Hz
전력 소비: 574 W (Max.) - 패키지 내용물Power Cord / VGA Cable, 1.8m, black / Remote Control with Batteries (With Laser pointer) / Quick Start Guide / ViewSonic CD Wizard / Cable Cover
