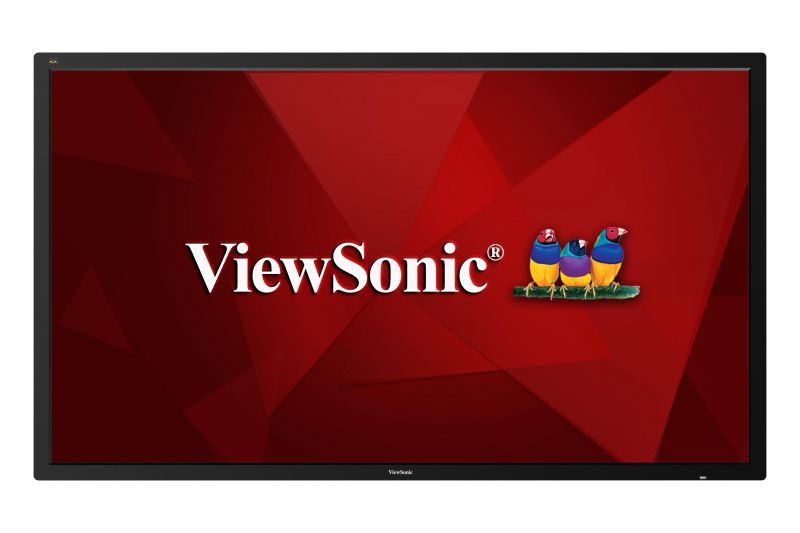

CDE7500

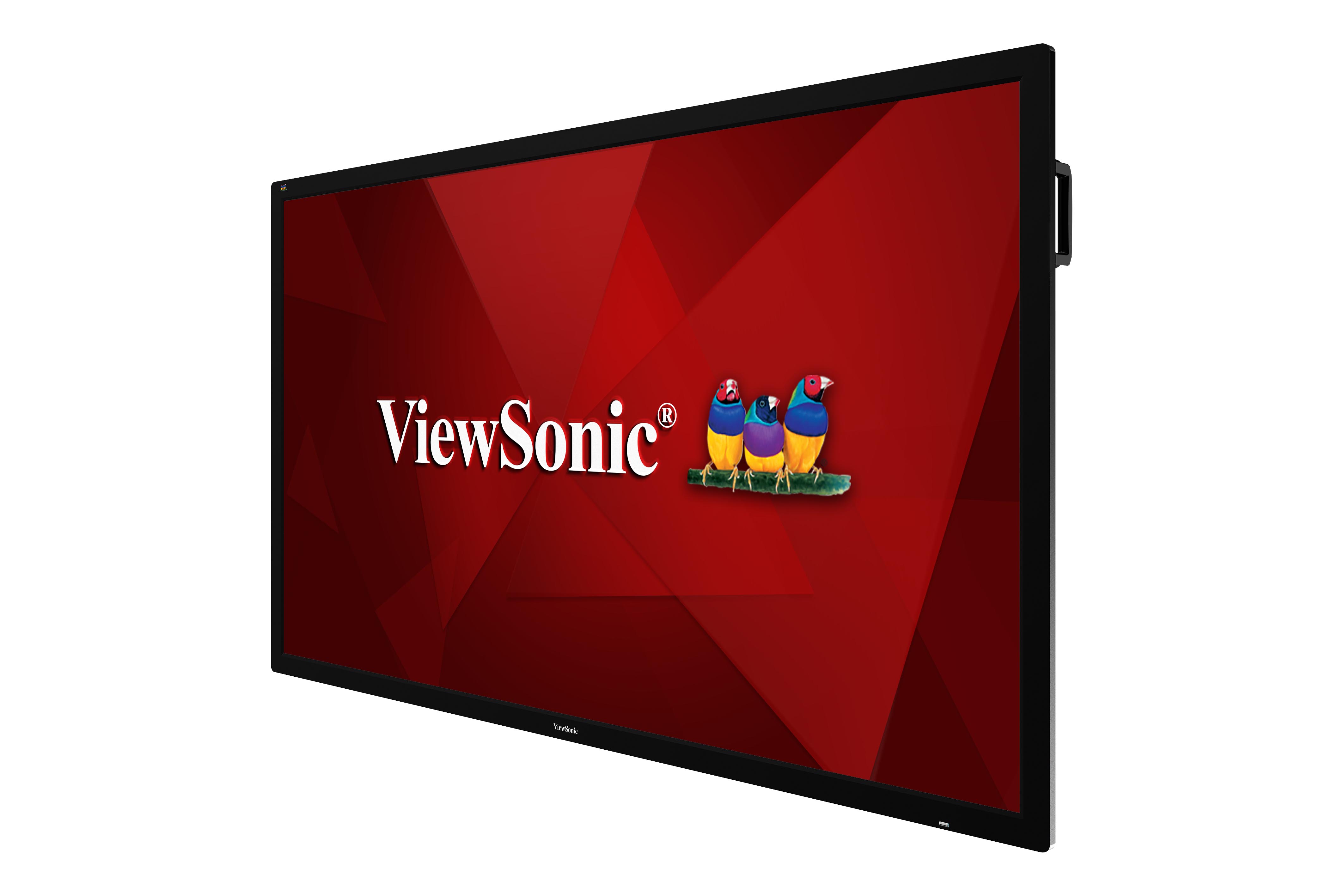

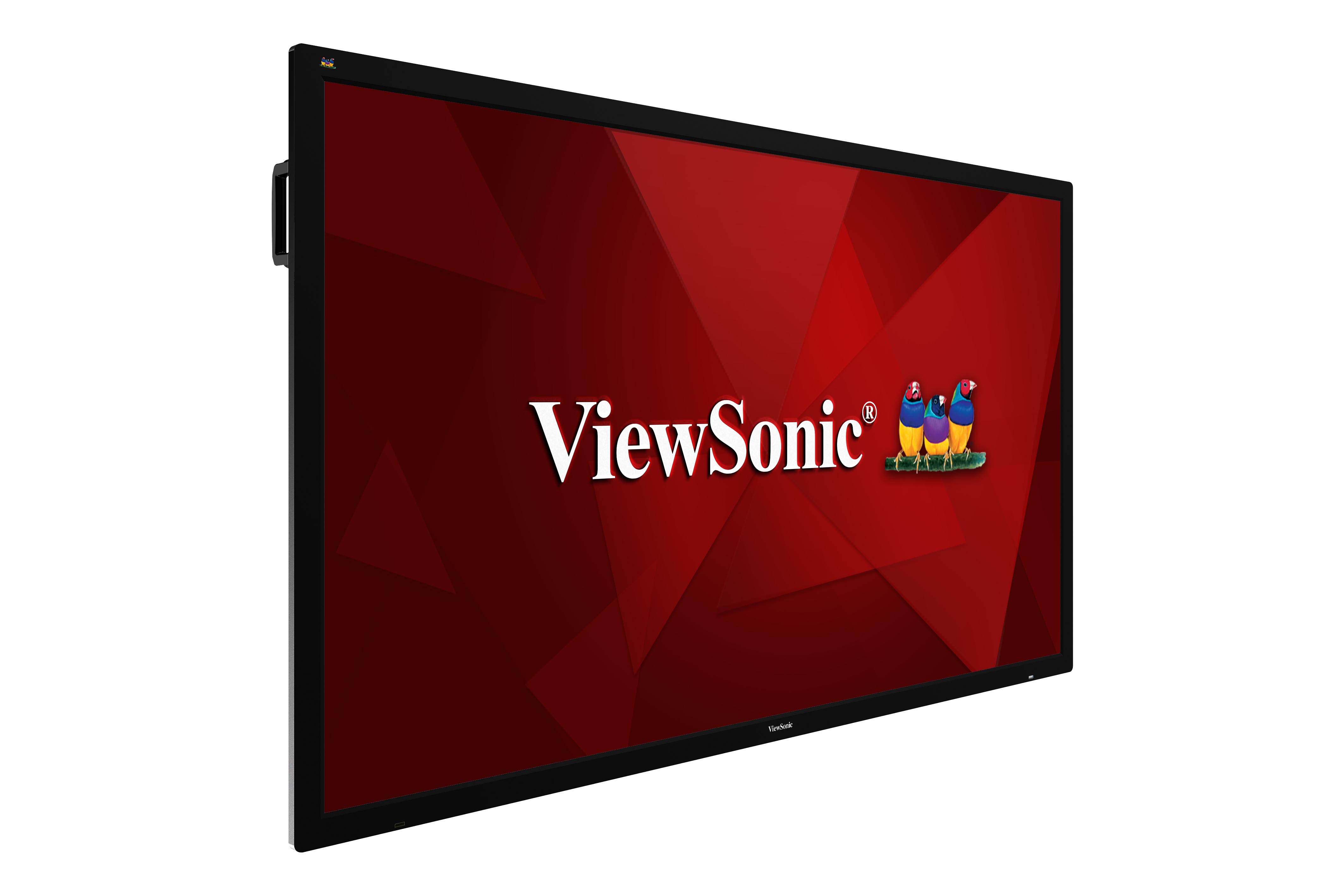

75" 4K Ultra HD Commercial Display
- Pre-installed ViewBoard® Cast and Zoom
- USB multimedia player
- Supports HDMI CEC pass-through
- Flicker-free and Blue Light Filter eye-care technologies
- HDMI, VGA, RS232, RJ45 input compatibility
스펙
- LCD PANEL패널 크기: 75"
유형/기술: TFT LCD Module with LED Backlight
표시면적(mm): 1649.66(H) x 927.94(V)
가로 세로 비율: 16:9
결의안: 3840 x 2160
Colors: 1.07B colors (10bit)
밝기: 450 nits(typ.) 400nits(min.)
대비 비율: 1200:1 (typ.)
응답 시간: 8 ms
보기 각도: H = 178, V = 178 (typ.)
Backlight: DLED
백라이트 라이프: 30,000 Hours

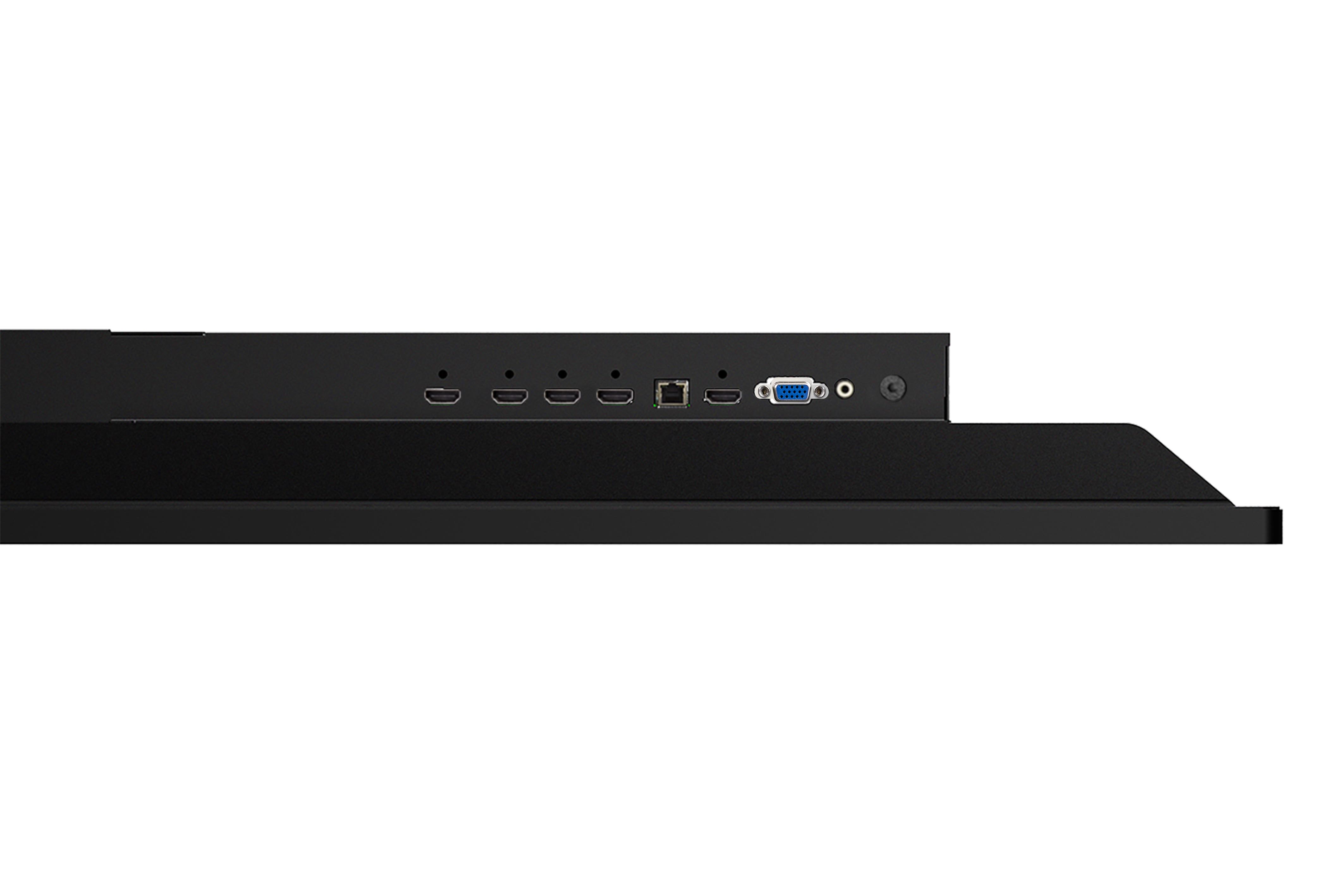

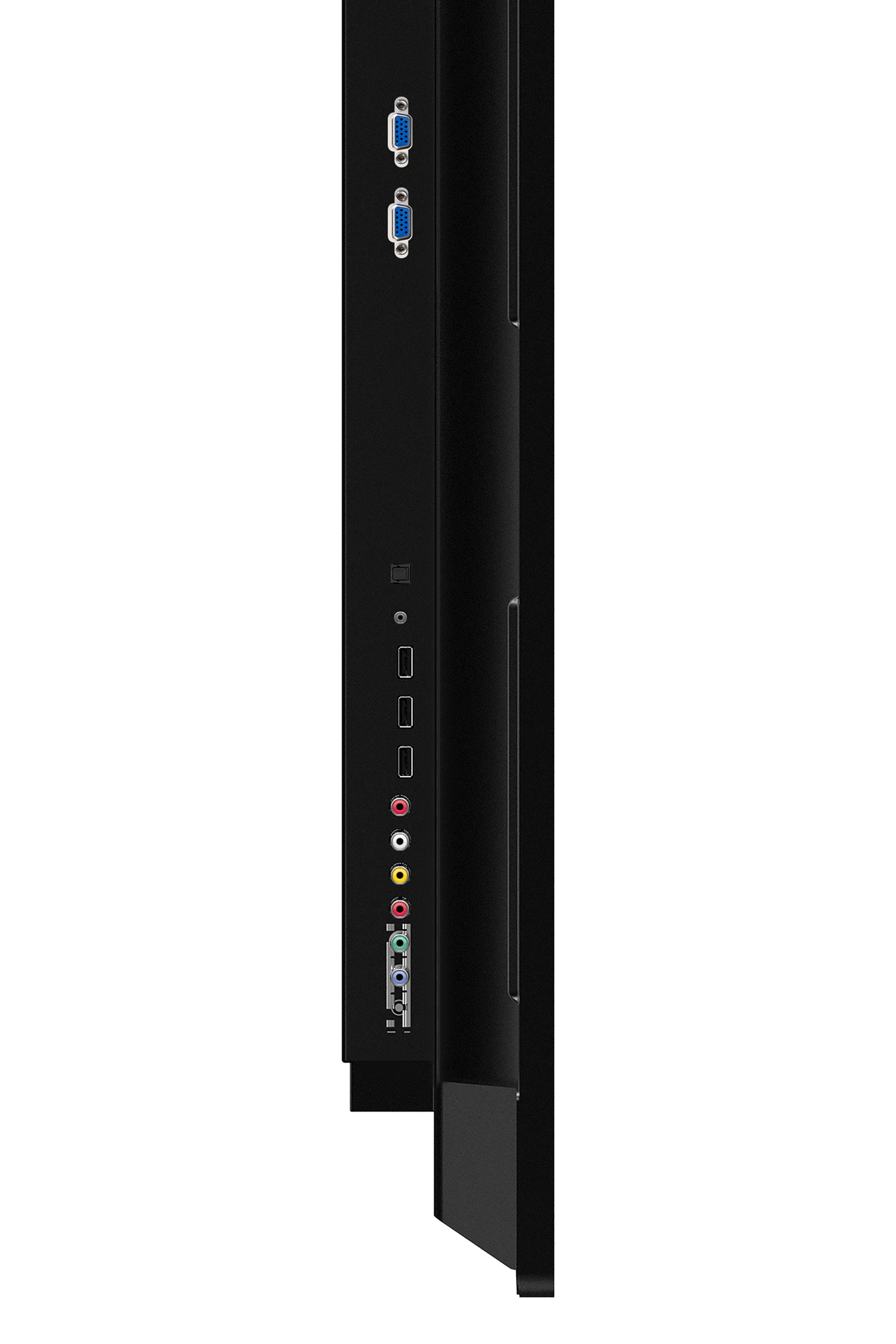

오리엔테이션: Landscape / Portrait - INPUTHDMI: x 4
RGB / VGA: x 1
오디오: x 1
CVBS: x 1
YPbPr: x 1
RS232: x 1
OPS: x 1 PC Slot (Intel OPS Standard)
x1 SDM - OUTPUTHDMI: x 1 (for one of HDMI1/2/3)
Audio (Earphone out): x 1
SPDIF: x 1
RS232: x 1
- LANRJ45: x 1
- USB2.0 Type A: x 2 (side x1, top x1)
3.0 Type A: x 2 (side) - 스피커20W x 2
- BUILT-IN PC프로세서: ARM Cortex A53 Quad Core 1.5G Hz CPU
기억: 2GB
보관소: 16GB - COMPATIBILITYVGA: Refer to timing table
HDMI: 480i, 480p,720p, 1080p, up to 2160p
CVBS: 480i - POWER전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

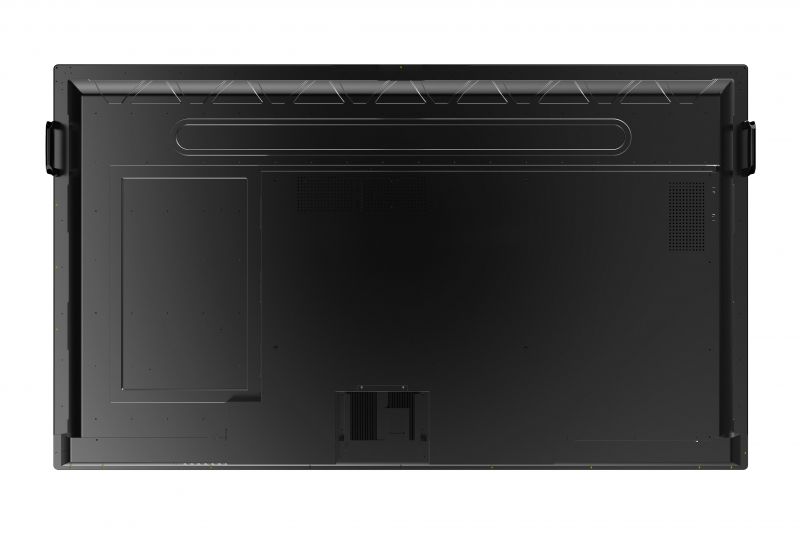

소비.: 300 W - ERGONOMICS벽면 장착(VESA® ): 600 x 400mm; Screw: M8 x 20mm
- OPERATING CONDITIONS온도(θ C): 32°F to 104°F (0°C to 40°C)
습도: 10% ~ 90% non-condensing - DIMENSIONS (W x H x D)Physical w/o Stand (mm / inch): 1735.4 x 1014.0 x 93.2 mm / 68.32 x 39.92 x 3.67 inch
Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 45.87 x 12.60 in - WEIGHTNet w/o Stand (kg / lb): 43.05 kg / 94.91lbs
Gross (kg / lb): 65.40 kg / 144.18lbs - What's in the box?1. Power cable(1.5 meters) x 4 (EU, AU, UK, US)
2. Remote control with batteries
3. User manual CD wizard
