USB: USB2.0 –typeA x 2 ; USB2.0 –typeB x 1 ; USB -type C x 1 HDMI-IN: Yes HDMI-OUT: Yes HDBaseT: TX x 1
SUPPORTED FILE FORMAT
Video + External Audio: MP4
POWER
AC adapter: AC Input voltage 100~240VAC, 50-60 Hz (universal), AC input current : 0.6A Aac max DC output voltage : 5 V dc ( typical) DC output current : 4.0 A ( typical)
INTERFACE

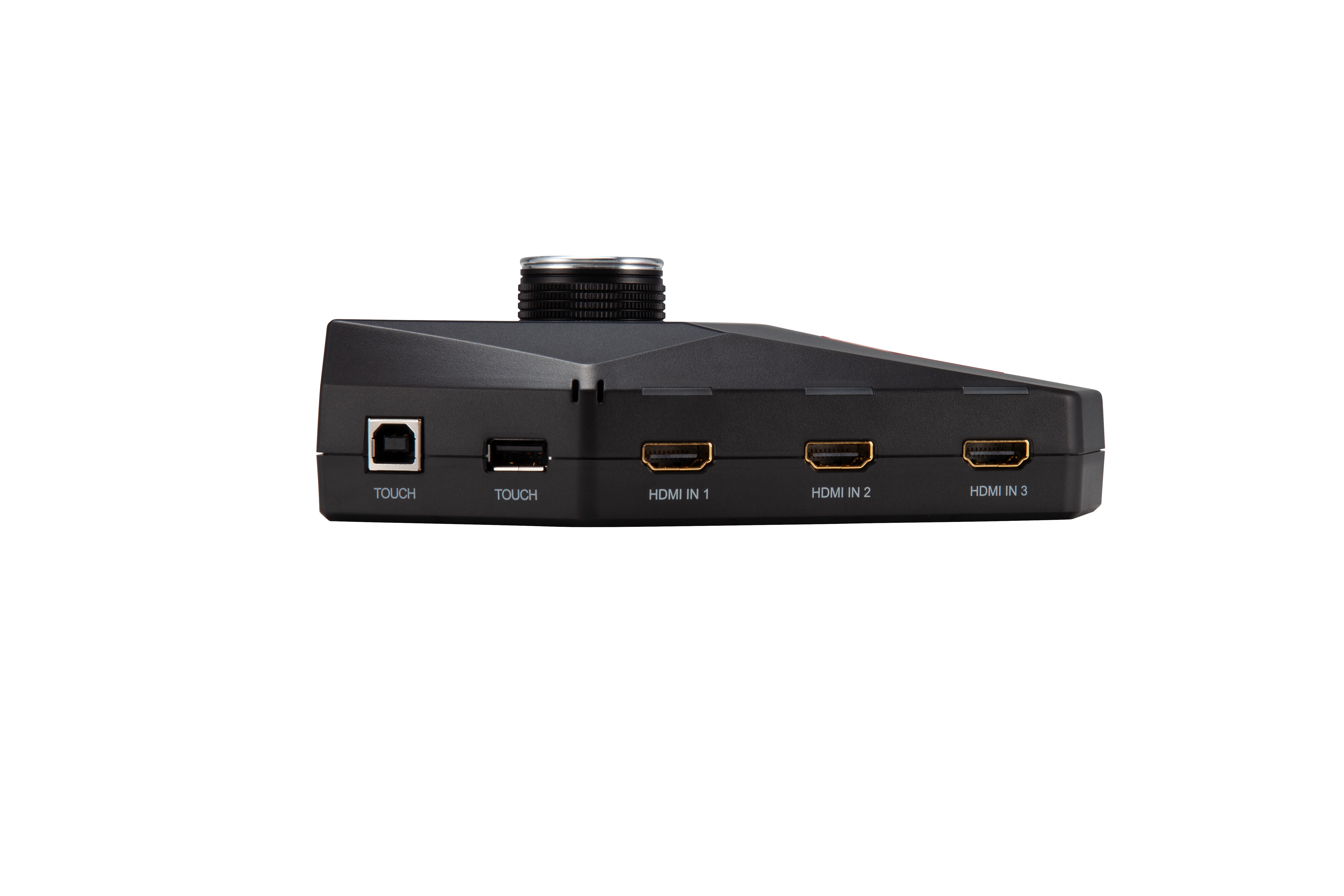

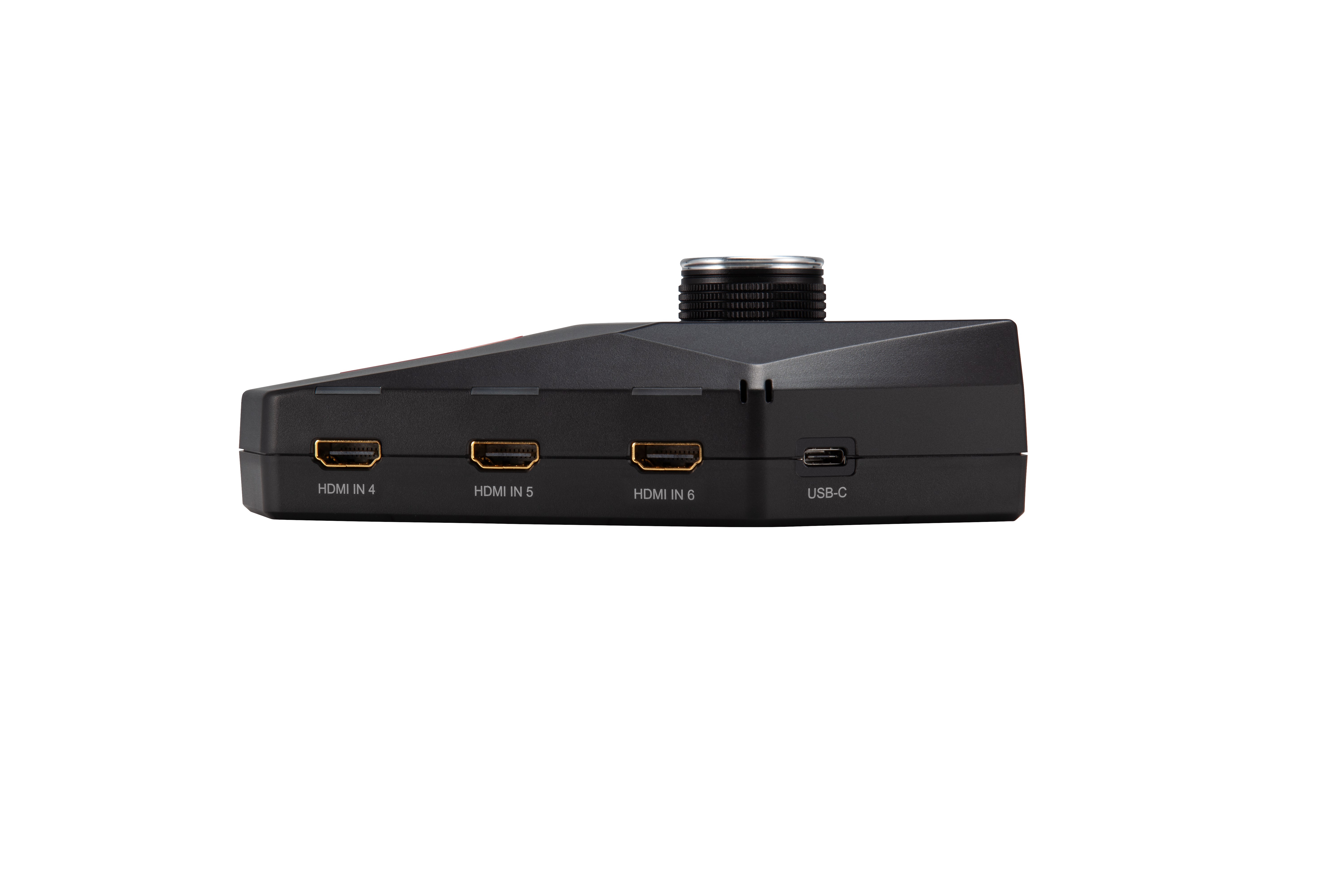

I/O ports: HDMI-IN x6 HDMI-OUT x1 HDBaseT TX x1 USB2.0 –typeA x 2 USB2.0 –typeB x 1 USB -type C x
OPERATING CONDITION
Temperature/Humidity Charging temperature range of handset Altitude: 0°C to 40°C
STORAGE CONDITION
Temperature/Humidity Storing temperature range Altitude: -20°C to 60°C 20%~90% non-condensing -20~60°C [-4~140°F]
INCLUDED ACCESSORIES
The top-level assembly shall contain: 1. VSH100 2. Quick Start Guide 3. HDMI cable x 2
DIMENSIONS
Physical (W xH xD): 150.19 x 56.3 x 169.68 mm ( 5.9 x 2.2x 6.6 inches) Kraft Box (W xH x D): 210 x 189 x 111 mm (8.26 x 7.44 x 4.37inches)
WEIGHT
Physical (Net): 537.6 g (1.18lb) Kraft Box (Gross): 1400 g (3.08lb)
