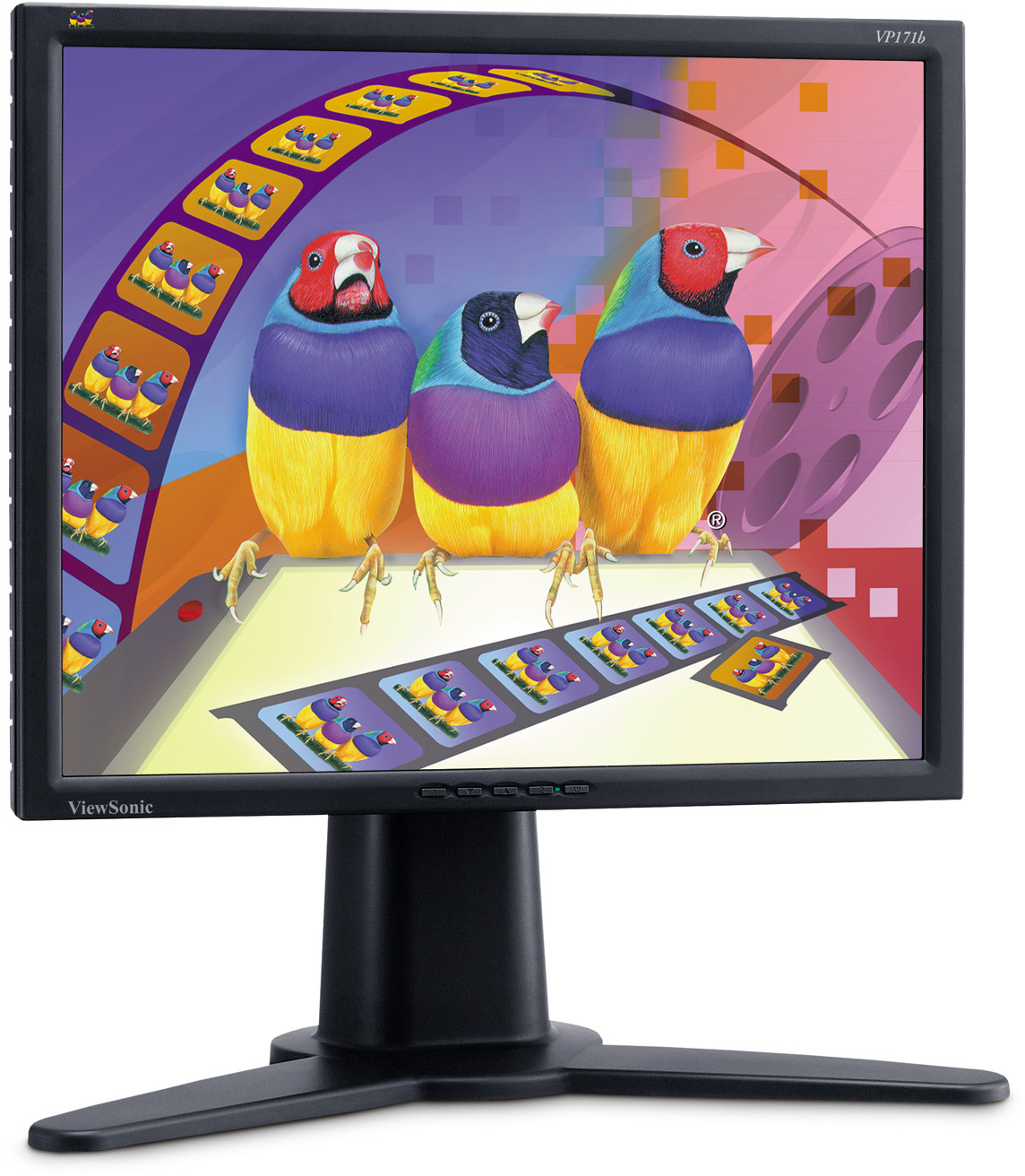

ViewSonic VP171b Broaden your horizon with this ultra-narrow frame.

Caratteristiche principali

Descrizione del prodotto

Whether you’re a graphics professional, corporate executive, or power gamer, the VP171b (black) and VP171s (metallic-on-black) LCD monitors will enhance your productivity and enjoyment. Their THINEDGE ULTRA-SLIM BEZEL DESIGN enables multiple-display configurations in immaculate digital high-definition clarity for powerful multi-tasking and mixed-media data analysis. XtremeView™ wide viewing angles and Metallic-on-black ClearMotiv™ 8ms broadcast-quality video response ensure intense visual performance. Class-leading features include comprehensive HEIGHT, PIVOT, TILT AND SWIVEL adjustments as well as multiple digital/analogue inputs.

Visita noi

www.viewsonic.com

COLORS

Black

LCD

Tipo:	43cm / 17" colour TFT active matrix SXGA LCD
Contrasto:	500:1 (typ)
Angolo visuale:	140° horizontal, 130° vertical (at 10:1) 160° horizontal, 160° vertical (at 5:1)
Glass Surface:	Anti-glare
Display Area:	33,8cm (horizontal) X 26,9cm (vertical); 43,2cm diagonal
Optimum Resolution:	1280 x 1024
Tempo di risposta:	8ms (typ)
Colour Support:	16.2M colours (6-bit+2-bit FRC)
Luminosità:	300 cd/m² (typ)

COMPATIBILITY

Mac®: Power MacTM G3/G4 up to 1280 x 1024

PC: Compatible from VGA up to 1280 x 1024 non-interlaced
DIMENSIONS

Prodotto senza imballaggio (LxPxH): 392mm x 350mm x 238mm (w/ stand)
371mm x 309mm x 65mm (w/o stand)
CONNECTOR

Analogue: 15-pin mini D-sub

Digital: Digital DVI-D

Alimentazione: 3-pin plug
POWER

Voltaggio: AC 100-240V (universal), 50-60Hz

Consumo: 3W (typ); ≤ 2 watt in power save mode

CONTROLS

Basic:	Power, 1, down, up, 2
OnView®:	Auto image adjust, contrast, brightness, input select, colour adjust (9300K, 6500K, 5400K, 5000K, user colour), information (mode, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, touch tone), memory recall

OPERATING CONDITIONS

Temperatura: 0-40°C

Umiditá: 10-90% (non-condensing)
WEIGHT

Prodotto senza imballaggio: 6.5 kg (w/ stand); 4.2 kg (w/o stand)
VIDEO INPUT

Frequency: Fh: 30~82kHz, fv: 50~85Hz

Sync: H/V separated (TTL), composite sync-on-green

Analogue: Two RGB Analogue (75 ohms, 0.7/1.0 Vp-p)

Digital: DVI-D (TMDS, 100 ohms)
POWER MANAGEMENT

Meets TCO and Energy Star® standards

Mac®:	Power MacTM G3/G4 up to 1280 x 1024
PC:	Compatible from VGA up to 1280 x 1024 non-interlaced

Analogue:	15-pin mini D-sub
Digital:	Digital DVI-D
Alimentazione:	3-pin plug

Voltaggio:	AC 100-240V (universal), 50-60Hz
Consumo:	3W (typ); ≤ 2 watt in power save mode

Frequency:	Fh: 30~82kHz, fv: 50~85Hz
Sync:	H/V separated (TTL), composite sync-on-green
Analogue:	Two RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Digital:	DVI-D (TMDS, 100 ohms)

Temperatura:	0-40°C
Umiditá:	10-90% (non-condensing)
