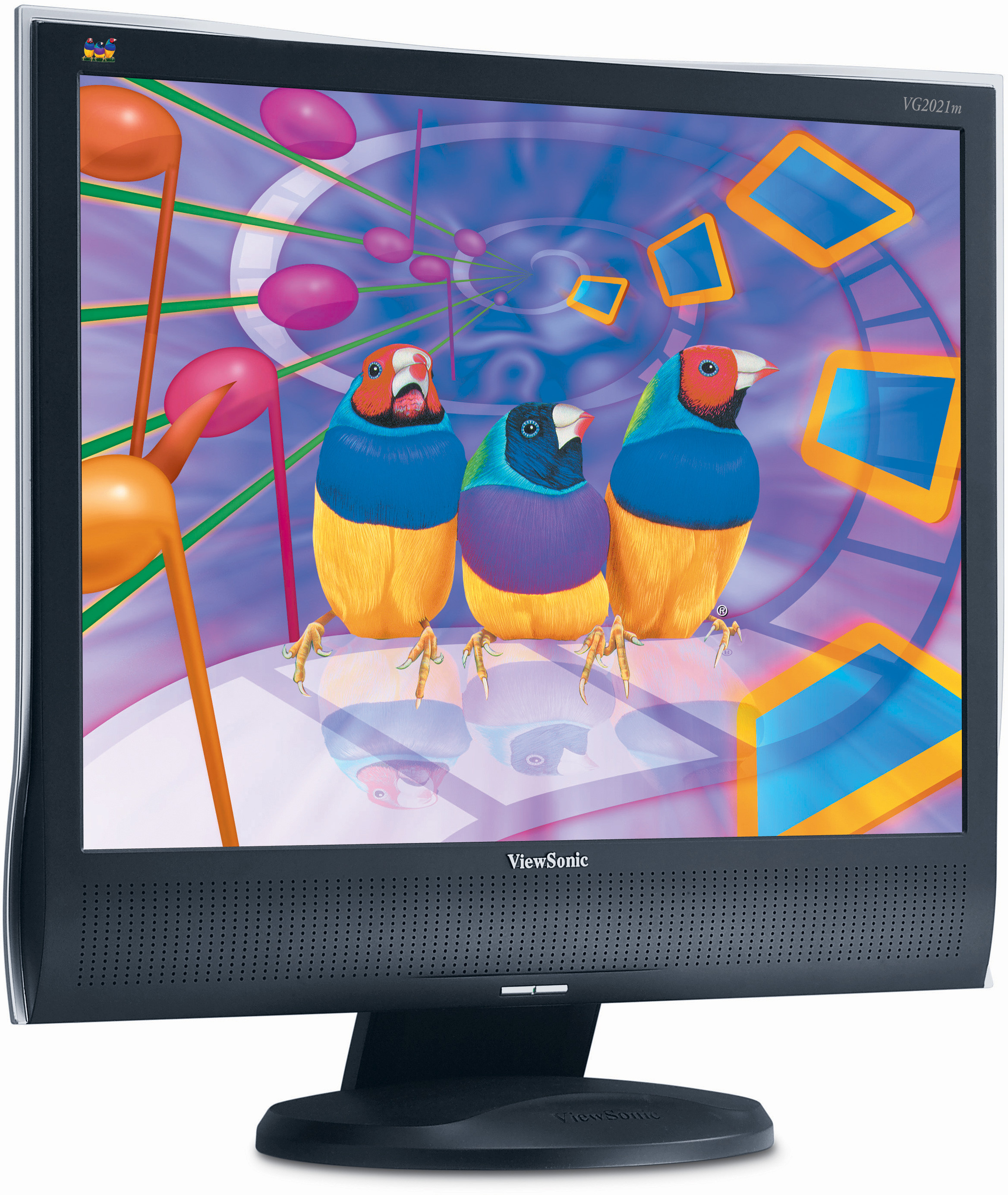

ViewSonic VG2021m 20" MEDIA GRAPHICS SERIES LCD MONITOR

Caratteristiche principali

Descrizione del prodotto

ViewSonic’s VG2021m 20" sleek two-tone LCD is your top choice in high-performance multimedia monitors. Class-leading features like ClearMotiv™ 8ms broadcast-quality video response DELIVER SUPERIOR CLARITY AND PERFECT FOCUS WHEN VIEWING MOVING IMAGES. You will enjoy a superb multimedia experience with the bezel-integrated speakers. Crystal-clear pictures featuring 300cd/m² brightness (typ.) along with ergonomic adjustments enhance productivity in graphic production, medical and financial fields. Professionals demanding high performance, elegant design, and great value will choose the ViewSonic VG2021m LCD monitor.

Visita noi

www.viewsonic.com

LCD

Tipo:	50.80cm (20") TN colour TFT active matrix SXGA+ LCD
Contrasto:	500:1 (typ.)
Angolo visuale:	150° horizontal, 130° vertical (at 10:1) 170° horizontal, 155° vertical (at 5:1)
Luminosità:	300 cd/m² (typ.)
Display Area:	40.9cm horizontal x 30.6cm vertical; 50.8cm diagonal
Optimum Resolution:	1400 x 1050
Tempo di risposta:	8ms (off-on-off) (typ.)
Tecnologia:	Long life, 50000 hrs. (typ.)
Panel Surface:	Anti-glare
Pixel Pitch:	0.292mm
Colour Support:	16.2M colours (6-bit + 2-bit FRC)
Pixel Clock:	140MHz

COMPATIBILITY

PC: VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Mac®: Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
DIMENSIONS

Physical With Stand: 458 x 465 x 205

Physical Without Stand: 459 x 404 x 61

W x H x D mm: 520 x 520 x 160
CONTENUTO DELLA CONFEZIONE

LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers)
AUDIO

Speaker: 2 x 2.5 watt integrated stereo speakers
CONNECTOR

Analogue: 15-pin mini D-sub (detachable cable)

Alimentazione: 3-pin AC plug (CEE22)

Audio: 3.5mm stereo audio line-in
POWER

Voltaggio: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consumo: 55 watt (max.), <1 watt in power save mode

CONTROLS

Basic:	Power, menu [1], down, up, select [2], mute
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), audio (volume, mute), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatura: 5°C – 35°C

Umiditá: 20% – 80% (non-condensation)
WEIGHT

Net With Stand: 6.2kg
VIDEO INPUT

Frequency: Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7 Vp-p , 75 ohms)
POWER MANAGEMENT

Meets TCO’03 and Energy Star standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA® FPMPMI 75mm x 75mm

PC:	VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
Mac®:	Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Physical With Stand:	458 x 465 x 205
Physical Without Stand:	459 x 404 x 61
W x H x D mm:	520 x 520 x 160

Analogue:	15-pin mini D-sub (detachable cable)
Alimentazione:	3-pin AC plug (CEE22)
Audio:	3.5mm stereo audio line-in

Voltaggio:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumo:	55 watt (max.), <1 watt in power save mode

Temperatura:	5°C – 35°C
Umiditá:	20% – 80% (non-condensation)

Frequency:	Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz
Sync:	H/V separated (TTL)
Analogue:	RGB analogue (0.7 Vp-p , 75 ohms)
