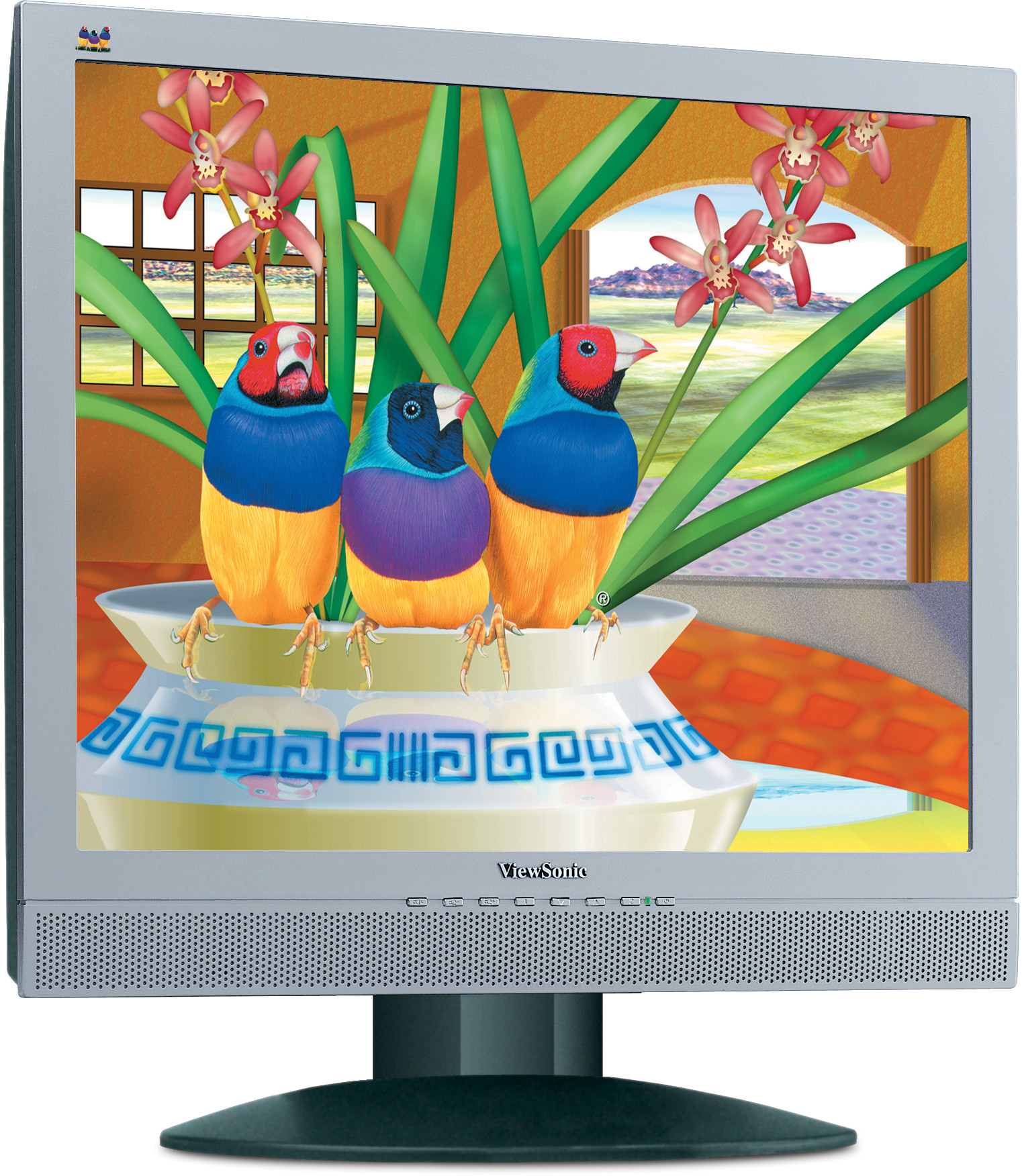

ViewSonic VE920m ERGONOMIC 19" LCD MONITOR WITH MULTIMEDIA

LCD

Tipo:	48cm / 19" TN colour TFT active matrix SXGA LCD
Contrasto:	400:1 (typ.)
Angolo visuale:	150° horizontal, 130° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Luminosità:	280cd/m² (typ.)
Display Area:	37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
Optimum Resolution:	1280 x 1024
Tempo di risposta:	8ms (off-on-off) (typ.)
Tecnologia:	Long life, 50000 hrs. (typ.)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.294mm
Colour Support:	16.2M colours (6-bit+2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced (max. 75Hz)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz)
DIMENSIONS

Physical With Stand: 423 x 434 – 534 x 221 (with stand)

Physical Without Stand: 423 x 381 x 52 (without stand)
CONTENUTO DELLA CONFEZIONE

LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers)
AUDIO

Speaker: 2 x 1-watt

Amplifier: 1-watt @ THD < 8%
CONNECTOR

Analogue: 15-pin mini D-Sub (attached cable)

Audio: 3.5mm stereo audio line-in

Alimentazione: 3-pin AC plug (CEE22)
POWER

Voltaggio: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consumo: 35 watt (typ.) <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], down, up, select [2], mute

OSD:

Auto image adjust, contrast, brightness, audio (volume, mute), ViewMatch®
colour adjust (sRGB, 9300K, 6500K, 5400K, User-RGB), information
(resolution, H/V frequency, pixel clock, model number, serial number,
website), manual image adjust (H/V position, H size, fine tune, sharpness),
setup menu (language, resolution notice, OSD position, OSD timeout,
OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatura: 0°C – 40°C

Umiditá: 10% – 90% (non-condensation)
WEIGHT

Net With Stand: 5.2kg (with stand)

Net Without Stand: 4kg (without stand)
VIDEO INPUT

Sync: H/V separate (TTL)

Analogue: RGB analogue (0.7 Vp-p, 75 ohm)

Frequency: Fh: 30 ~ 82kHz, Fv: 50 ~ 85Hz
POWER MANAGEMENT

Meets TCO’03 and Energy Star® standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA® FPDM 100mm x 100mm
ERGONOMICS

Inclinazione: Down 5°, up 20°

Height Adjustment: 0 ~ 100mm

PC:	VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz)

Physical With Stand:	423 x 434 – 534 x 221 (with stand)
Physical Without Stand:	423 x 381 x 52 (without stand)

Analogue:	15-pin mini D-Sub (attached cable)
Audio:	3.5mm stereo audio line-in
Alimentazione:	3-pin AC plug (CEE22)

Voltaggio:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumo:	35 watt (typ.) <1 watt in power save mode

Temperatura:	0°C – 40°C
Umiditá:	10% – 90% (non-condensation)

Net With Stand:	5.2kg (with stand)
Net Without Stand:	4kg (without stand)

Sync:	H/V separate (TTL)
Analogue:	RGB analogue (0.7 Vp-p, 75 ohm)
Frequency:	Fh: 30 ~ 82kHz, Fv: 50 ~ 85Hz

Speaker:	2 x 1-watt
Amplifier:	1-watt @ THD < 8%

Inclinazione:	Down 5°, up 20°
Height Adjustment:	0 ~ 100mm
