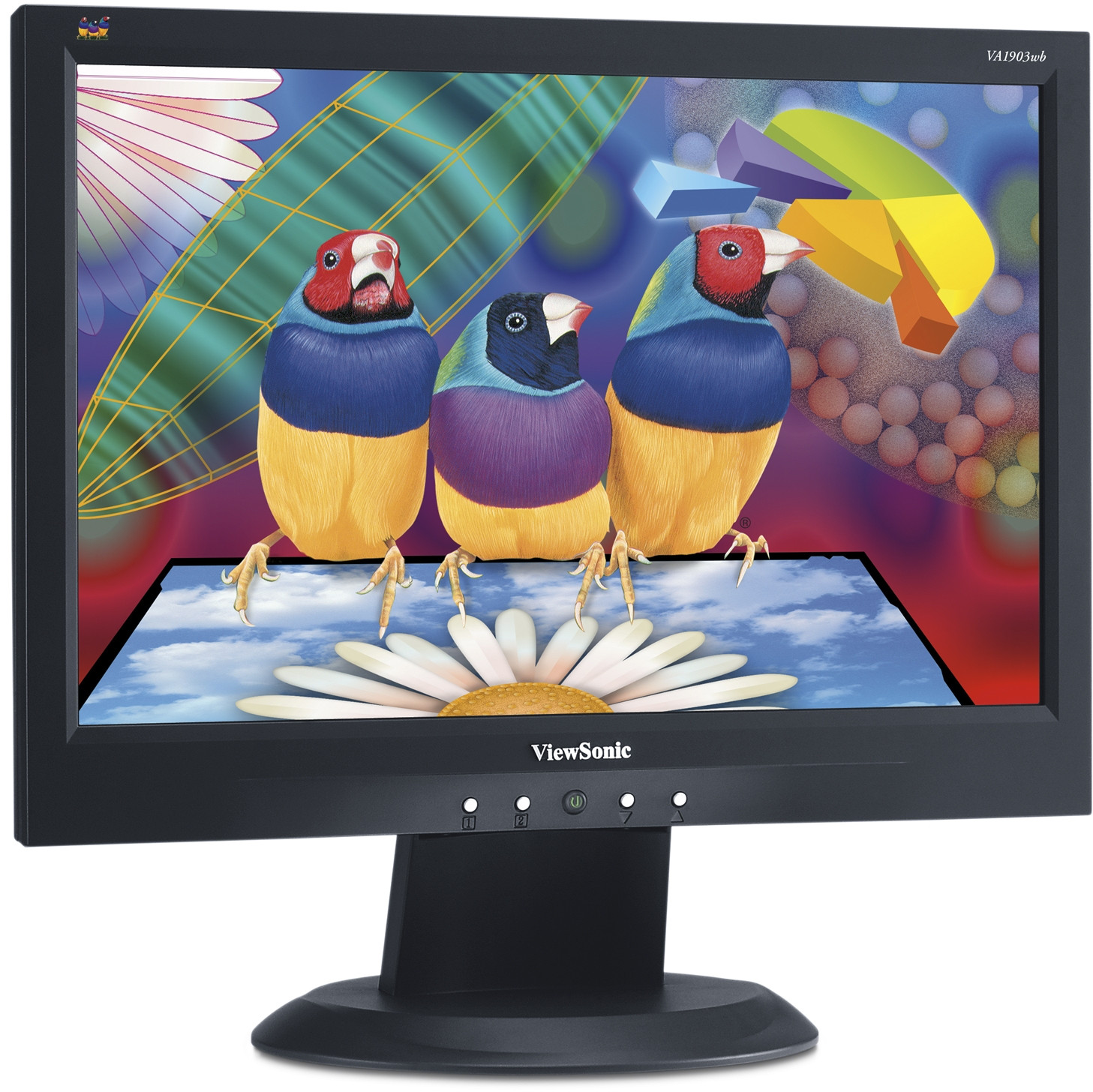

ViewSonic VA1903wb 19” WIDESCREEN LCD MONITOR VALUE SERIES WITH 5MS VIDEO RESPONSE TIME

Caratteristiche principali

Descrizione del prodotto

ViewSonic’s VA1903wb LCD brings the enjoyment of panoramic widescreen to the masses. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS or side-by-side full page layouts. Thanks to a SUPER-FAST 5MS response time together with 300cd/m² brightness levels and high 700:1 contrast, you get to enjoy superior blur-free clarity, amazing colour and stunning brightness. The VA1903wb delivers on ViewSonic’s tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It’s the easy choice for gamers, home/small office users and corporate professionals.

Visita noi

www.viewsonic.com

COLORS

Black

LCD

Tipo:	19” Wide TN colour TFT active matrix WXGA+ LCD
Contrasto:	700:1 (typ.)
Angolo visuale:	160° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Luminosità:	300 cd/m²
Display Area:	41.2cm horizontal x 25.4cm vertical, 48.3cm diagonal
Optimum Resolution:	1440 x 900@60Hz
Tempo di risposta:	5ms (off-on-off) (typ.)
Tecnologia:	Long life, 50000 (min.)
Rapporto d'aspetto:	16:9
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.285mm
Colour Support:	16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock:	140MHz

COMPATIBILITY

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
DIMENSIONS

Physical With Stand: 448 x 404 x 210

Physical Without Stand: 448 x 318 x 63

W x H x D mm: 520 x 473 x 158
CONTENUTO DELLA CONFEZIONE

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
CONNECTOR

Analogue: 15-pin mini D-sub (detachable cable)

Alimentazione: 3-pin AC plug (CEE22)
POWER

Voltaggio: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consumo: 33 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:	Power, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatura: 0°C – 40°C

Umiditá: 10% – 90% (non-condensation)
WEIGHT

Net With Stand: 4.4kg

Prodotto con imballaggio: 5.6kg
VIDEO INPUT

Frequency: Fh: 24–82kHz, Fv: 50–75 Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
POWER MANAGEMENT

TCO’03 and Energy Star standards
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Inclinazione: Down 5°, Up 20°

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced

Physical With Stand:	448 x 404 x 210
Physical Without Stand:	448 x 318 x 63
W x H x D mm:	520 x 473 x 158

Analogue:	15-pin mini D-sub (detachable cable)
Alimentazione:	3-pin AC plug (CEE22)

Voltaggio:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumo:	33 watt (typ.), <1 watt in power save mode

Temperatura:	0°C – 40°C
Umiditá:	10% – 90% (non-condensation)

Frequency:	Fh: 24–82kHz, Fv: 50–75 Hz
Sync:	H/V separated (TTL)
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Net With Stand:	4.4kg
Prodotto con imballaggio:	5.6kg
