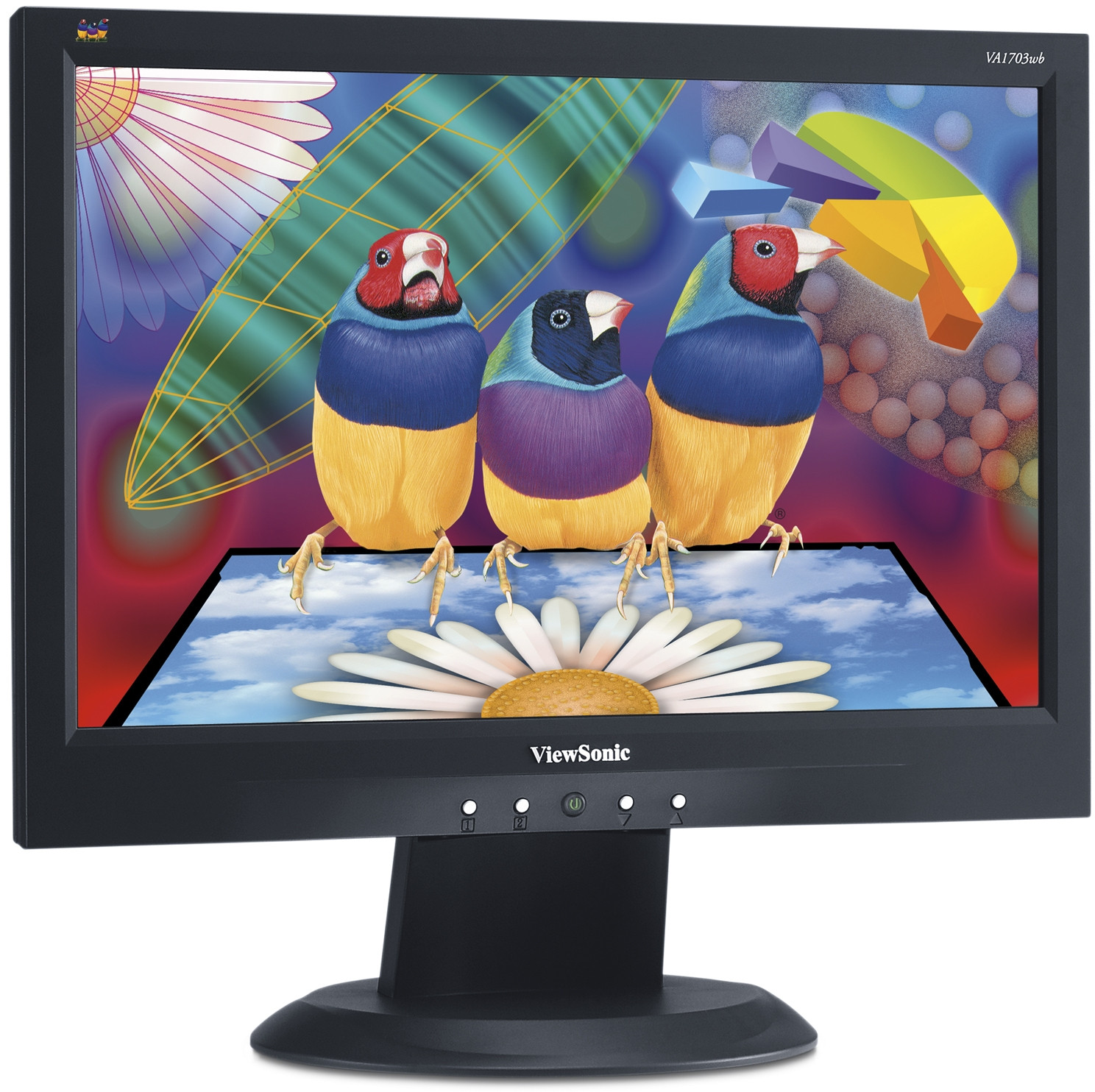

ViewSonic VA1703wb 17” WIDESCREEN LCD MONITOR VA SERIES WITH 8MS VIDEO RESPONSE TIME

Caratteristiche principali

Descrizione del prodotto

ViewSonic's 17” VA1703wb LCD brings panoramic widescreen to everyone. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS, side-by-side full-page layouts, and immersive gaming that virtually surrounds the user. With ClearMotiv® video response, you get to enjoy extreme clarity, amazing colour and stunning brightness.The VA1703wb delivers on ViewSonic's tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It's the easy choice for gamers, home/small office users and corporate professionals.

Visita noi

www.viewsonic.com

COLORS

Black

LCD

Tipo:	17” Wide TN colour TFT active matrix WXGA+ LCD
Contrasto:	500:1 (typ.)
Angolo visuale:	150° horizontal, 130° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Luminosità:	250 cd/m² (typ.)
Display Area:	36.7cm horizontal x 23.0cm vertical, 43.2cm diagonal
Optimum Resolution:	1440 x 900@60Hz
Tempo di risposta:	8ms (off-on-off) (typ.)
Tecnologia:	Long life, 30000 (min.)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.255mm
Colour Support:	262k colours supported (6-bit)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
DIMENSIONS

Physical With Stand: 407 x 375 x 210

Physical Without Stand: 407 x 293 x 63

W x H x D mm: 456 x 420 x 156
CONTENUTO DELLA CONFEZIONE

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
CONNECTOR

Analogue: 15-pin mini D-sub (detachable cable)

Alimentazione: 3-pin AC plug (CEE22)
POWER

Voltaggio: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consumo: 25 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:	Power, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatura: 0°C – 40°C

Umiditá: 10% – 80% (non-condensation)
WEIGHT

Net With Stand: 3.2kg

Net Without Stand: 2.9kg

Prodotto con imballaggio: 4.0kg
VIDEO INPUT

Frequency: Fh: 24–82kHz, Fv: 50–75 Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
POWER MANAGEMENT

Meets MPR II and ENERGY STAR standards
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 75mm x 75mm
ERGONOMICS

Inclinazione: Down 5°, Up 20°

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced

Physical With Stand:	407 x 375 x 210
Physical Without Stand:	407 x 293 x 63
W x H x D mm:	456 x 420 x 156

Analogue:	15-pin mini D-sub (detachable cable)
Alimentazione:	3-pin AC plug (CEE22)

Voltaggio:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumo:	25 watt (typ.), <1 watt in power save mode

Temperatura:	0°C – 40°C
Umiditá:	10% – 80% (non-condensation)

Net With Stand:	3.2kg
Net Without Stand:	2.9kg
Prodotto con imballaggio:	4.0kg

Frequency:	Fh: 24–82kHz, Fv: 50–75 Hz
Sync:	H/V separated (TTL)
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
