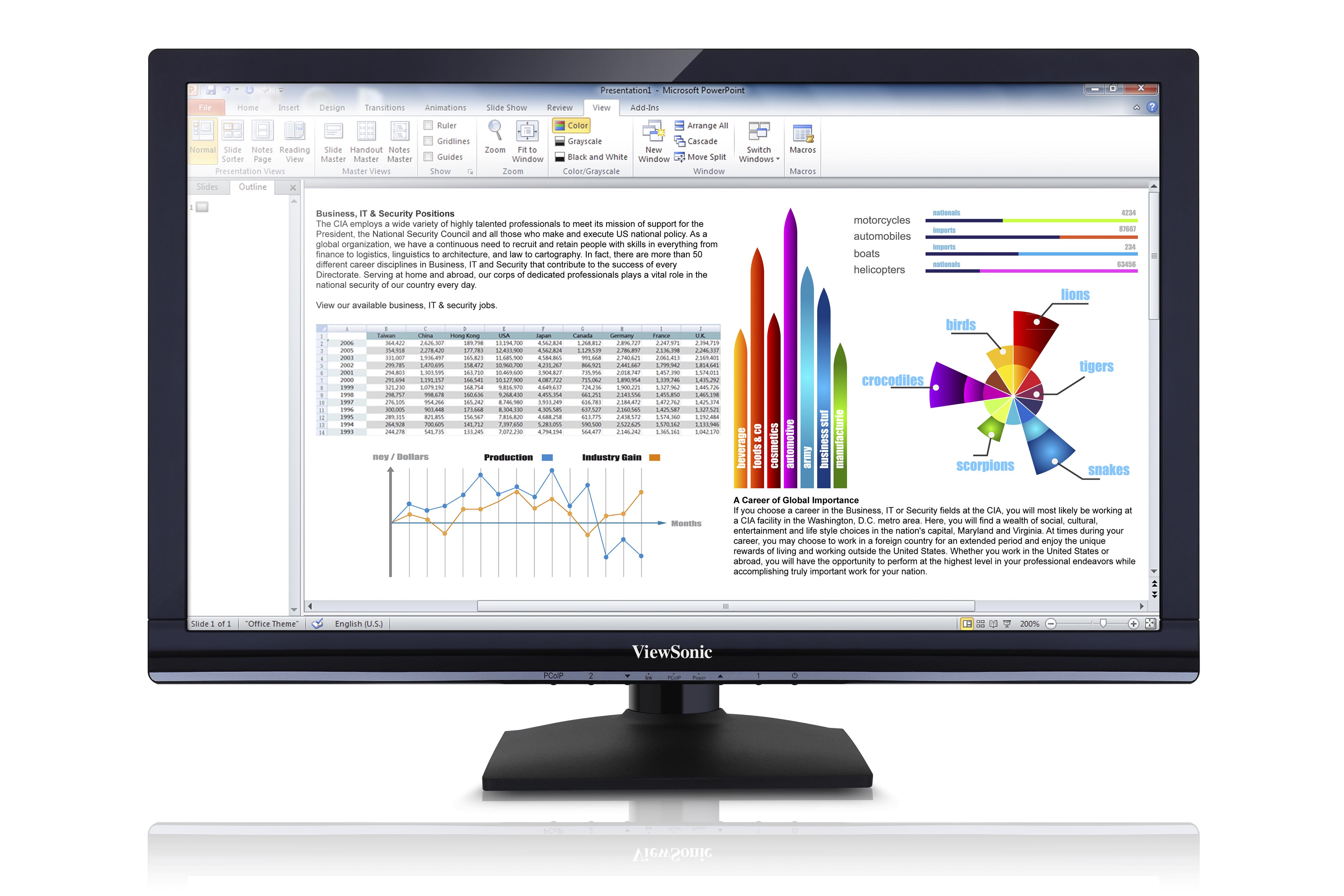

ViewSonic SD-Z245 Perfect Solution for a Seamless Desktop Experience

Caratteristiche principali

Descrizione del prodotto

The ViewSonic® SD-Z245 24" (23.6" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z245 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z245 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.

Visita noi

www.viewsonic.com

LCD

Tipo:	24" (23.6" viewable) Wide Colour TFT Active Matrix LED
Effective Viewing Area:	170º horizontal, 160º vertical
Contrasto:	1000:1 (typ.)
Display Area:	20.5" horizontal x 11.5" vertical; 23.6" diagonal
Optimum Resolution:	1920 x 1080
Tempo di risposta:	5ms (typ.)
Panel Surface:	Anti-glare, hard-coating (3H)
Luminosità:	250 cd/m2 (typ.)
Contrasto dinamico:	20,000,000:1
Backlight:	White-light LED
Durata (ore):	30,000 hours (min.)

COMPATIBILITY

PC: PC compatibles (VGA up to 1920x1080 non-interlaced)

Mac®: Up to 1920x1080

DIMENSIONS

Physical With Stand:	22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
Physical Without Stand:	22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
Packaging:	24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm

CONTENUTO DELLA CONFEZIONE

1.SD-Z245 Zero Client Monitor

2.power cord

3.power adapter

4.VGA cable

5.Quick Start Guide

6.ViewSonic Wizard CD

CONNECTOR

Alimentazione:	External power adapter
Entrata Video:	15-pin mini D-sub (VGA)
Video Output:	DVI-I (x1)
USB:	USB 2.0 (x4)
Headphone:	3.5mm mini jack (x1)
LAN:	RJ45 (x1)
Audio line in:	3.5mm mini jack (x1)
Ingresso microfono:	3.5mm mini jack (x1)

POWER

Voltaggio: AC 100-240 V (universal), 50/60 Hz

Consumo: 28W (typ)

CONTROLS

Basic:	PCoIP, 2, Down, Up, 1, Power
OSD:	Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)

OPERATING CONDITIONS

Temperatura: 32–95ºF (0–35ºC)

Umiditá: 15–90% (non-condensing)
WEIGHT

Net With Stand: 11.2 lb. / 5.1 kg

Net Without Stand: 8.6 lb. / 3.9 kg

Prodotto con imballaggio: 14.6 lb / 6.6 kg
VESA® MOUNT

100mm x 100mm
MEMORY

System: DDR3 512MB @ 1066MHz

Archiviazione: None
VIDEO INPUT

Analog/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Frequency: Fh: 24~82kHz, Fv: 50~75Hz

Sync: Separate Sync
ERGONOMICS

Inclinazione: Forward 5º / Back 20º
CORE

CPU: Teradici Tera2321

Image Performance: 50Mpps (DVI out)
GRAPHICS

Chipset: None

Risoluzione: 1920 x 1200 (for single display)
COMMUNICATION

Ethernet LAN: 10/100/1000 MB
SOFTWARE

Protocols: VMware PCoIP
AUDIO

Speakers: 2-watt (x2)

PC:	PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac®:	Up to 1920x1080

Voltaggio:	AC 100-240 V (universal), 50/60 Hz
Consumo:	28W (typ)

Temperatura:	32–95ºF (0–35ºC)
Umiditá:	15–90% (non-condensing)

Net With Stand:	11.2 lb. / 5.1 kg
Net Without Stand:	8.6 lb. / 3.9 kg
Prodotto con imballaggio:	14.6 lb / 6.6 kg

Analog/Digital:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frequency:	Fh: 24~82kHz, Fv: 50~75Hz
Sync:	Separate Sync

System:	DDR3 512MB @ 1066MHz
Archiviazione:	None

CPU:	Teradici Tera2321
Image Performance:	50Mpps (DVI out)

Chipset:	None
Risoluzione:	1920 x 1200 (for single display)
