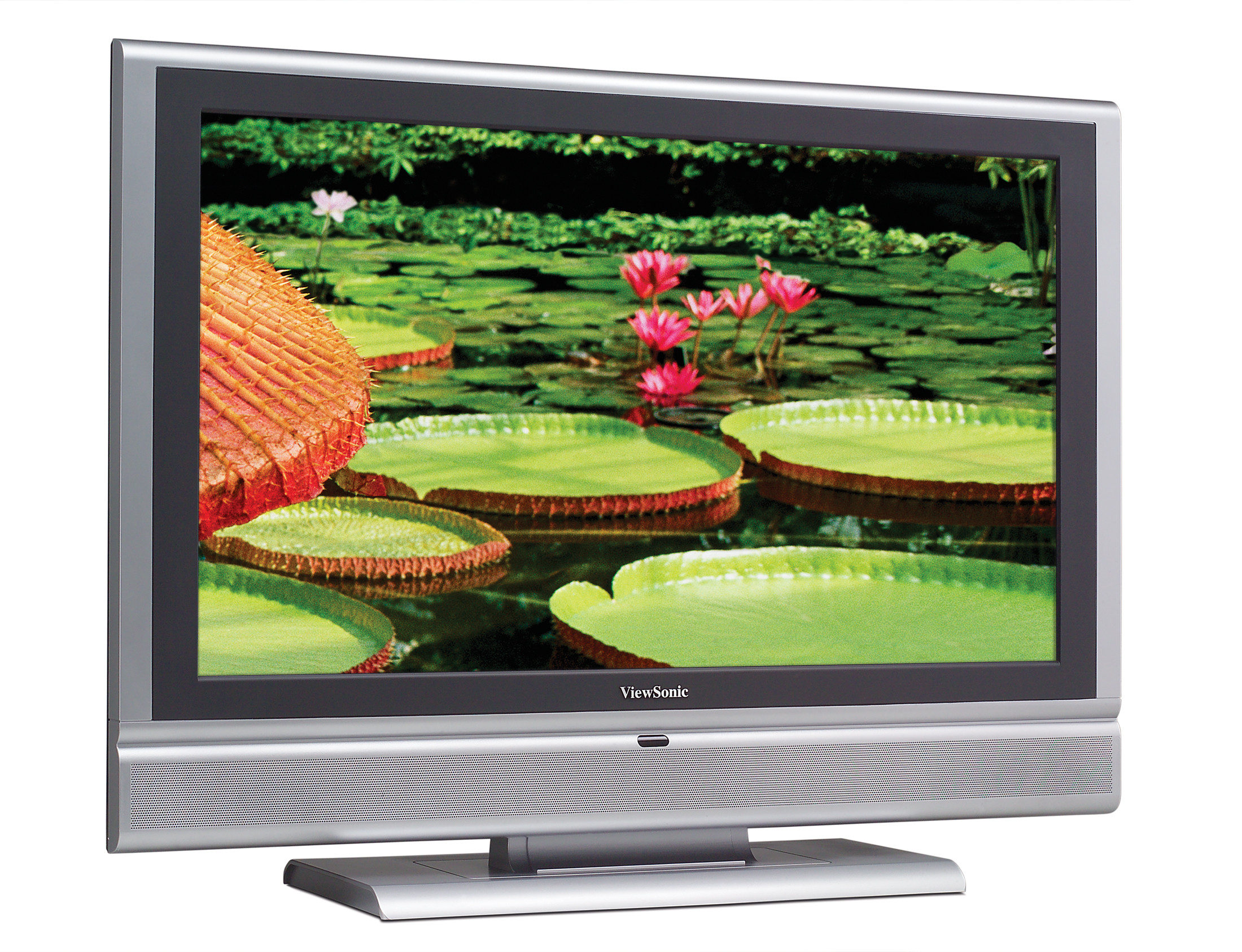

ViewSonic N4060w 40” WIDE SCREEN HIGH DEFINITION LCD TV

LCD

Tipo:	102cm / 40" PVA colour TFT active matrix, wide 1366 x 768
Contrasto:	1000:1 (typ.)
Angolo visuale:	170° horizontal, 170° vertical (at 10:1)
Glass Surface:	Anti-glare 3H
Display Area:	88.5cm (horizontal) x 49.8cm (vertical), 102cm diagonal
Tempo di risposta:	8ms (grey-to-grey)
Rapporto d'aspetto:	16:9
Luminosità:	500cd/m2 (typ.)

COMPATIBILITY

PC: Compatible from VGA up to 1360 x 768, 1360 x 768 @ 60Hz preferred

Mac®: Power Mac™ up to 1360 x 768, 1360 x 768 preferred
DIMENSIONS

W x H x D mm: 1015 x 755 x 280 (with base)
CONTENUTO DELLA CONFEZIONE

LCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable,1.8m SCART
cable, remote control, batteries, quick start guide, user guide
WARRANTY

Please see:
www.viewsoniceurope.com/UK/Support/warranty.htm

CONNECTOR

Digital:	1 x HDMI incl. HDMI with RCA Audio L/R In for DVI source
Alimentazione:	3-pin plug (CEE22)
Audio:	1 x RCA R/L Out
S-Video:	1 x 4-pin mini DIN jack with RCA Audio L/R In
Headphone:	1 x 3.5mm mini stereo jack
SCART:	3 x SCART3 (CVBS In/Out, RGB In, S-video In, Audio In/Out)
Tuner:	1 x Coax RF (PAL/SECAM)
PC:	1 x 15-pin mini D-sub with 3.5mm mini stereo jack L/R In
Composite Video:	1 x RCA (CVBS) In with RCA Audio L/R In, 1 x RCA (CVBS) Out
Component Video:	1 x RCA set (YPbPr/RCA) with RCA Audio L/R In

POWER

Voltaggio: AC 100 – 240V, 50/60Hz (auto switch), internal, fanless power supply

Consumo: < 260 watt (max.), < 1.5 watt in power save mode

CONTROLS

Basic:

Power, Source, Menu, Channel up/down, Volume up/down

OSD:

Video (picture, contrast, brightness, saturation, tint, sharpness, NR),
Audio (volume, balance, equaliser, treble, bass, sound mode, SRS),
Screen (display mode, H. size, H/V position, phase, default, auto sync,
colour temperature), Setup (tuning, programme table, auto search),
Tuning Sub (programme number, fine tuning, channel name, frequency,
TV system, manual search, skip), Programme Table (channel name), Auto
Search (country, auto search), Options (menu language, sleep timer,
menu background, source info, reset, PC display), power lock

OPERATING CONDITIONS

Temperatura: 0°C to 35°C

Umiditá: 20% to 90% (non condensation)
WEIGHT

Prodotto senza imballaggio: 33kg (with base), 27.4kg (without base)
TELETEXT

1000 pages
VIDEO INPUT

PAL, SECAM, NTSC4, SD (480i, 576i), HD (720p, 1080i)
AUDIO

Speakers: 2 x 10 watt SRS WOW (virtual surround-sound)

PC:	Compatible from VGA up to 1360 x 768, 1360 x 768 @ 60Hz preferred
Mac®:	Power Mac™ up to 1360 x 768, 1360 x 768 preferred

Voltaggio:	AC 100 – 240V, 50/60Hz (auto switch), internal, fanless power supply
Consumo:	< 260 watt (max.), < 1.5 watt in power save mode

Temperatura:	0°C to 35°C
Umiditá:	20% to 90% (non condensation)
