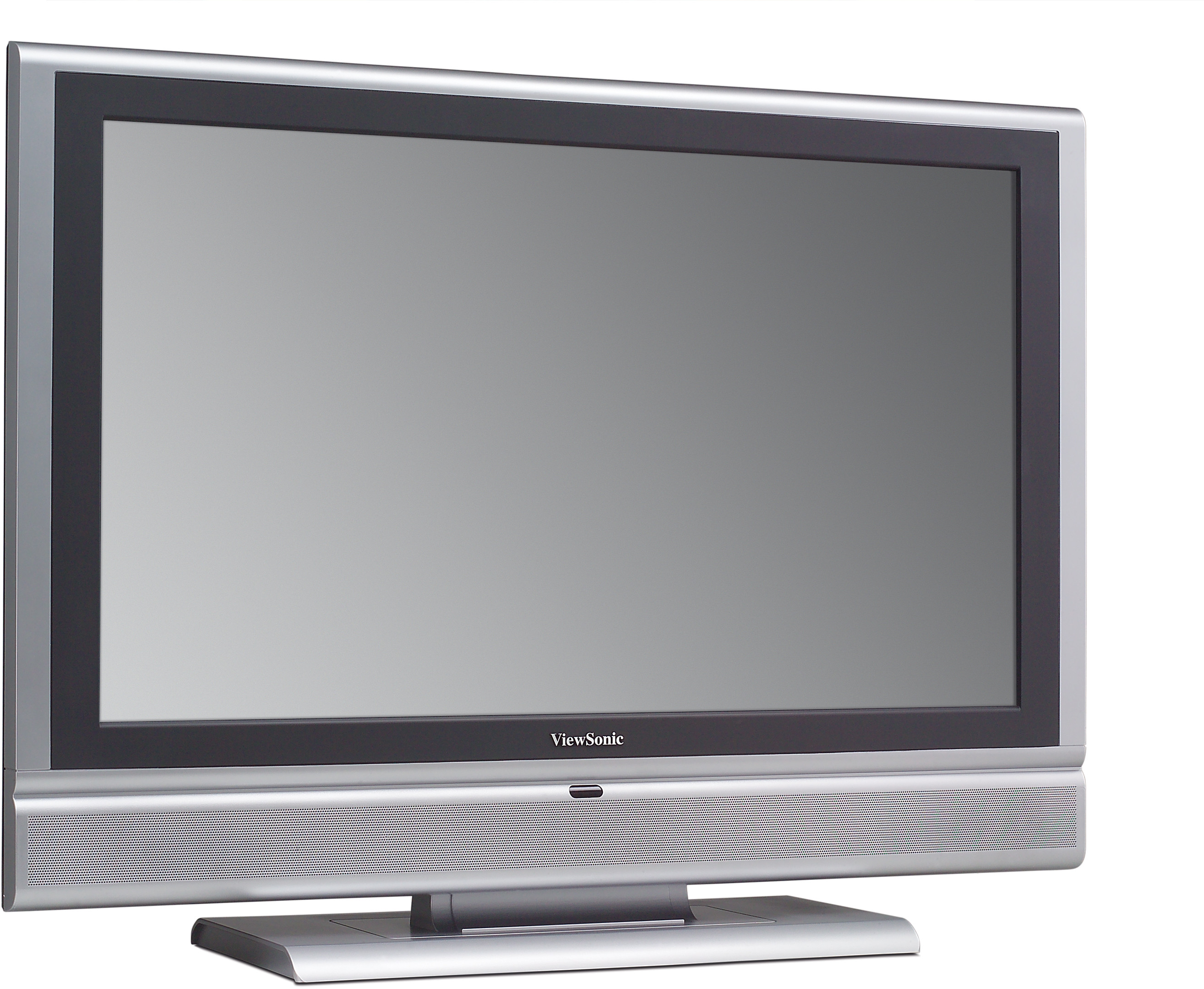

ViewSonic N3766w 37" WIDESCREEN HD-READY LCD TV WITH DIGITAL TUNER (DVB-T)

LCD

Tipo:	94cm / 37" S-IPS colour TFT active matrix, wide 1366 x 768
Contrasto:	800:1 (typ.)
Angolo visuale:	178° horizontal, 178° vertical (at 10:1)
Luminosità:	500cd/m² (typ.)
Display Area:	82.0cm (horizontal) x 46.1cm (vertical), 94.0cm diagonal
Tempo di risposta:	8ms (grey-to-grey)
Rapporto d'aspetto:	16:9 (native), 16:9 zoom, 4:3, 14:9
Panel Surface:	Anti-glare 3H

COMPATIBILITY

PC: Compatible from 640 x 480 up to 1360 x 768, 1280 x 1024 @ 60Hz preferred

Mac®: Power Mac™ up to 832 x 624
DIMENSIONS

W x H x D mm: 960 x 730 x 280 (with base)

960 x 675 x 130 (without base)

1145 x 870 x 370 (packaging)
CONTENUTO DELLA CONFEZIONE

LCD TV, 1.8m power cables (Europe [Schuko]/UK), 1.8m AV cable, 1.8m SCART
cable, remote control, batteries, quick start guide, user guide (multi-language)
WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Speaker: 2 x 10 watts SRS WOW (virtual surround-sound)

CONNECTOR

Alimentazione:	3-pin plug (CEE22)
Audio Out:	1 x L/R RCA set
Audio Input:	1 x L/R RCA set (for Composite/S-video) 1 x L/R RCA set (for digital video/DVI) 1 x 3.5mm mini stereo jack (for PC)
S-Video:	1 x 4-pin mini DIN jack
Headphone:	1 x 3.5mm mini stereo jack
SCART:	3 x SCART (CVBS In/Out, RGB In, S-Video In, Audio In/Out)
Composite Video:	1 x RCA (CVBS)
Tuner (Analogue):	1 x Coax RF (PAL/SECAM)
Tuner (Digital):	1 x Coax (DVB-T)
Digital Video:	1 x HDMI (HDCP)
Component Video:	1 x RCA set (YPbPr/YCbCr)
PC-RGB:	1 x 15-pin mini D-sub

POWER

Voltaggio: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply

Consumo: 220 watt (typ.)

CONTROLS

Basic:

Power, source, menu, channel up/down, volume up/down

OSD:

Video Menu (picture mode, contrast, brightness, saturation, tint, sharpness, NR),
Audio Menu (volume, balance, equaliser, treble, bass, sound mode, SRS, HDMI audio In),
Screen Menu (display mode, H. size, H/V position, phase, default, auto sync, colour temperature [cold, warm, standard]),
Setup Menu (tuning, programme table, auto search, DTV),
Tuning Sub Menu (programme number, fine tuning, channel name, frequency, TV system, manual search, skip),
Programme Table Sub Menu (channel name),
Auto Search Sub Menu (country, auto search),
DTV Sub Menu (system setting, channel settings, channel list, parent control, time setting, software version),
Options Menu (language [8 options], sleep timer, menu background, source info, reset, PC display), power lock

OPERATING CONDITIONS

Temperatura: 32-104ºF (0-40ºC)

Umiditá: 10%–80% (non condensation)
WEIGHT

Prodotto senza imballaggio: 31.0kg (with base)

Prodotto con imballaggio: 38.5kg
VESA MOUNT COMPLIANT

VESA® FDMI 200mm x 100mm, 200mm x 200mm, M6 screws
VIDEO INPUT

PAL (B/G, D/K, I), SECAM (L), NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
TELETEXT/MHEG5

Yes (1000 pages)/–

PC:	Compatible from 640 x 480 up to 1360 x 768, 1280 x 1024 @ 60Hz preferred
Mac®:	Power Mac™ up to 832 x 624

Voltaggio:	AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Consumo:	220 watt (typ.)

Temperatura:	32-104ºF (0-40ºC)
Umiditá:	10%–80% (non condensation)

Prodotto senza imballaggio:	31.0kg (with base)
Prodotto con imballaggio:	38.5kg
