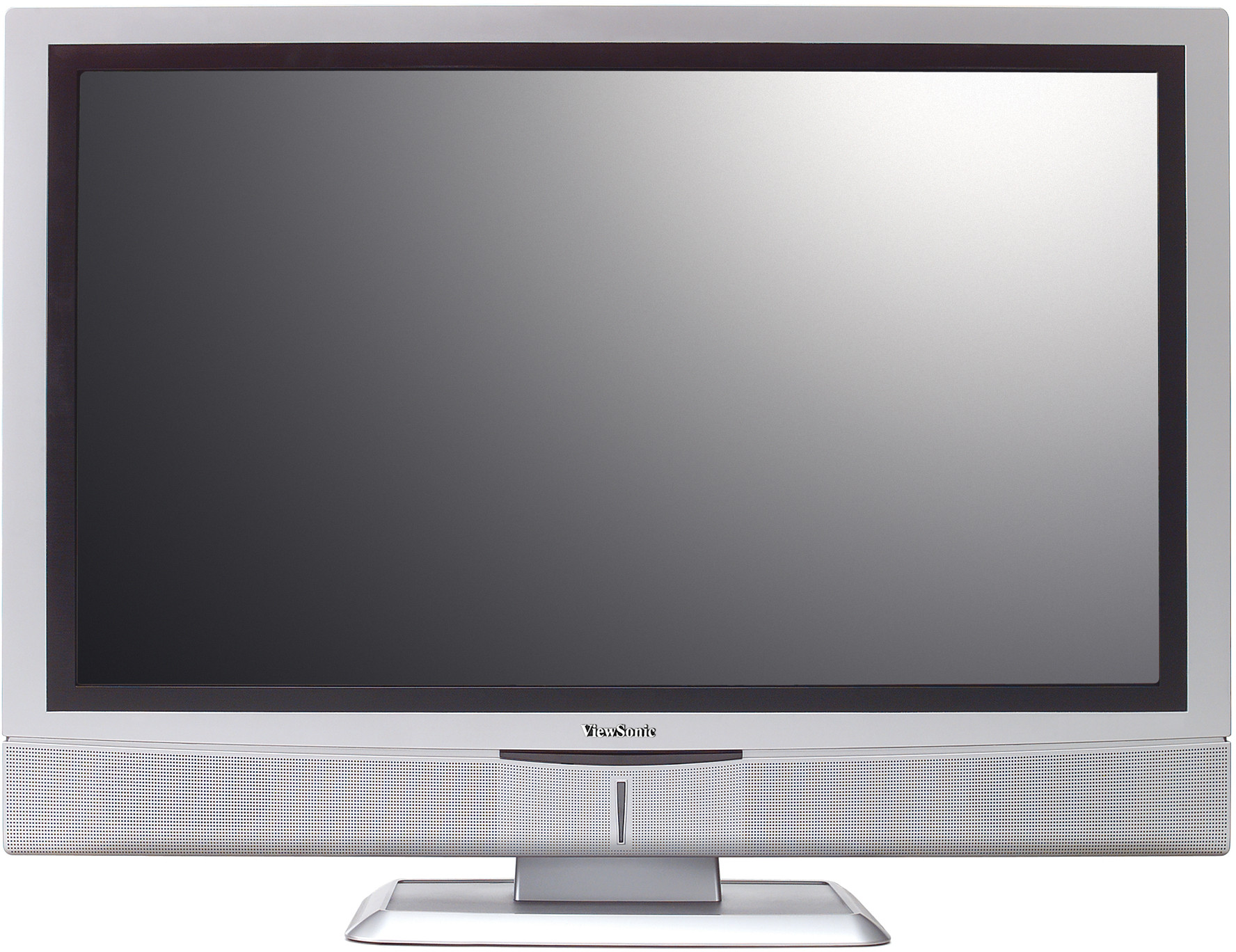

ViewSonic N3246w 32” WIDESCREEN HD-READY LCD TV WITH DIGITAL TUNER (DVB-T)

LCD

Tipo:	32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
Contrasto:	1200:1 (typ.)
Angolo visuale:	176° horizontal, 176° vertical (at 20:1)
Luminosità:	550cd/m² (typ.)
Display Area:	70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Tempo di risposta:	8ms (grey-to-grey)
Rapporto d'aspetto:	16:9 native
Panel Surface:	Anti-glare 3H

COMPATIBILITY

PC: Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred

Mac®: Power Mac™ up to 832 x 624
DIMENSIONS

W x H x D mm: 810 x 605 x 237 (with base)
810 x 556 x 116 (without base)
984 x 707 x 252 (packaging)
CONTENUTO DELLA CONFEZIONE

LCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Speaker: 2 x 10 watts SRS WOW (virtual surround-sound)

CONNECTOR

Alimentazione:	3-pin plug (CEE22)
Audio Out:	1 x L/R RCA set
Audio Input:	1 x L/R RCA set (for composite1/component) 1 x L/R RCA set (for composite2/S-video) 1 x 3.5mm mini stereo jack (for PC)
S-Video:	1 x 4-pin mini DIN jack
Headphone:	1 x 3.5mm mini stereo jack
SCART:	2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Composite Video:	2 x RCA (CVBS)
Tuner (Analogue):	1 x Coax RF (PAL/SECAM)
Tuner (Digital):	1 x Coax (DVB-T)
Digital Video:	1 x HDMI (HDCP)
Component Video:	1 x RCA set (YPbPr/YCbCr)
PC-RGB:	1 x 15-pin mini D-sub
PC Card Slot:	1 x for digital pay card and service

POWER

Voltaggio: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply

Consumo: 180 watt (max.)

CONTROLS

Basic:	Power, source, menu, channel up/down, volume up/down
OSD:	Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock

OPERATING CONDITIONS

Temperatura: 0°C to 35°C

Umiditá: 20% to 90% (non condensation)
WEIGHT

Prodotto senza imballaggio: 15.5kg (with base)

Prodotto con imballaggio: 18.0kg
VESA MOUNT COMPLIANT

VESA FDMI 200mm x 200mm
VIDEO INPUT

PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
TELETEXT/MHEG5

Yes (100 pages)/Yes

PC:	Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred
Mac®:	Power Mac™ up to 832 x 624

Voltaggio:	AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Consumo:	180 watt (max.)

Temperatura:	0°C to 35°C
Umiditá:	20% to 90% (non condensation)

Prodotto senza imballaggio:	15.5kg (with base)
Prodotto con imballaggio:	18.0kg
