ViewBoard

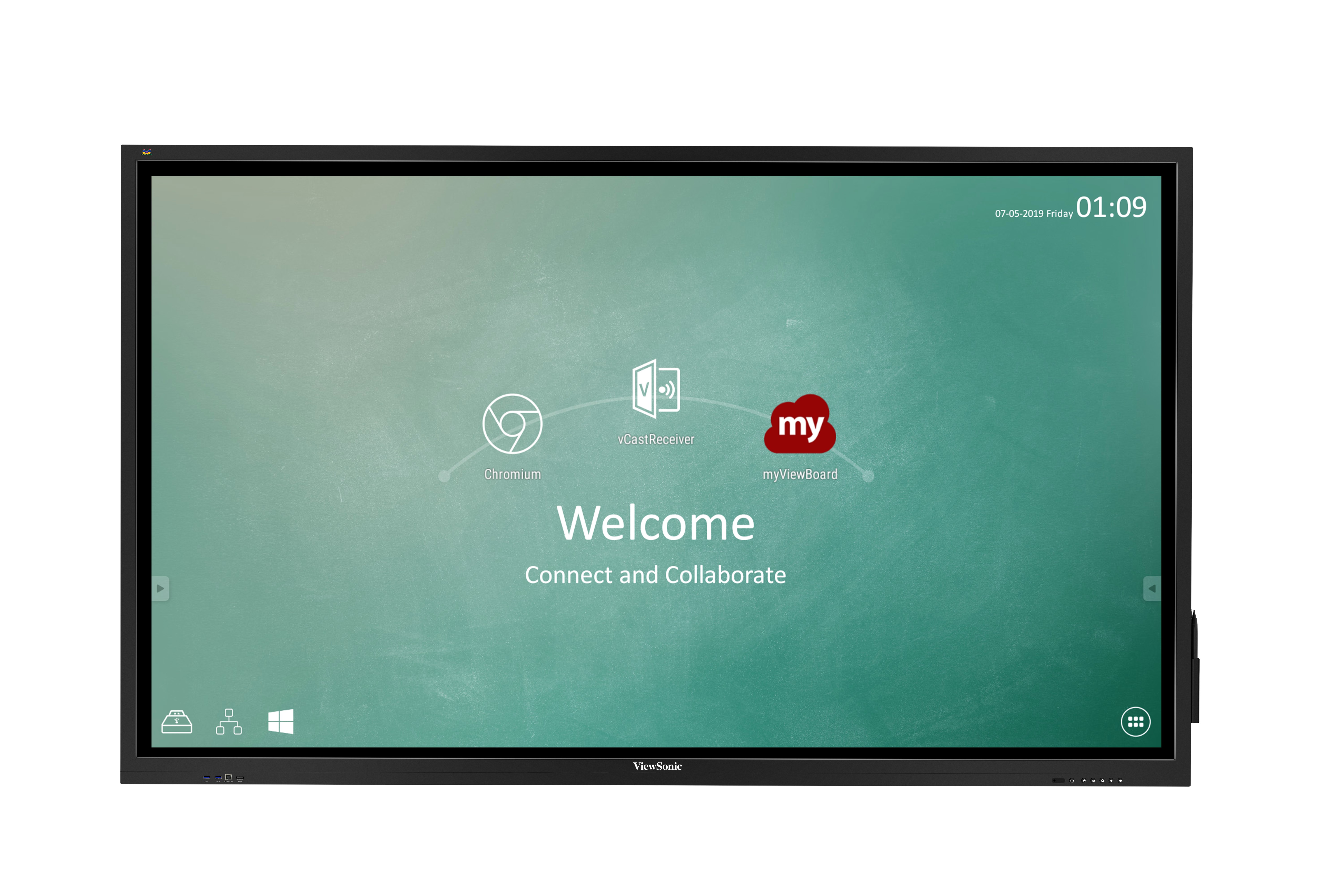

ViewSonic IFP7530
Caratteristiche principali
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- Dual-pen writing with 3mm/8mm diameter pen tips
- Ambient Light Sensor
- ENERGY STAR® certified
Descrizione del prodotto
The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by build in ViewBoard vCAST wireless presentation application for instant screen sharing. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.

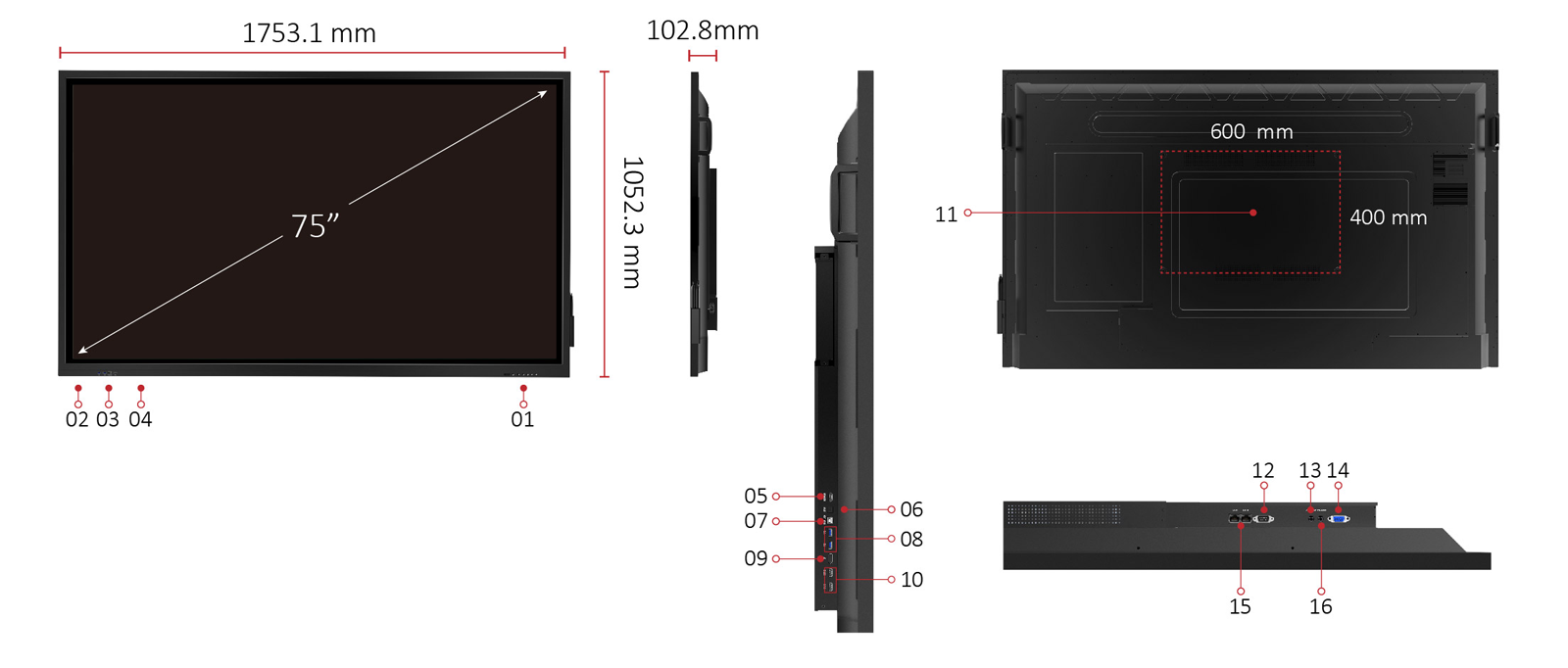

- CONTROLS PANEL
- USB X 2
- TOUCH USB
- HDMI IN
- HDMI OUT
- SPDIF OUT
- TOUCH USB
- USB X 2
- DISPLAY PORT IN
- HDMI IN X 2
- VESA® WALL Mount 600x400 mm
- RS232 IN
- AUDIO OUT
- VGA IN
- LAN X 2
- PC AUDIO IN
Visita noi
- www.viewsonic.com
-
DISPLAY
Dimensione display: 75" Type/Tech: IPS/V-by-one Area visualizzabile (mm): 1647.36*926.64mm Rapporto d'aspetto: 16:9 Risoluzione: 3840x2160 Colori: 10 bits Luminosità: 450(Typ.)
400(min.)Contrasto: 1200:1 Tempo di risposta: 8ms(Type) Angolo visuale: H = 178, V = 178 typ. Durata (ore): 50,000 hrs Trattamento della Superficie: Durezza: 7H (penna 9H), rivestimento antiriflesso Bezel: 29/29/29/49.7mm(btm.) Orientamento: Landscape -
PIATTAFORMA
Processore: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz RAM: 3GB DDR4 Archiviazione: 16GB -
TOUCH
Tipo/Tecnologia: IR Recognition Touch Resolution: 32767W*32767D Punti di Tocco: 20 points -
INPUT
HDMI: Front*1
Rear* 2
All ports HDMI2.0RGB / VGA: 1 DisplayPort: DP1.2*1 Audio: PC audio in (3.5 mm)*1 RS232: x1 OPS: 1 -
OUTPUT
HDMI: *1 Audio: 3.5mm Earphone Out *1, SPDIF*1 SPDIF: x1 -
LAN
RJ45 (controllo LAN): *2
10M/100 -
USB
Tipo A: USB2.0 *4 (Front:*2 Rear: *2 ) Tipo B: For touch (Front*1, rear*1)) -
SPEAKERS
SPEAKERS: 15WX2 -
SUPPORTO PER WEBCAM
Supporto per Webcam: yes -
COMPATIBILITY
RGB PC/HDMI PC: VGA: 1080p
HDMI: 4KHDMI: 3840x2160 DisplayPort: 3840x2160 -
SISTEMA OPERATIVO INTEGRATO
Sistema Operativo integrato: OS 8.0 to Android 8.0 -
ALIMENTAZIONE
Voltaggio: PB model:
100-240VAC +/- 10% Wide RangeConsumo: On: 115W(Typ.)
Off: <0.5W -
ERGONOMICS
Standard (VESA® ): 600 x 400 -
OPERATING CONDITIONS
Temperatura (º C): 0°C to 40°C Umiditá: 20% ~ 80% RH Non-Condensing(working) -
DIMENSIONI (LXPXH)
Prodotto (inch / mm): 1753.1*1052.3*102.8(mm)
69.02*41.43*4.05(inch)Imballaggio (inch / mm): 1880*1160*280(mm)
74*45*11(inch) -
WEIGHT
Prodotto (lb / kg): 135lb, 61.25kg Imballaggio (lb / kg): 173.8lb, 78.85kg -
VERSIONE ENERGY STAR
Versione Energy Star: YES -
EEI RATING
EEI rating: A+ -
CONTENUTO DELLA CONFEZIONE
Contenuto della confezione:
1. US/EU/UK/AU power cord 3M, no PE bag
2. QSG
3. Compliance statement
4. HDMI cable 3M*1
5. Touch USB cable 3M *1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame
9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws -
SLOT-IN PC COMPATIBILI
Slot-in PC compatibili: VPC12 series
