Caratteristiche principali
  • Embedded media player and 16GB storage
  • USB multimedia playback
  • LAN function to access to web
  • Internal scheduler
  • Dual integrated speakers

EP5520
Descrizione del prodotto

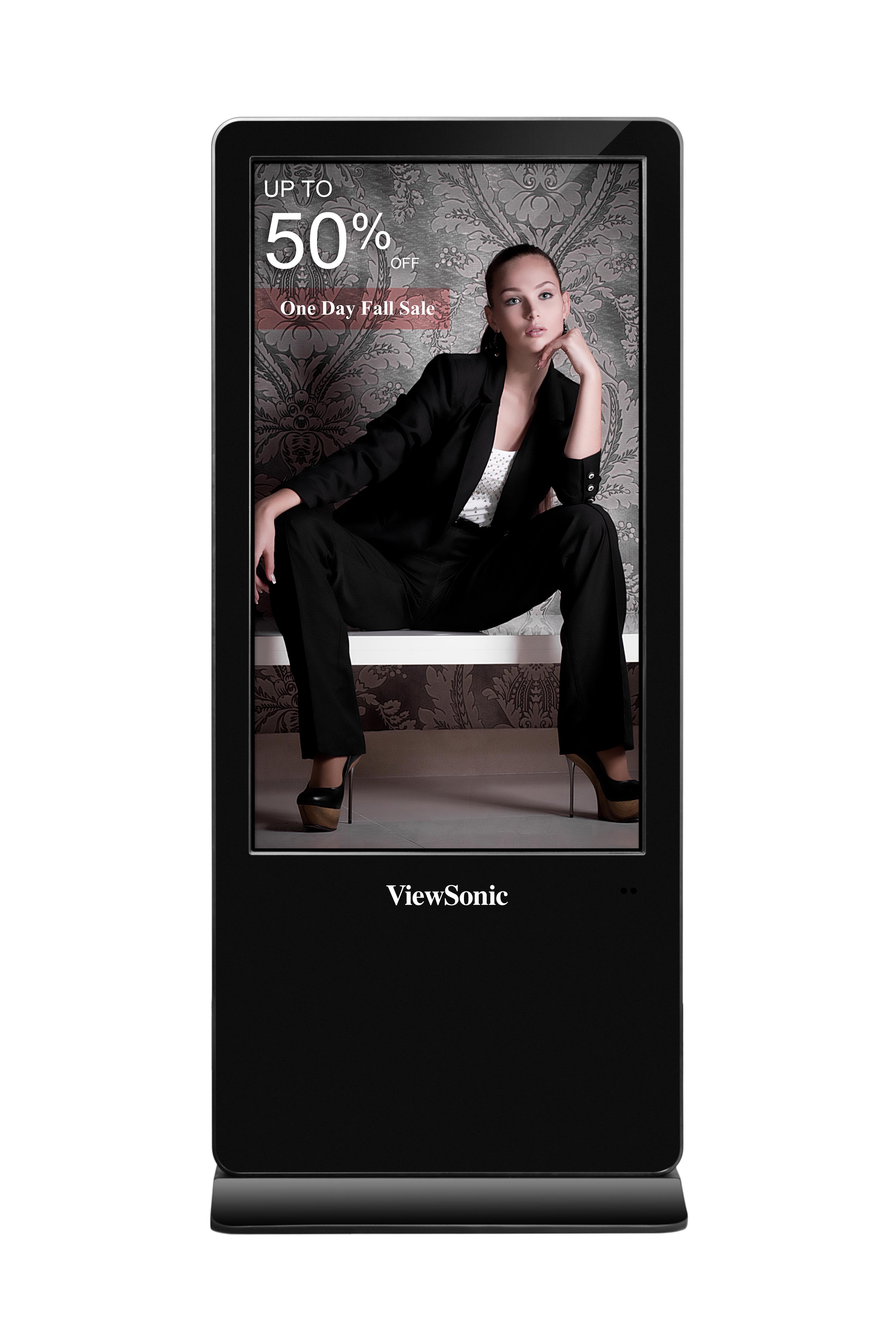

The ViewSonic EP5520 is a 55” all-in-one free-standing digital ePoster kiosk with a sleek, slim design. Great for grabbing attention in busy, high-traffic areas, the EP5520 comes with a scratch-proof tempered glass faceplate for added durability. Featuring Full HD 1080p resolution, 178°/178° wide-angle viewing, 350-nit brightness, 4,000:1 contrast ratio, and dual 10W stereo speakers, the EP5520 delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded Quad-core media player and 16GB of internal memory, or add your own media player using the convenient media player cradle inside the lockable security door.
Visita noi
  • www.viewsonic.com
  • LCD PANEL
    Dimensione display: 55" (55'' diagonal)
    Tipo/Tecnologia: TFT LCD Module with direct type white LED
    Area visualizzabile (mm): 1209.6(H) x 680.4(V)
    Rapporto d'aspetto: 16:09
    Risoluzione: 1920 x 1080
    Colors: 16.7M colors
    Luminosità: 350 nits (typ.)
    Contrasto: 4000:1 (typ.)
    Tempo di risposta: 8ms (typ.)
    Angolo visuale: Up and Down 178°, Left and Right 178° (min.)
    Backlight: LED
    Durata (ore): 30,000 Hours (typ.)
    Hardness: 7H
  • INPUT
    HDMI: x 2
    RGB / VGA: x 1
    Audio: x1 (3.5mm jack)
    RS232: x 1
  • OUTPUT
    Audio: x 1
  • LAN
    RJ45 (controllo LAN): x1
  • USB
    Tipo A: x3 (USB2.0 x 1, USB3.0 x 2)
  • SPEAKERS
    10W x2
  • BUILT-IN PC
    Processore: MSD828
    Graphic: Quad-core Mali450 GPU
    Sound card: TPA3118
    Memoria: 2GB DDR3-1866 SDRAM
    Archiviazione: eMMC 16GB
  • COMPATIBILITY
    HDMI (1080p): Up to 1080p @ 60Hz
  • CONTROLS
    Physical- Top OSD: Picture: Picture Mode, Contrast, Brightness, Hue, Sharpness, Saturation, Anti-Flicker, Backlight, Screen, Color temperature, Bluelight Filter, Zoom Mode, OverScan, Image NR
    Sound: Sound Mode, Bass, Treble, Balance, Surround, Alone
    Setting: MHL Auto Switch, Menu Timeout, Data/Time, Off Timer, On Timer, Sleep Time
    Lock: Set Password, System ID, Lock Keypad, LowerPower Standby, Restore To Default
  • POWER
    Voltaggio: 100-240VAC +/- 10% Wide Range
    Consumo: 115W (typ.)
  • OPERATING CONDITIONS
    Temperatura (º C): 32°F to 104°F (0°C to 40°C)
    Umiditá: 20% ~ 80% non-condensing
  • DIMENSIONS
    Prodotto (inch / mm): 820 x 1900 x 450 mm / 32.88 x 74.80 x 17.72 in.
    Imballaggio (inch / mm): 983 x 2016 x 618 mm / 38.70 x 79.37 x 24.33 in.
  • WEIGHT
    Prodotto (lb / kg): 68 kgs / 149.91 lbs
    Imballaggio (lb / kg): 83 kgs / 182.98 lbs
  • WARRANTY
    **Warranty offered may differ from market to market
  • WHAT'S IN THE BOX?
    1. Power Cord
    2. Remote control with battery
    3. Quick Start Guide
    4. User Guide CD
    5. Key


    *Actual content may differ from market to market
