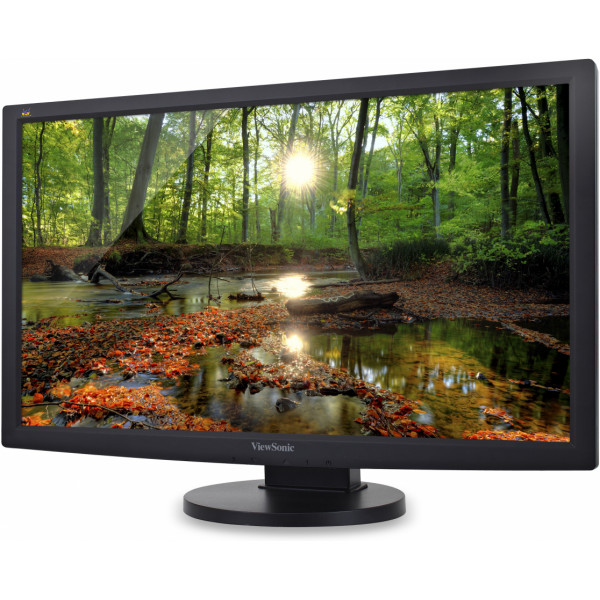

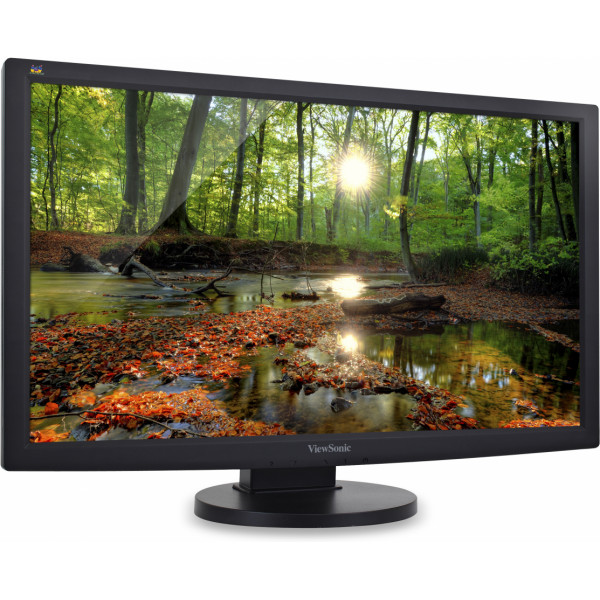

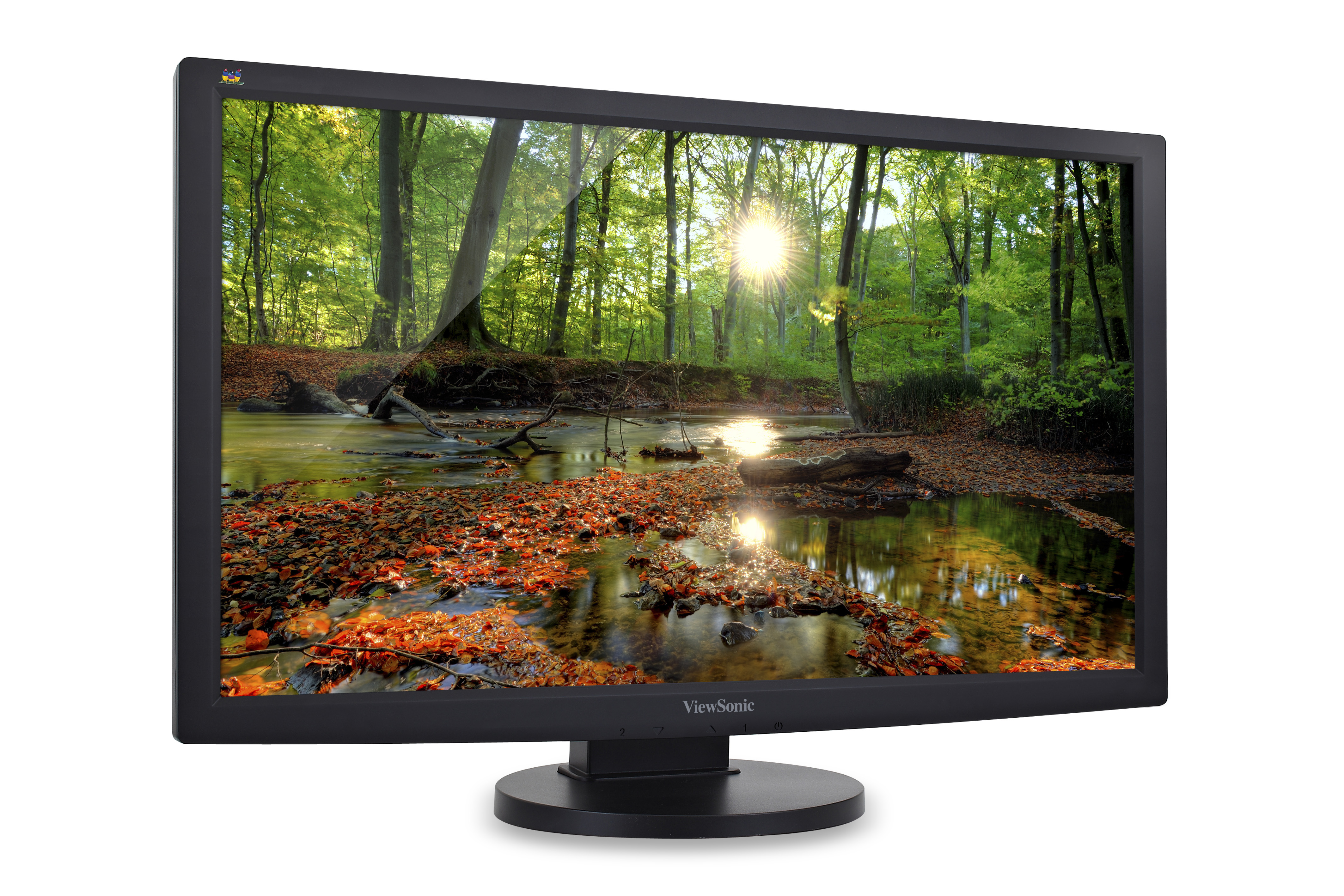

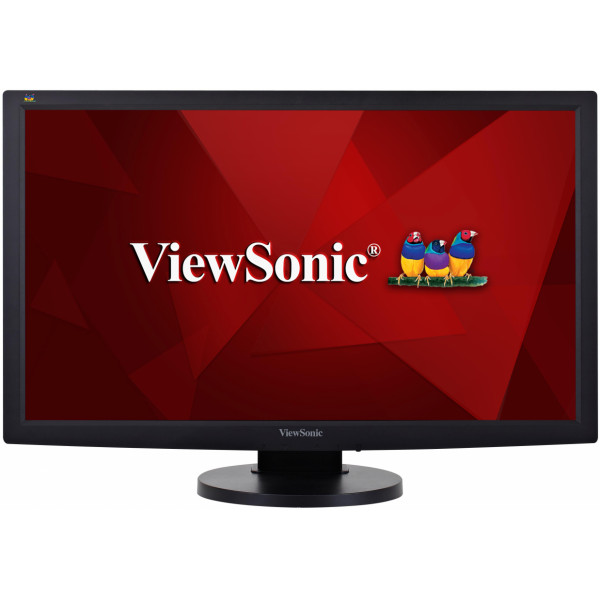

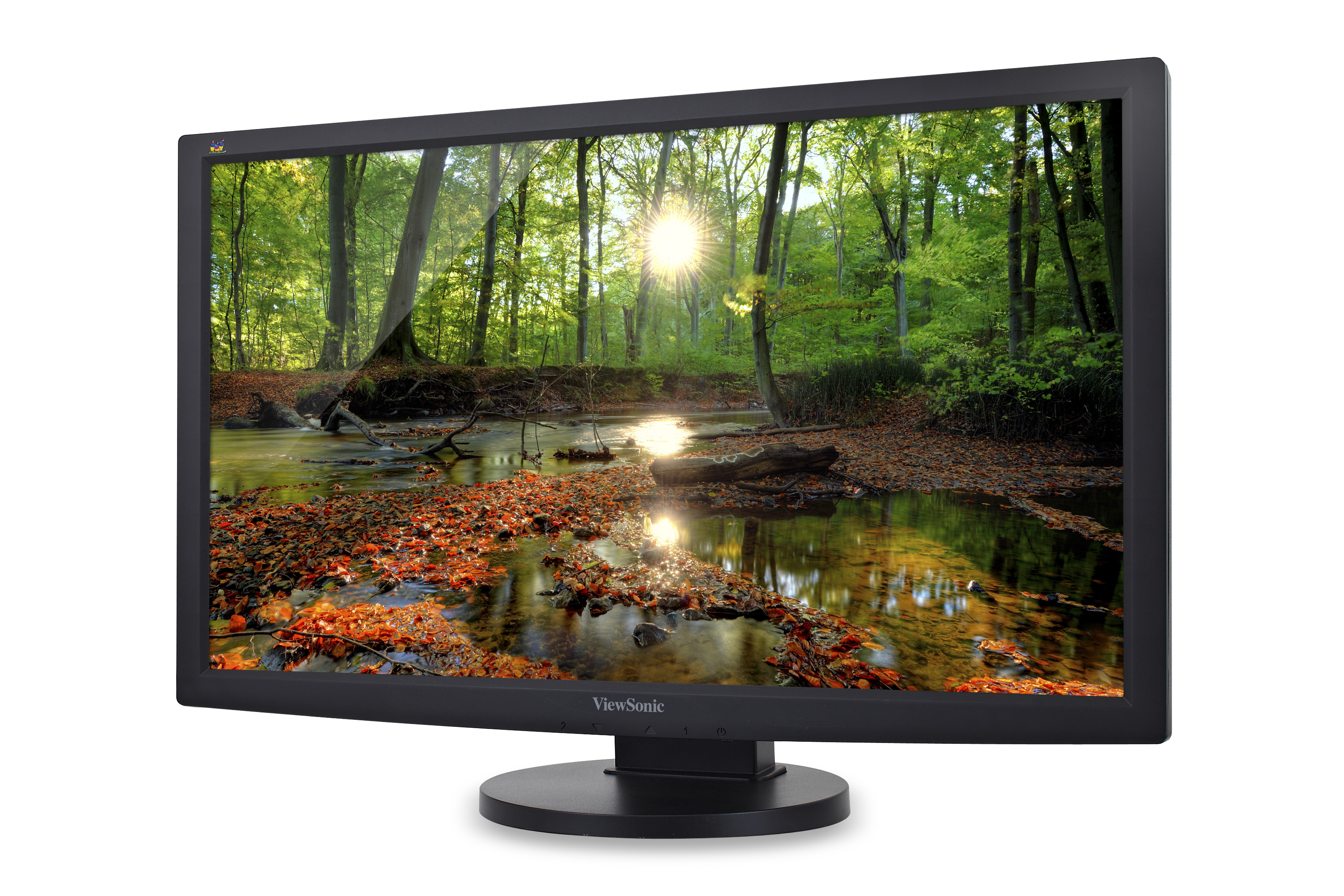

VG2233-LED

22" Ergonomic Business Monitor

LCD
Optimum Resolution: 1920 x 1080
Contrasto: 1,000:1
Angolo visuale: 170° / 160°
Tempo di risposta: 5 ms
Panel Surface: Anti-glare Type, 3H Hardness
Display Area: 21.5” Wide
Luminosità: 250 cd/m²
Contrasto dinamico: 20,000,000:1
Backlight: White-light LED
Durata (ore): 30,000 hrs (min.)
Entrata Video
Digital: DVI (TMDS，100 ohms)
Frequency: Fh：24 - 82kHz；Fv：50 - 75Hz
Sync: Separate Sync/ Composite Sync/ SOG
Analogue: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)

Compatibilità
PC: VGA up to 1920 x 1080 non-interlaced
Mac®: MAC up to 1280 x 1024
Connessioni
Analog: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
Alimentazione: Internal Power Board , 3-pin plug (CEE22) *1
DIMENSIONS
Physical Without Stand: 505.6mm (W) x311.6 mm (H) x 51.0 mm (D)

19.91" (W) x 12.27" (H) x2.01" (D)

Dimensioni unità senza supporto (mm): 505.6mm (W) x361mm (H) x 204.3 mm (D)
Physical (in): 19.91" (W) x 14.21" (H) x8.04" (D
Packaging: 624mm x 393mm x 167mm

24.57’’ x 15.47’’ x 6.57’’
Contenuto della confezione
Power Cable *1，D-Sub*1，Quick Start Guide *1
POWER
Voltaggio: AC 100 - 240V (Universal)；50 / 60Hz
Consumo: 22W (typ.)
Optimize: 18W (typ.)
Conserve: 15W (typ.)
WEIGHT
Net Without Stand: 3.09 Kg (6.81 lbs)
Prodotto con imballaggio: 6.03Kg (13.3 lbs)
Net With Stand: 4.68 Kg (10.32 lbs)
VESA® MOUNT
100mm * 100mm
POWER MANAGEMENT
Eco Mode
ERGONOMICS
Inclinazione: 25° ~ -5°
Rotazione base: 340°
Height Adjustment: 0-100mm
Rotation: 90°
OPERATING CONDITIONS
Umiditá: 10% to 90% (no condensation)
Temperatura: 32° F to 104° F (0° C to 40° C)
