Key Features
  • XGA resolution
  • 1.3 - 2.21 throw ratio
  • SuperColor™ technology
  • 2-in-1 Stacking for brighter images
  • 360-degree projection with auto-ventilation design

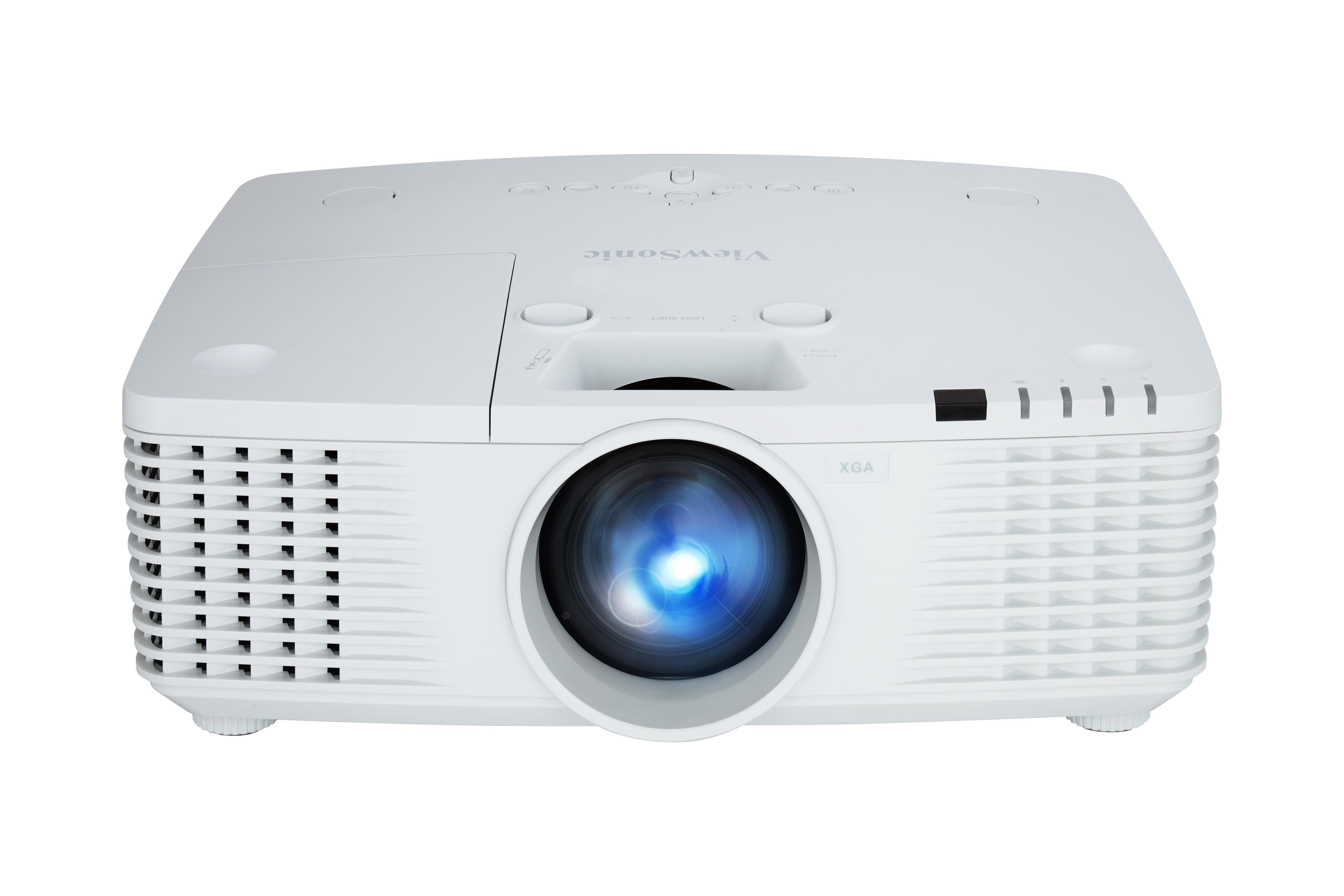

Pro9510L
Product Description
Equipped with stacking and 360-degree projection, the Pro9510L showcases its versatile projection capabilities for fulfilling professional and creative application requirements. Pro9510L’s centered lens boasts 6,200 ANSI Lumens and XGA resolution, with multiple adjustment options for horizontal & vertical lens shift, 1.7x optical zoom, HV keystone, 4-corner, and 12V trigger, offering flexible and easy installation. To ensure its reliability, features such as an advanced sealed optical engine, wire-netting-covered lamp, and waveform air filter make it more durable and safeguard it against damage caused by regular usage. Powered by SuperColor™, it provides amazing colors and great contrast for images while utilizing auto power on, cell phone remote control (With vRemote app), and network management features for easy management. With its capability of supporting a wide range of digital and analog inputs, the Pro9510L is the ideal projector for commercial installations and large venues.
Visit Us
  • www.viewsonic.com
  • PRODUCT SPECIFICATION
    Resolution: 1024x768
    Brightness (ANSI Lumens): 6200lm
    Contrast (with Dynamic Contrast Ratio): 8000: 1
    Lamp Hour (Normal / Eco / DynamicEco): 1500hrs / 3500hrs
    Throw Ratio in Meters (Wide ~ Tele): 1.3~2.21
    Throw Distance: 0.79m-13.47m (100" @2.6m)
    Lens Shift: Yes
    Optical Zoom: 1.7x
    Digital Zoom: 0.8x~2.0x
    Screen Size: 30" - 300"
    Projection Offset: 112%~124%
    Display Colours: 1.07 Billion Colors (30 bits per color)
    Keystone: H:+/-25° , V:+/-30°
    Noise min (Normal / Eco): 31 dB
    Speaker: 7Wx2
  • INPUT CONNECTIVITY
    HDMI/MHL: 1
    HDMI In: 1
    VGA-in: 2
    Component Input: 2 (Share with VGA-in)
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 3
    Audio-in (RCA pair): 1
    USB Type A: 1 (Only charging)
    Mini USB: 1 (Service)
    Microphone in (3.5mm): 1
    BNC: 1
    Wire Remote in: 1
    DVI-D: 1
  • OUTPUT CONNECTIVITY
    VGA-out: 1
    Audio-out (3.5mm): 1
    Audio-out (RCA pair): 1
    Wire Remote out: 1
  • CONTROL
    RS232 (9 pin): 1
    Network Mangment (LAN cable): 1
    12V Power Trigger: 1
    3D VESA: 1
  • DIMENSIONS AND POWER
    Dimension (WxDxH): 445 mm(W) x 325.5 mm(D) x147.8 mm(H)
    17.51” (W) x 12.81 ” (D) x 5.82” (H)
    Net Weight: 8.29 kg  (18.26 lb)
    Power Source: 100~240Vac 50/60Hz
    Power Consumption: 480W (Typ.)
  • SUPPLIED ACCESSORIES
    Power cord: 1
    VGA cable: 1
    Remote Control (with batteries): 1
    Quick Start Guide & CD: 1
  • REGULATIONS
    Mexico Energy FCC / CE /  EMC CB / CCC ROHS / REACH / SVHC / WEEE / ErP Mexico NOM / UL / CUL / PSB /  RCM
