Key Features
  • 0.22 ultra-short throw ratio
  • Cinema SuperColor™ technology
  • 6X speed RGBRGB colour wheel
  • ISF calibration modes
  • PortAll® compartment for wireless dongle

PX800HD
Product Description
ViewSonic’s PX800HD is a 1080p ultra-short throw projector equipped with ViewSonic’s exclusive Cinema SuperColor™ technology and a 6X Speed RGBRGB color wheel that deliver incredible Rec.709 color accuracy and razor-sharp imagery for an exceptional visual experience. With its 0.22 ultra-short throw, the projector’s cinematic color can be projected onto a 100’’ screen from as close as 15cm* away, for short throw projection that fits seamlessly into any home entertainment space. PX800HD is ISF certified and allows users to enjoy a cinematic experience anytime by utilizing specialized modes for day and night. PortAll® compartment is specially designed for using wireless devices and PC sticks to stream content. Stunning image performance combined with flexible integration certainly make PX800HD the ideal ultra-short throw projector for home theater entertainment.
*The actual distance may vary based on environmental conditions

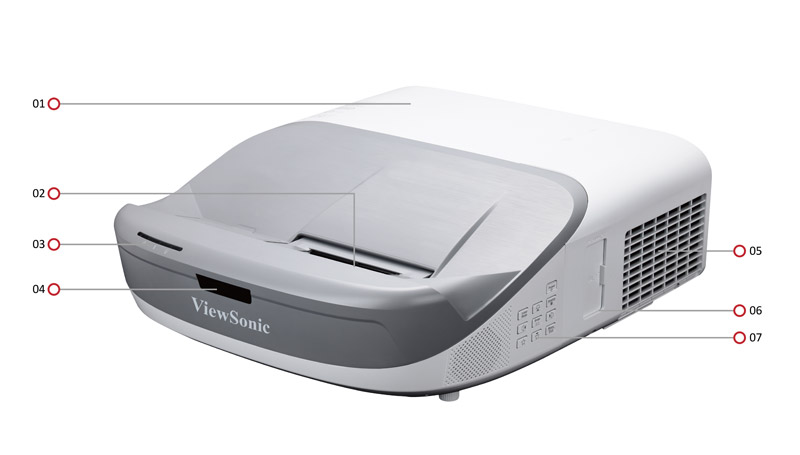

  1. Lamp cover
  2. Projector Lens
  3. LED indicator
  4. IR remote sensor
  5. Air filter
  6. Focus
  7. Keypad

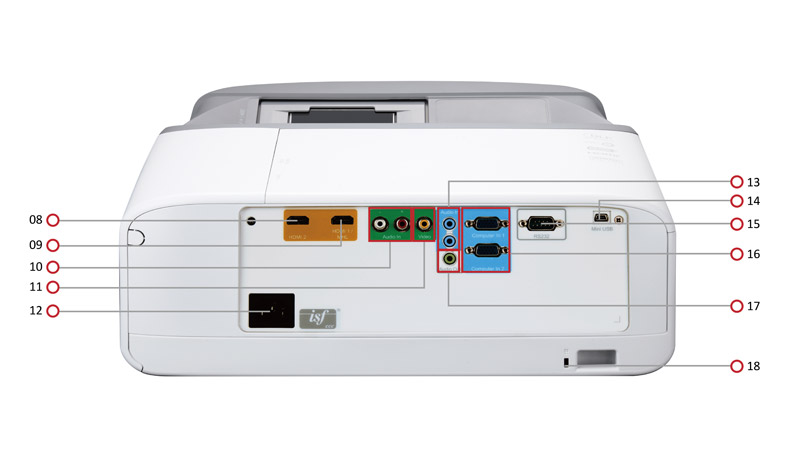

  8. HDMI / MHL
  9. HDMI
  10. Audio in (L/R)
  11. Composite
  12. AC in
  13. Audio in (3.5mm)
  14. Mini USB
  15. RS232
  16. VGA in
  17. Audio out
  18. Kensington® Lock Slot
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projector system: 0.65" 1080p (1920x1080)
    Brightness: 2000 ANSI Lumens
    Contrast Ratio with Sleep Mode: 10000:1
    Lamp Hour (Nor./SuperEco): 3000/7500
    Lamp Watt: 240W
    Throw Ratio: 0.22
    Keystone: H:+/-30° , V:+30°/-12°
    Optical Zoom: Fixed
    Audible Noise (Eco): 29 dB
    Speaker: 10W x 2 cube
  • INPUT
    RGB in (share with component): 2
    Composite: 1
    Audio-in (3.5mm): 2
    Audio-in (R/L): 1
    HDMI (back): 2 (1x MHL, 1x HDMI)
    HDMI/MHL (Front/PortAll): HDMI only
  • OUTPUT
    Audio Out: 1
    MicroUSB Wire (Power 5V2A): 5V/2A
  • CONTROL
    RS232: 1
    Mini USB: 1
  • DIMENSIONS AND POWERED
    Dimension (Physical): 434 mm(W)x 388 mm(D) x153 mm(H)
    17.09” (W) x 15.28 ” (D) x 6.02” (H)
    Net Weight: 6.075kg (13.38 lb)
    Power Voltage: 100~240Vac 50/60Hz
    Power Consumption: 410W (Max.)
  • STANDARD ACCESSORY
    Power cord: 1 or 2 (vary by region)
    VGA cable: 1
    Remote Control: 1 (w/laser pointer)
    QSG & CD: QSG: 1 / CD: 1
  • REGULATIONS
    Standard: Mexico Energy test/Registration, TUV-S
    Mark(Argentina), FCC,CE EMC,CB,,CCC,
    CEL,ROHS, REACH, SVHC, WEEE, ErP,
    Mexico NOM, cTUVus, RCM,
