Key Features
  • WUXGA 1920x1200 Resolution
  • 4000 ANSI lumens
  • SuperColor™ Technology
  • Dual HDMI
  • Up to 20,000 lamp hour (SuperEco+ mode)

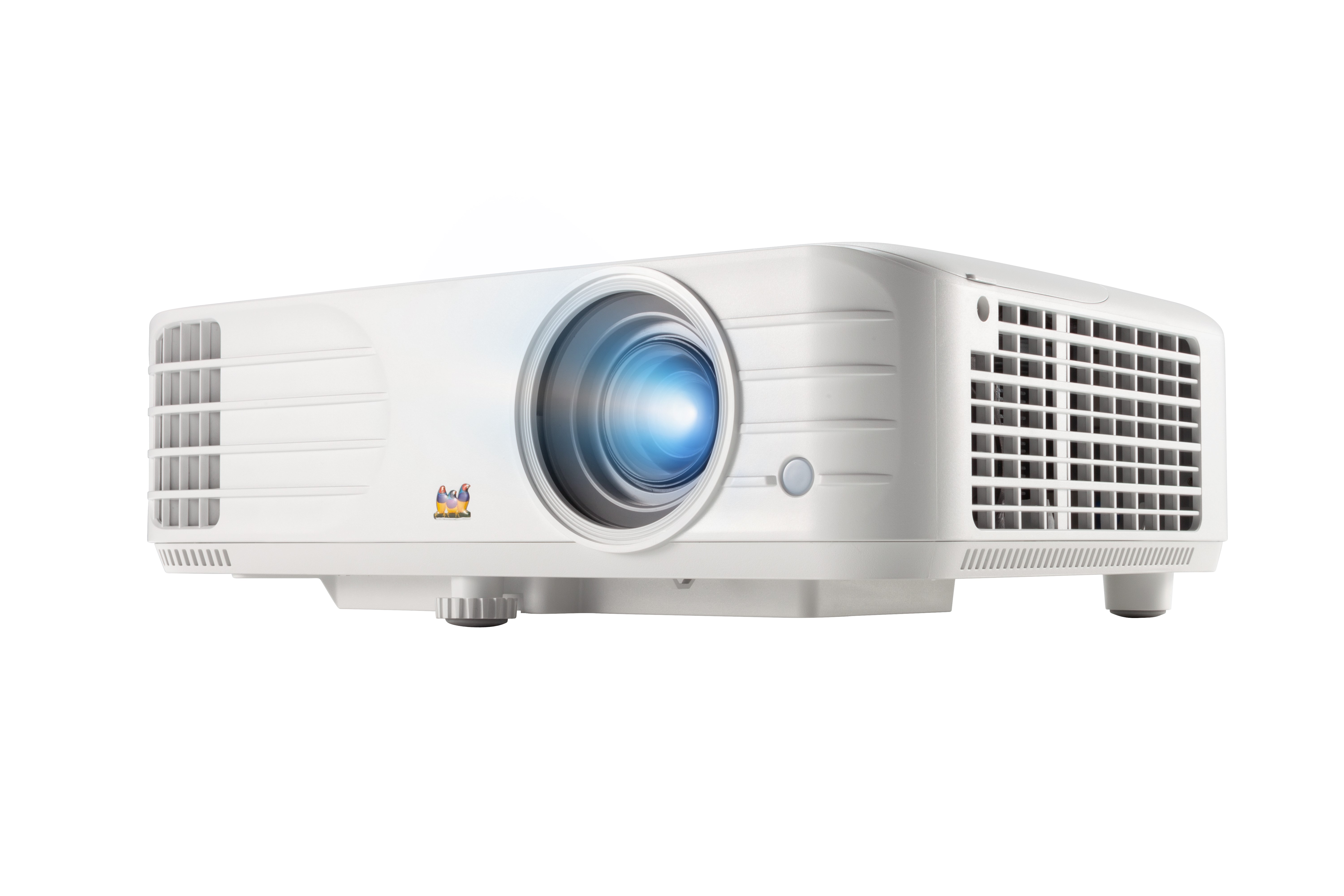

PG706WU
Product Description
The ViewSonic PG706WU features 4000 ANSI lumens of brightness to project the finest of details in any ambient setting. High brightness and a WUXGA 1920 x 1200 widescreen resolution provide you with perfect projection in any medium sized space, such as a meeting room or classroom. The PG706WU comes with an energy-saving SuperEco+ mode that reduces power consumption and extends lamp life to 20,000 hours, reducing the frequency of lamp replacement and lowering maintenance costs. In addition to dual HDMI, Video, S-Video, and VGA, the projector is integrated with RS232 and LAN, certified by Crestron, AMX, PJ Link and Extron networkable solutions, making it easy to control and monitor the projector remotely.
  1. Keypad
  2. LED Indicator
  3. Lens
  4. Power Keypad
  5. Zoon/Focus
  6. Front IR
  7. USB Type A
  8. HDMI Port
  9. Audio In / Out
  10. Computer In
  11. Computer Out
  12. RS-232
  13. S-Video
  14. RJ45
  15. Kensington Lock
  16. Video
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1200
    Brightness: 4000 ANSI Lumens
    Dynamic Contrast Ratio with SuperEco Mode: 22000:1
    Display Colour: 1.07 Billion Colours
    Light Source Type: Lamp
    Light Source Life (Normal): 4000
    Light Source Life (SuperEco): 20000
    Lamp Watt: 245W
    Lens: F=2.0~2.05, f=15.843-17.445mm
    Projection Offset: 100%+/-6%
    Throw Ratio: 1.5-1.65
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.97m-10.66m
    (100"@3.23m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    RJ45 Input: 1
    (LAN control)
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 1 (5V/ 1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45: 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 355W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Net Weight: 2.79kg
    Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek Total 23 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    (w/ laser pointer)
    QSG: 1
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-120
