Key Features
  • Auto power off
  • 22,000:1 contrast ratio
  • SuperColor™ technology
  • 5 colour modes
  • Immersive 3D viewing

PA500S
Product Description
The ViewSonic PA500S projector for presentations offers impressive visual performance in small sized meeting rooms and classrooms. Packed with up to 3800 ANSI Lumens of brightness and a 22,000:1 contrast ratio, the PA500S projector is guaranteed to project the finest of details, even in brightly lit environments. ViewSonic’s exclusive SuperColor™ technology offers wide gamut color coverage that produces true-to-life image color for realistic and engaging image projection. Users can unlock 3D capabilities with 3D-ready technology. PA500S also comes with an energy efficient SuperEco feature which reduces lamp power consumption by up to 70%, and extends the lamp life to 15,000 hours on average.

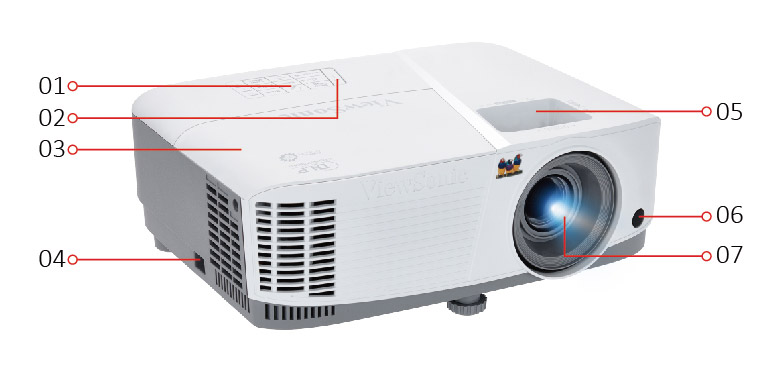

  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Security lock
  5. Zoom/Focus
  6. Front IR
  7. Projection Lens

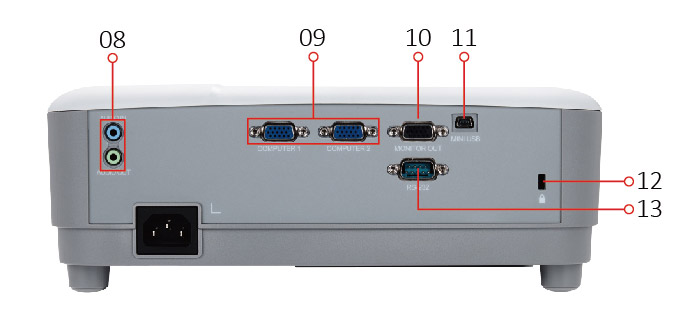

  8. Audio in/out
  9. Dual VGA
  10. VGA out
  11. Mini USB
  12. Kensington® Lock Slot
  13. RS232
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 800x600
    Brightness: 3800 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 15000
    Lamp Watt: 190W
    Lens: F=2.56-2.68, f=22-24.1mm
    Projection Offset: 120%+/-5%
    Throw Ratio: 1.96-2.15
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.19m-13.11m
    (100"@3.98m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 2
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type Mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 260W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.2kg
    Gross Weight: 3.24Kg
    Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
    Packing Dimensions: 365x300x188mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Total 22 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-108
    Air Filter: RSPL
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
