Projector
LS550WHE
Key Features
- 3rd generation LED technology with 30,000 hour lifespan
- 3,000 ANSI Lumens offering bright images in any environment
- Instant power on/off for efficient use
- 0.49 short throw ratio for minimal space consumption
- 360° projection and H/V keystone for easy installation
- Comprehensive LAN control for efficient management
Product Description

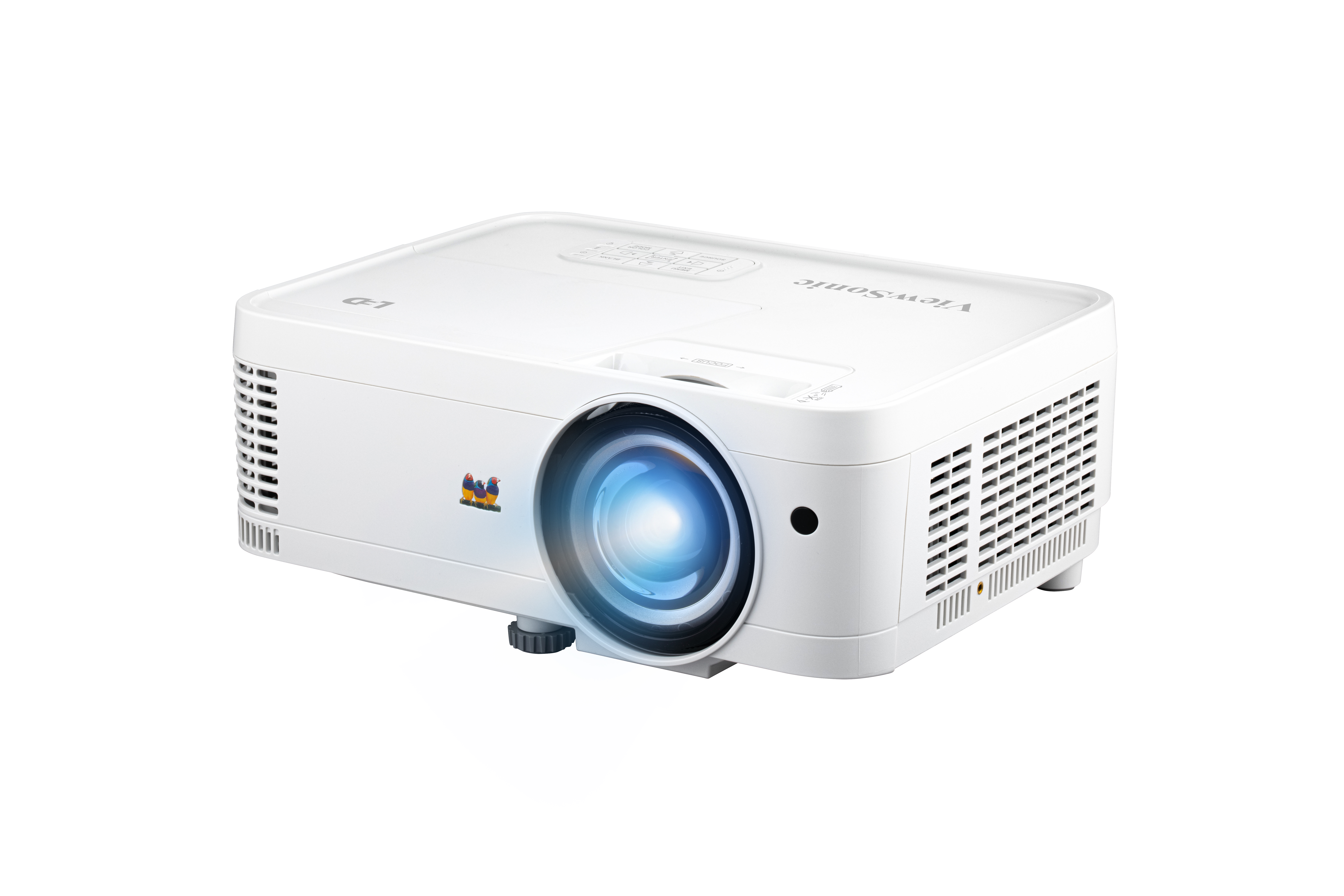

The LS550WHE is ViewSonic’s first lamp-free high brightness WXGA short throw projector for business and education. Built with advanced 3rd generation LED technology, the LS550WHE provides 3,000 ANSI Lumens and eliminates frequent lamp replacement and toxic mercury for a safer and greener environment, offering a phenomenal lifespan of 30,000 hours, less power consumption, true-to-life colors with 125% Rec.709, and instant power on/off capability for efficient use. The 0.49 short throw lens provides a 100” screen from just 1.06m away, delivering exceptional space efficiency and freeing presenters from blinding lights. Installation and setup are hassle-free with 360° tilt angle projection, H/V Keystone, and 4 corner adjustment capabilities while its comprehensive LAN control eases multiple device management and is compatible with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController.
- LED Indicator
- Keypad
- Power Button
- Focus Ring
- Lens
- Front IR
- Audio In
- Audio Out
- HDMI
- USB Type A(5V/2A,Service)
- LAN
- RS-232
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Native Resolution: 1280x800 Brightness: 3000 (ANSI Lumens) Contrast Ratio: 3000000:1 Display Color: 1.07 Billion Colors Light Source Type: LED Light Source Life (hours) with Normal Mode: up to 30000 Lamp Watt: RGB LED Lens: F=2.6, f=6.9mm Projection Offset: 110%+/-5% Throw Ratio: 0.49 Optical Zoom: Fixed Digital Zoom: 0.8x-2.0x Image Size: 60"-300" Throw Distance: 0.63m-1.58m (87"@0.92m) Keystone: H:+/-40° , V:+36°/-40° Audible Noise (Normal): 30dB Audible Noise (Eco): 26dB Input Lag: 16ms Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080) HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Horizontal Frequency: 15K-102KHz Vertical Scan Rate: 23-120Hz Interactive Camera: Optional (vTouch-10s) -
INPUT
HDMI: 1(HDMI 1.4/ HDCP 1.4) Audio-in (3.5mm): 1 -
OUTPUT
Audio-out (3.5mm): 1 Speaker: 2W USB Type A (Power): 1 (5V/2A) -
CONTROL
RS232 (DB 9-pin male): 1 RJ45 (LAN control): 1 USB Type A (Services): 1(share with USB A Output) -
OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz(AC in) Power Consumption: Normal: 157W Standby: <0.5W Operating Temperature: 0~40℃ Carton: Brown Net Weight: 2.45kg Gross Weight: 3.55kg Dimensions (WxDxH) with Adjustment Foot: 293x221x115mm Packing Dimensions: 365x300x188mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Power Cord: 1 Remote Control: 1 QSG: Yes Lens Cover: Yes Warranty Card: Yes (CN Only) -
OPTIONAL ACCESSORY
Wall/Ceiling Mount: PJ-WMK-305PJ-WMK-007 Carry Bag: PJ-CASE-008
