Fitur Utama
  • Laser phosphor technology
  • WUXGA resolution
  • 30,000 hours lifespan
  • Built-in HDBaseT receiver
  • H/V lens shift & 1.65X optical zoom

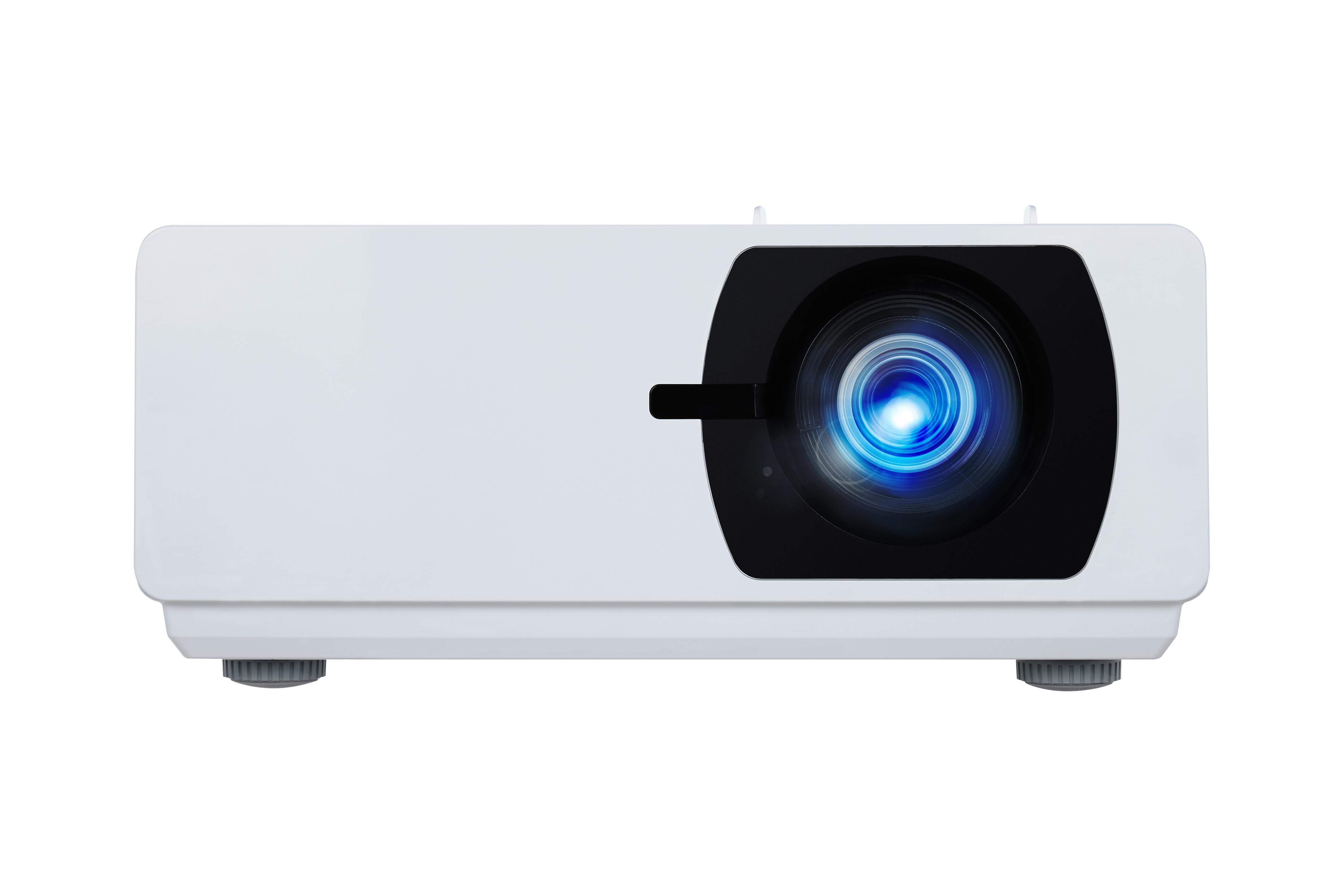

LS800WU
Deskripsi Produk
The LS800WU shines bright in virtually any environment with 5,500 ANSI Lumens of high-brightness projection and WUXGA resolution clarity. The projector comes equipped with a laser phosphor technology capable of achieving up to 30,000 hours of maintenance free projection and is capable of 24/7 continuous operation to provide a dramatically durable solution for public use. H/V lens shift and 1.65X optical zoom offers additional flexibility and makes the projectors adaptable to a wide array of installation settings. The projector’s built-in HDBaseT receiver is able to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p and 70 meters for 4K/2K) when combined with a cat5e/cat6 cable and is compatible with any certified HDBaseT transmitter. Addition features such as portrait mode and 360-degree projection allow users to deliver a fresh visual perspective for creative applications such as staging and advertising.

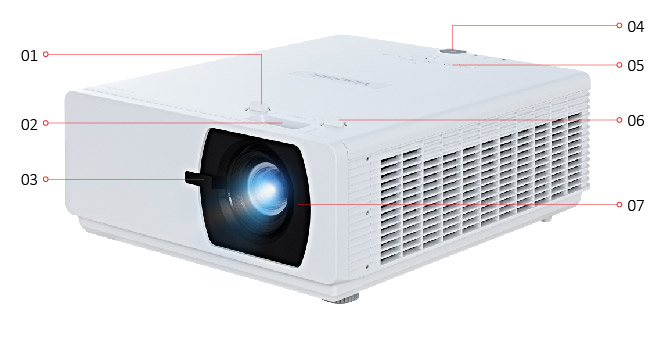

  1. Horizontal lens shift adjustment
  2. 1.65X optical zoom
  3. Front IR
  4. Power Key & Top IR
  5. Keypad
  6. Vertical lens shift adjustment
  7. Focus adjustment

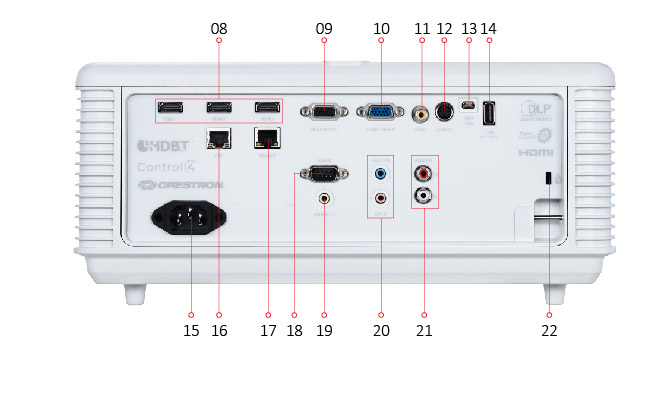

  8. HDMI x3
  9. Computer in
  10. Monitor out
  11. Video
  12. 3D sync(VESA)
  13. Mini USB for Service
  14. USB type A(5V/1.5A)
  15. AC in
  16. LAN(RJ45)
  17. HDBaseT(RJ45)
  18. RS232
  19. Audio out
  20. Audio in/Mic in
  21. Audio in(R/L)
  22. Kensington lock
Kunjungi Kami
  • www.viewsonic.com
  • SPECIFICATION
    Resolusi Asli: 1920x1200
    DC type: DC3
    Kecerahan: 5500 ANSI Lumens
    Contrast Ratio with SuperEco mode: 100000:1
    Display Color: 1.07 Billion Colors‎
    Sumber cahaya: Laser Phosphor system
    Light source life (Nor/SuperEco): 20000/30000
    Watt Lampu: Laser Bank x 4
    Lensa: f2.45-3.13, f=17.23-27.9mm
    Proyeksi Offset: 130%+/-10%
    Throw Ratio: 1.15-1.9
    Image size: 50" - 300"
    Throw Distance: 1.24-7.43m (100"@2.48m )
    Keystone: H:+/-30° , V:+/-25°
    Lens Shift V. Range: Yes (-2.4% +9.2%)
    Pergeseran Lensa Jarak H.: Yes (-2.5% +2.5%)
    Zoom Optik: 1.65x
    Audible Noise (Normal/Eco): 34dB/32dB
    Dukungan Resolusi: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    Kompatibilitas HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Kompatibilitas Video: NTSC, PAL, SECAM
    Frekuensi Horizontal: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (berbagi dengan komponen): 1
    Gabungan: 1
    Audio masuk (3,5 mm): 1
    Audio masuk (RCA R / L): 1
    Microphone in: 1
    HDMI (HDCP): 3 (HDMI 1.4/ HDCP 1.4)
    VESA 3D (Sinkronisasi): 1
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 5W x 2
    USB type A (Power): 1 (5V/1.5A)
  • KONTROL
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
    HDBaseT: 1
  • LAINNYA
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Konsumsi daya: Normal: 430W
    Standby: <0.5W
    Suhu Operasional: 0~40℃
    Carton: Brown
    Berat bersih: 11.0kg
    Dimensions (WxDxH) w/adjustment foot: 360x440x161mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA cable: 1
    Kontrol Jarak Jauh: 1 (w/Laser pointer)
    QSG: 1
