Fitur Utama
  • PCAP touch technology for fast and accurate touch response​
  • USB-C for instant plug-and-play connectivity via a single cable​
  • Ergonomic flexibility for optimal positioning in any task or setup​
  • Extended Windows Ink workspace for digital writing and design​
  • Compatible with all devices that support Microsoft Pen Protocol

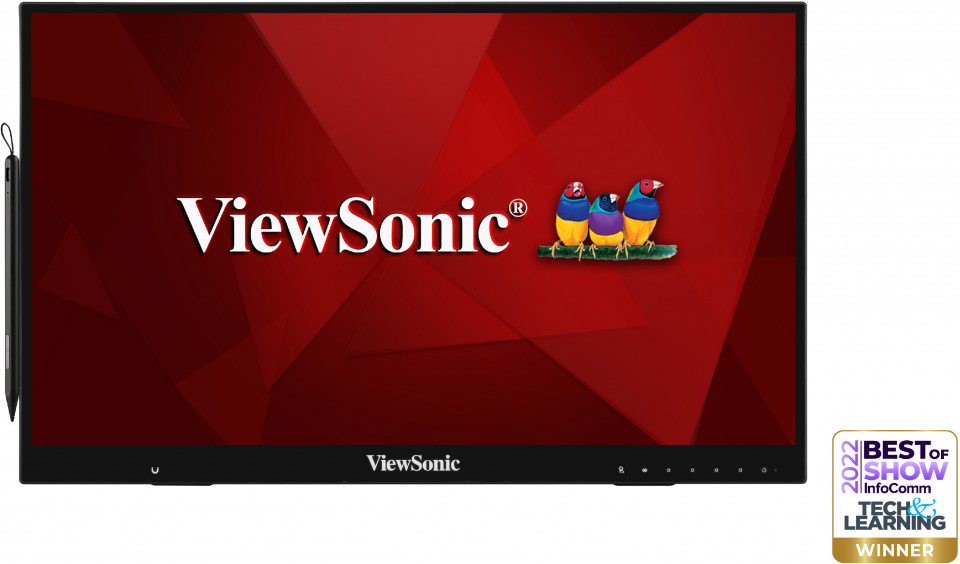

ID2456
Deskripsi Produk
Expand your workspace with the ID2456, a 24” Full HD touch monitor designed to break free from the limitations of a mouse and give you the freedom of working with a pen in hand. The MPP2.0 active pen combines with PCAP technology and Palm Rejection to deliver pinpoint accuracy when writing or drawing so you can optimize presentations, collaboration, and communication with the ability to freely capture and convey ideas in digital form. The multifunctional display covers 120% sRGB color gamut for a stunning viewing experience supported by advanced eye-care technology and ergonomic flexibility. Complete with seamless connectivity via USB-C and compatibility with all devices that support Microsoft Pen Protocol, the ID2456 adds a natural, intuitive, and hands-on experience to your personal workflow.​
  1. Menu Control
  2. HDMI in
  3. USB-C
  4. VGA
  5. HDMI out
  6. Earphone
  7. Audio in
  8. VESA Compatible(Wall Mount 100 x 100mm)
  9. Internal Speakers
  10. USB-A
  11. USB-B
  12. AC in
Kunjungi Kami
  • www.viewsonic.com
  • TAMPILAN
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Jenis Panel: IPS Technology
    Resolusi: 1920 x 1080
    Jenis Resolusi: FHD (Full HD)
    Rasio Kontras Statis: 1,000:1 (typ)
    Rasio Kontras Dinamis: 50M:1
    Sumber cahaya: LED
    Kecerahan: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Waktu Respon (GTG w / OD): 5ms
    Sudut Pandang: 178º horizontal, 178º vertical
    Backlight Life (Jam): 30000 Hrs (Min)
    Lengkungan: Flat
    Refresh Rate (Hz): 60
    Filter Cahaya Biru: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 88% size (Typ) sRGB: 120% size (Typ)
    Ukuran Piksel: 0.275 mm (H) x 0.275 mm (V)
    Layar sentuh: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Anti-Glare, Hard Coating (6H)
    Cover Glass Thickness: 2mm
  • KESESUAIAN
    Resolusi PC (max): 1920x1080
    Resolusi Mac® (maks): 1920x1080
    Sistem Operasi PC: Windows 10 certified; macOS tested
    Resolusi Mac® (min): 1920x1080
  • KONEKTOR
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger)
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    HDMI 1.4 Out: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Speaker Internal: 3Watts x2
  • POWER
    Mode Eco (Hemat): 25.72W
    Eco Mode (optimized): 29.22W
    Konsumsi (khas): 31W
    Konsumsi (maks): 32W
    Tegangan: AC 100-240V
    Stand-by: 0.5W
    Sumber Daya listrik: Internal Power Supply
  • PERANGKAT KERAS TAMBAHAN
    Slot Kunci Kensington: 1
  • KONTROL
    Kontrol Fisik: Key 0 (touch enable/disable), Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    Pada Tampilan Layar: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Suhu: 32°F to 104°F (0°C to 40°C)
    Kelembaban (tanpa kondensasi): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • SINYAL INPUT
    Frekuensi Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 15 ~ 86KHz, Type C: 15 ~ 86KHz
    Frekuensi Vertikal: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, Type C: 24 ~ 75Hz
  • VIDEO INPUT
    Sinkronisasi Digital: TMDS - HDMI (v1.4), Micro-Packet - Type C
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMIS
    Miring (Maju / Mundur): 15º / 70º
  • BERAT (IMPERIAL)
    Net (lbs): 11
    Bersih Tanpa Dudukan (lbs): 11
    Gross (lbs): 15
  • WEIGHT (METRIC)
    Net (kg): 5
    Jaring Tanpa Dudukan (kg): 5
    Gross (kg): 6.8
  • DIMENSI (IMPERIAL) (WXHXD)
    Kemasan (in.): 23.8 x 15.9 x 4.9
    Fisik (in.): 21.44 x 13.11 x 1.7
    Fisik Tanpa Berdiri (masuk): 21.44 x 13.11 x 1.7
  • DIMENSI (METRIK) (WXHXD)
    Kemasan (mm): 605 x 405 x 125
    Fisik (mm): 544.6 x 333.1 x 43.3
    Physical Without Stand (mm): 544.6 x 333.1 x 43.3
  • UMUM
    Regulasi: cTUVus, FCC-B, ICES003, Energy Star, CEC, CE, CE EMC, LVD/CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, BIS
    ISI PAKET: ID2456 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1, MPP2.0 Active Pen x1
    Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards
