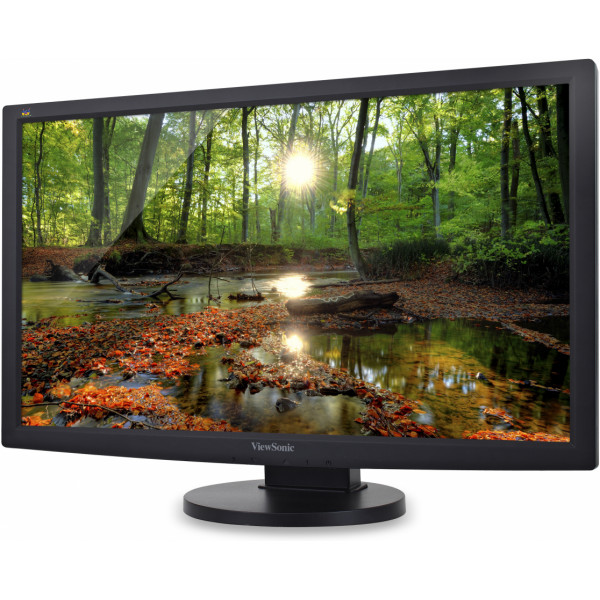

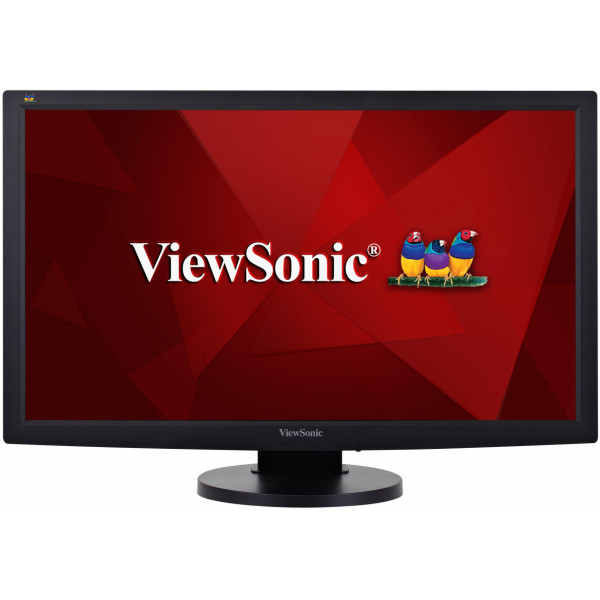

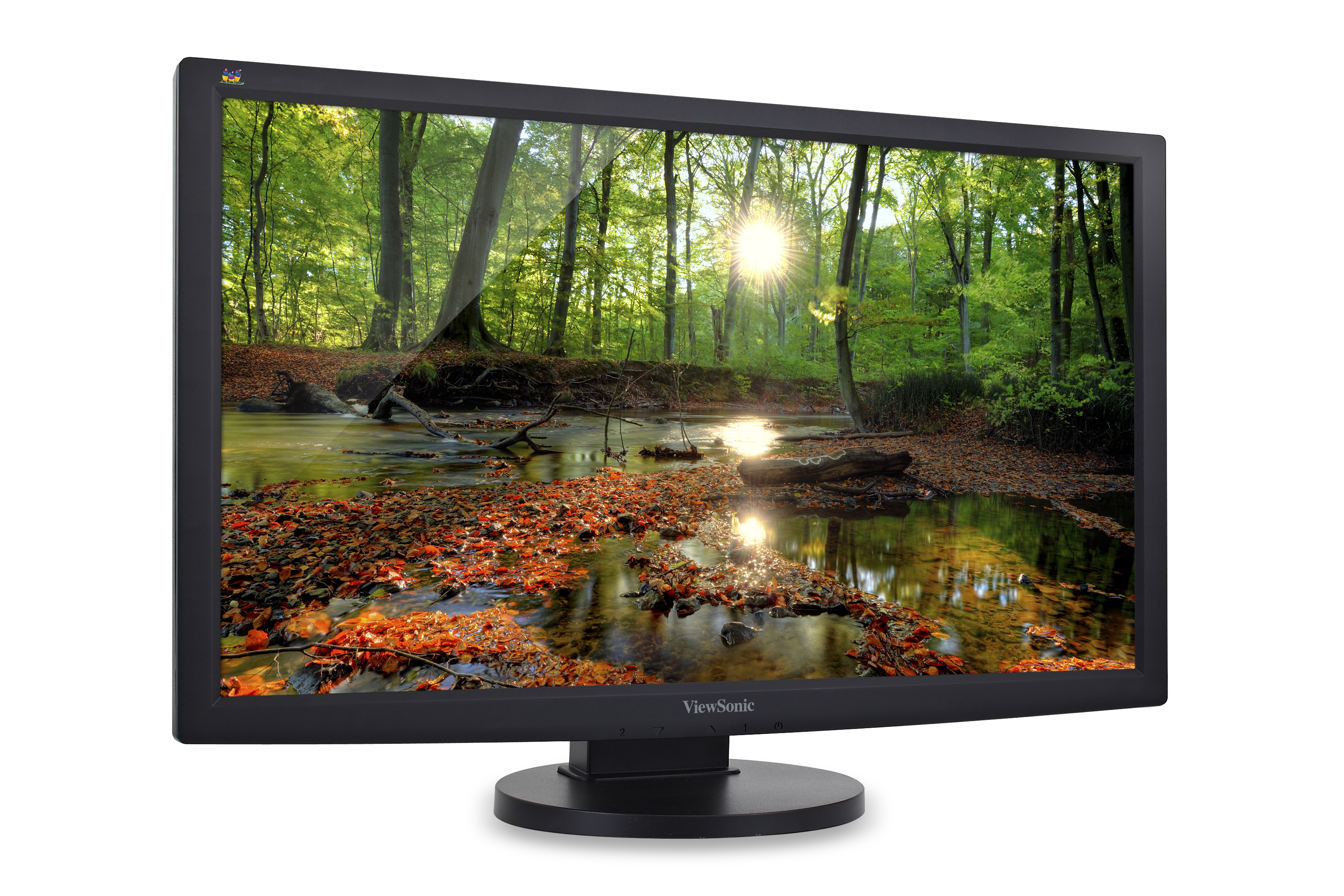

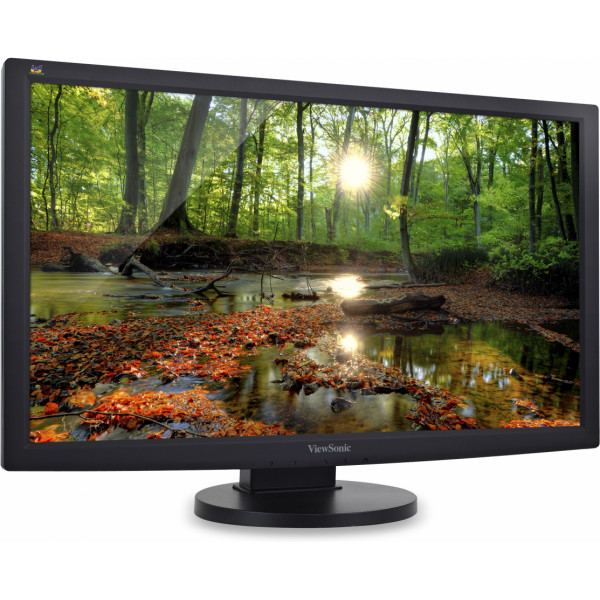

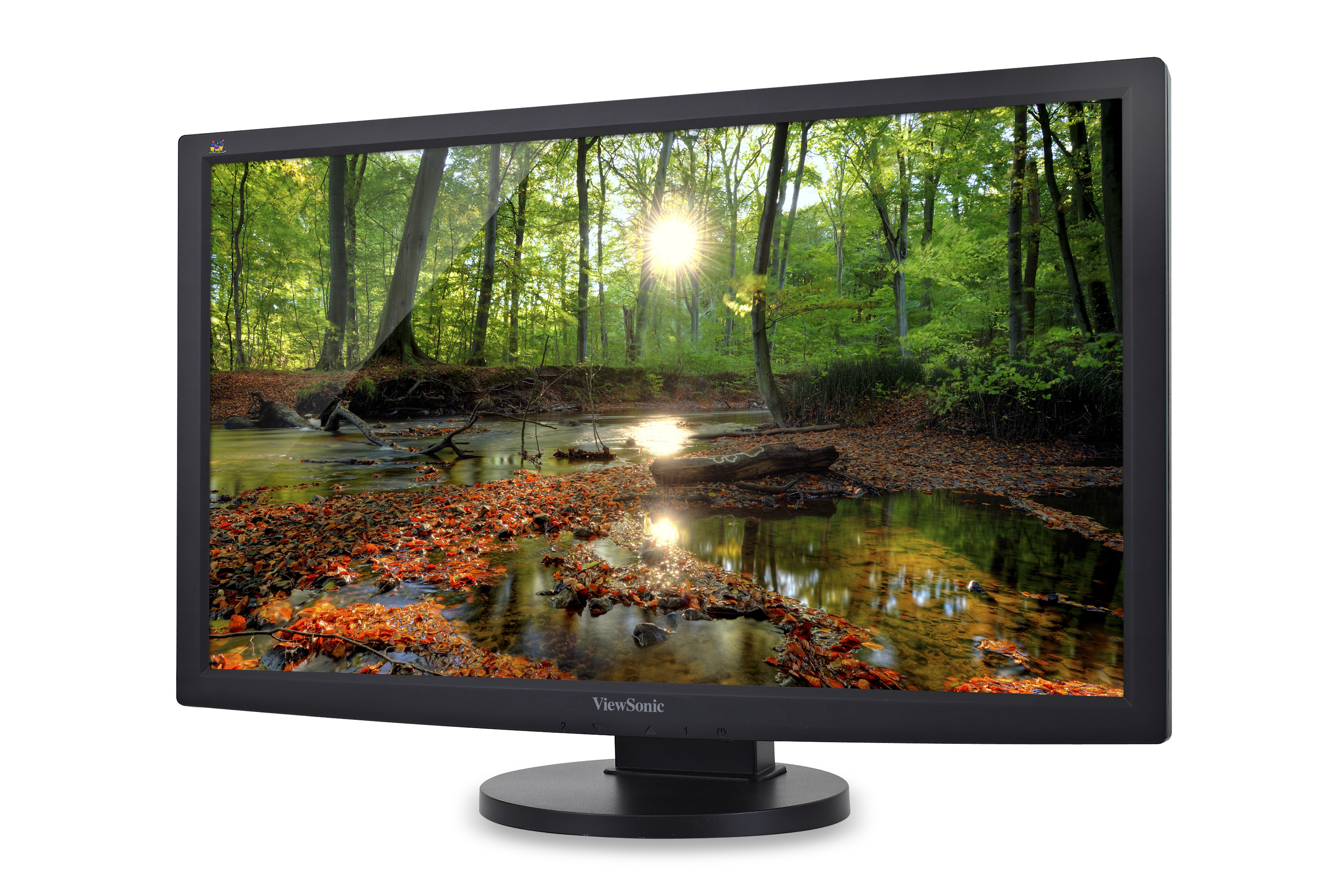

VG2233-LED

22" Ergonomic Business Monitor

Full HD 1080p resolution
Flicker-Free and Blue Light Filter
VGA and DVI inputs
Eco-mode
VESA mountable

VIDEO
GALERI

SPESIFIKASI

Tampilan
Display Size (in.): 22
Viewable Area (in.): 21.5
Jenis Panel: TN Technology
Resolusi: 1920 x 1080
Jenis Resolusi: FHD (Full HD)
Rasio Kontras Statis: 1,000:1 (typ)
Rasio Kontras Dinamis: 20M:1
Sumber cahaya: LED
Kecerahan: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Sudut Pandang: 170º horizontal, 160º vertical
Backlight Life (Jam): 40000 Hrs (Min)
Lengkungan: Flat
Refresh Rate (Hz): 60
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Ukuran Piksel: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Kesesuaian
Resolusi PC (max): 1920x1080
Resolusi Mac® (maks): 1920x1080
Sistem Operasi PC: Windows 7/8 certified; macOS tested
Resolusi Mac® (min): 1920x1080
Konektor
VGA: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Mode Eco (Hemat): 15W
Eco Mode (optimized): 18W
Konsumsi (khas): 22W
Konsumsi (maks): 26W
Tegangan: AC 100-240V
Stand-by: 0.5W
Sumber Daya listrik: Internal Power Supply
Perangkat Keras Tambahan
Slot Kunci Kensington: 1
Kontrol
Kontrol Fisik: 1, 2, Up, Down, Power
Pada Tampilan Layar: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Suhu: 32°F to 104°F (0°C to 40°C)
Kelembaban (tanpa kondensasi): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Sinyal Input
Frekuensi Horizontal: 24 ~ 82KHz
Frekuensi Vertikal: 50 ~ 75Hz
Video Input
Sinkronisasi Digital: TMDS - DVI-D
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomis
Penyesuaian Tinggi (mm): 100
Memutar: 340º
Miring (Maju / Mundur): -5º / 25º
Pivot (Kanan / Kiri): 90º / 0º
Berat (imperial)
Net (lbs): 10.3
Bersih Tanpa Dudukan (lbs): 6.8
Gross (lbs): 13.3
Weight (metric)
Net (kg): 4.7
Jaring Tanpa Dudukan (kg): 3.1
Gross (kg): 6
Dimensi (imperial) (wxhxd)
Kemasan (in.): 24.6 x 15.5 x 2
Fisik (in.): 19.9 x 14.41~18.34 x 8
Fisik Tanpa Berdiri (masuk): 19.9 x 12.3 x 2
Dimensi (metrik) (wxhxd)
Kemasan (mm): 624 x 393 x 51
Fisik (mm): 506 x 365.9~465.9 x 204
Physical Without Stand (mm): 506 x 312 x 51
Umum
ISI PAKET: VG2233-LED x1, 3-pin Plug (IEC C13 / CEE22) x1, DVI Cable (Male-Male) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
