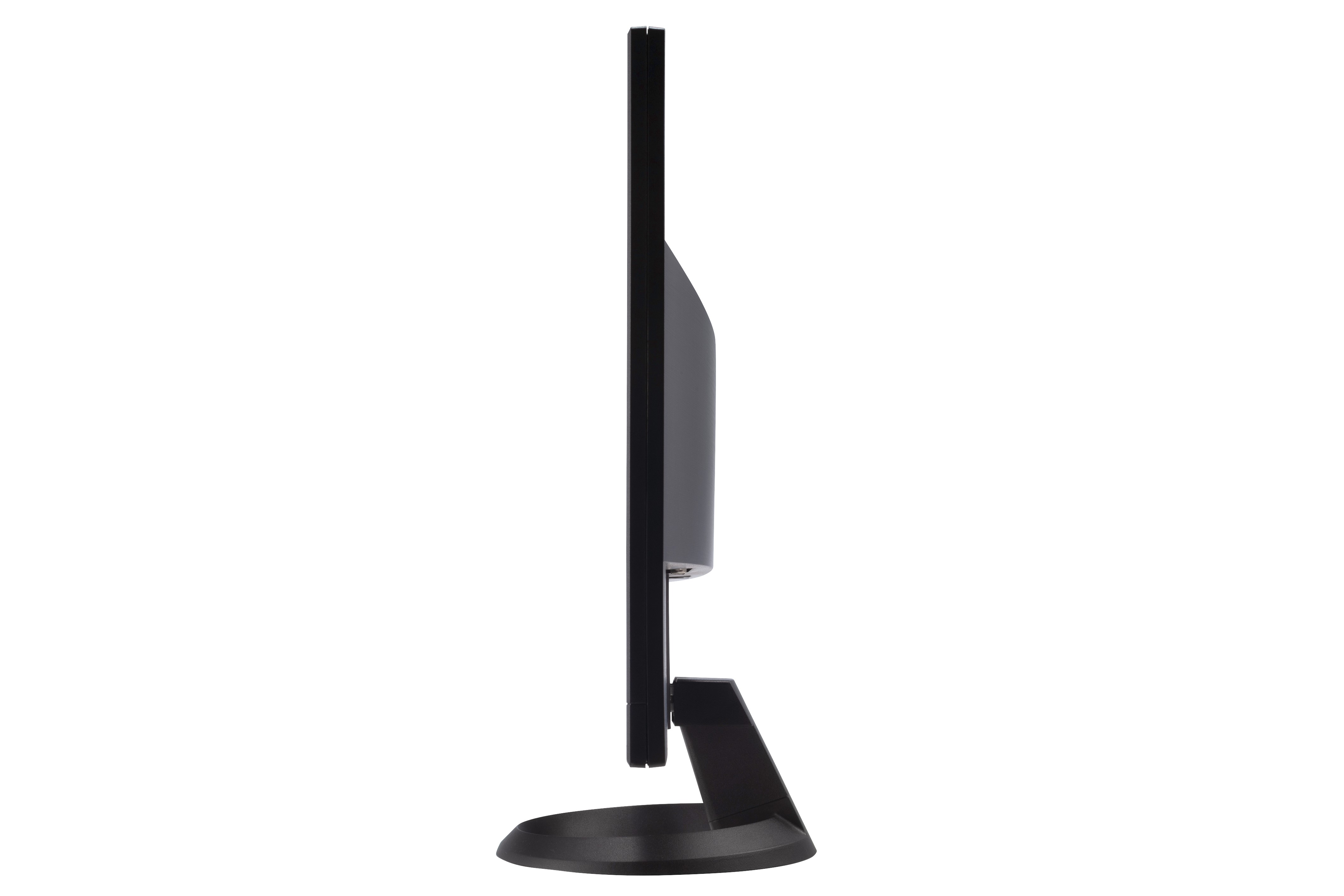

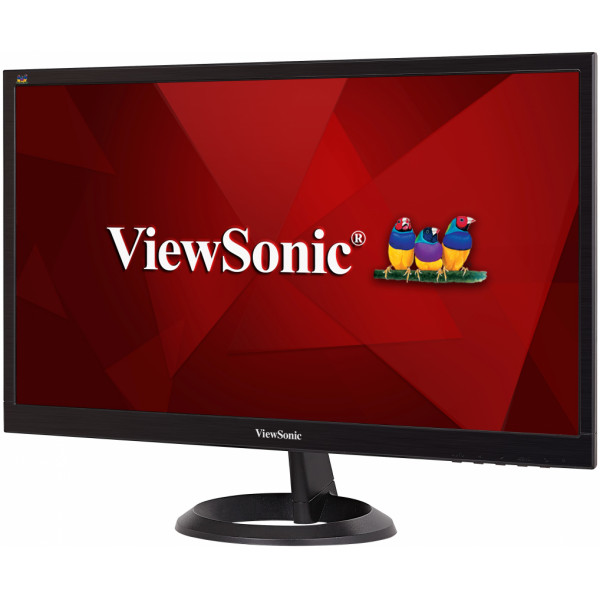

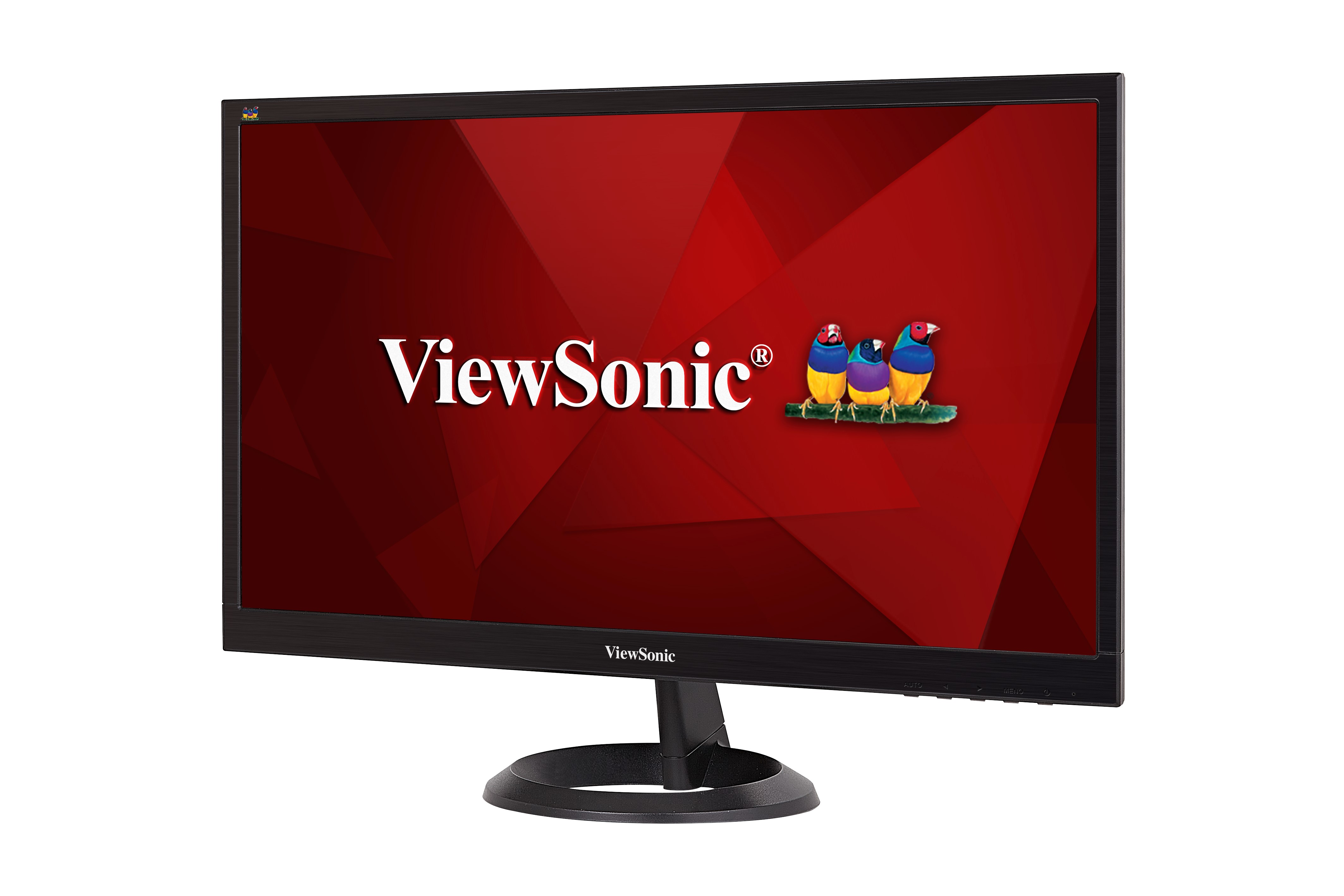

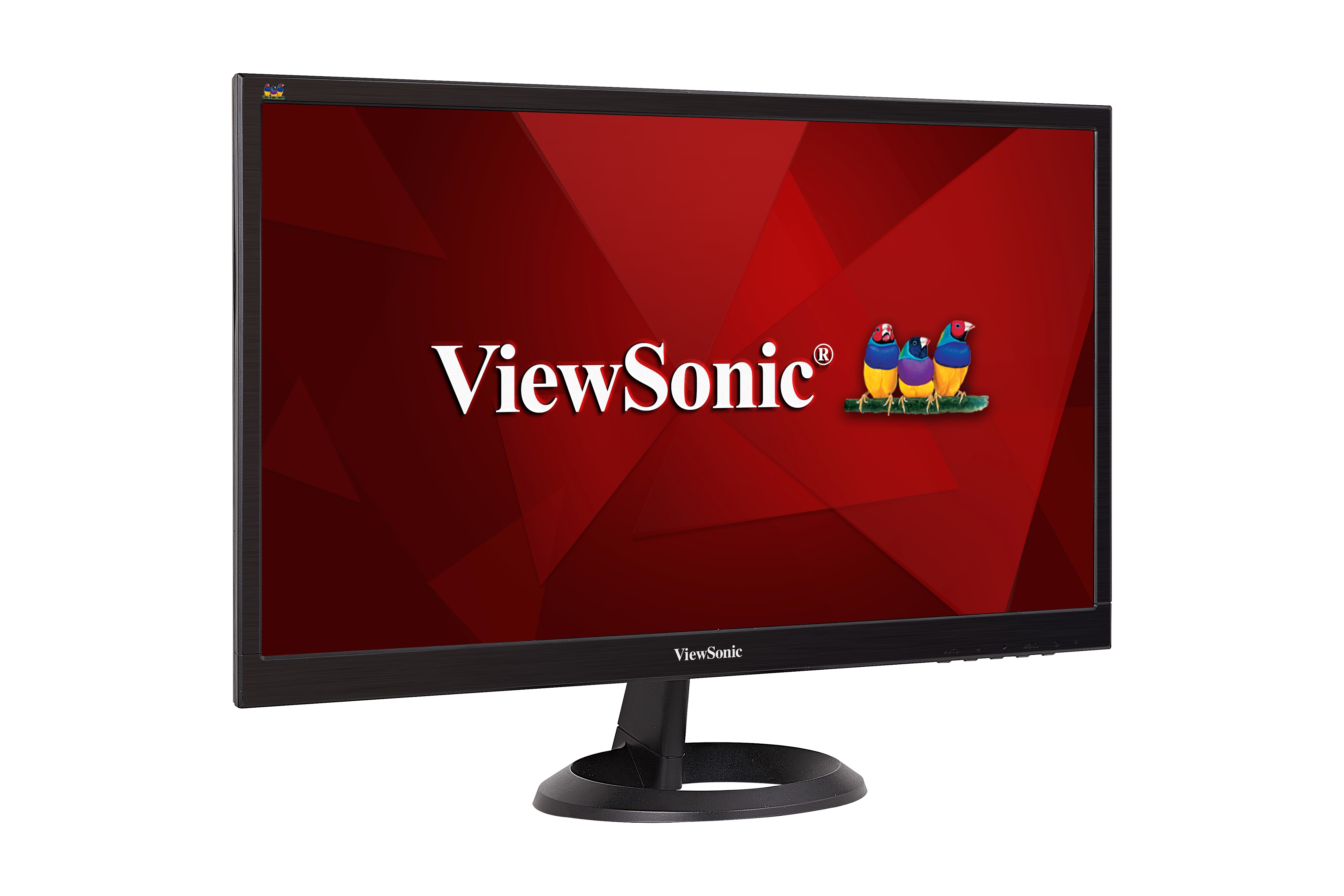

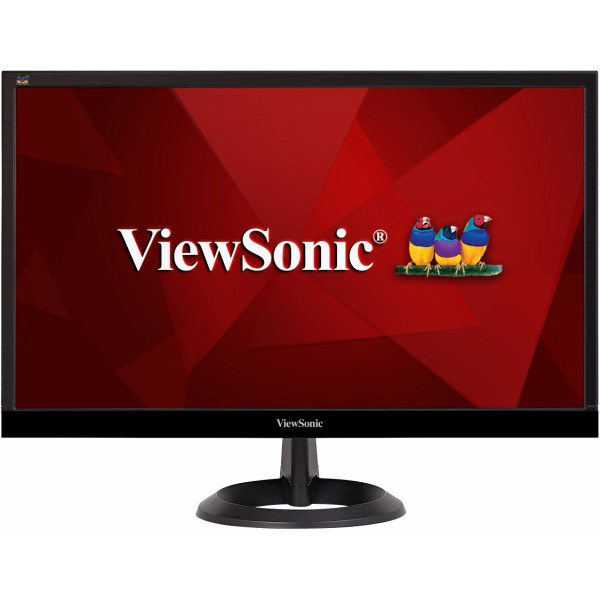

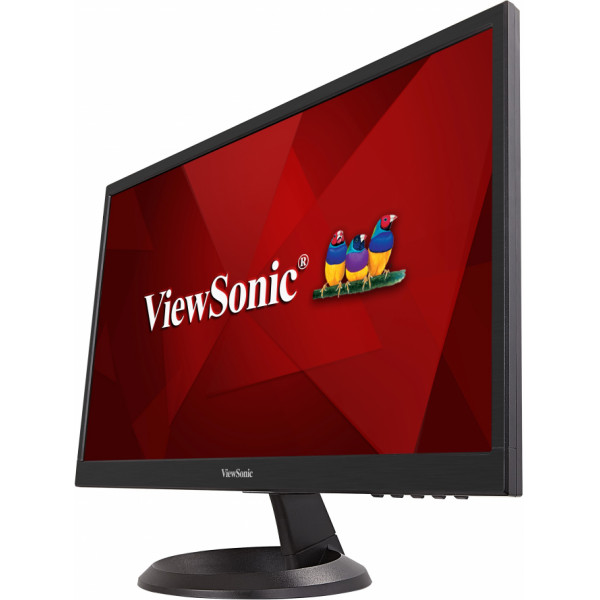

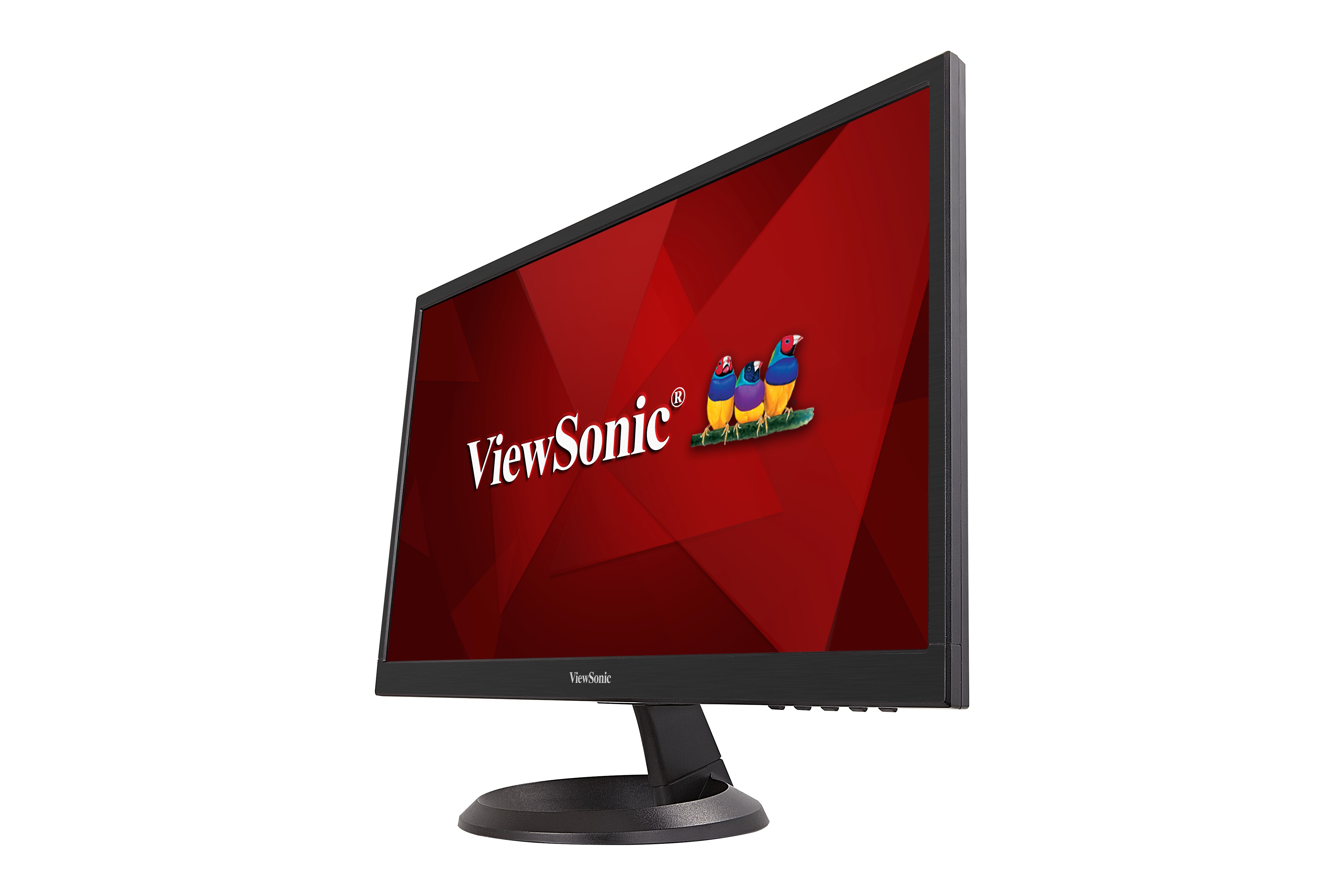

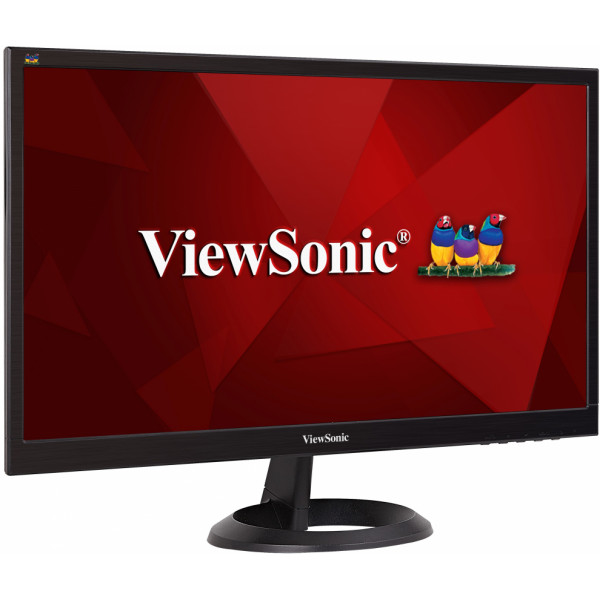

VA2261-6

22" 1080p Home and Office Monitor

ViewMode technology
VGA and DVI inputs
Flicker-Free and Blue Light Filter
Eco-mode
VESA mountable

GALERI

SPESIFIKASI

Tampilan
Display Size (in.): 22
Viewable Area (in.): 21.5
Jenis Panel: TN Technology
Resolusi: 1920 x 1080
Jenis Resolusi: FHD (Full HD)
Rasio Kontras Statis: 700:1 (typ)
Rasio Kontras Dinamis: 50M:1
Sumber cahaya: LED
Kecerahan: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Sudut Pandang: 90º horizontal, 65º vertical
Backlight Life (Jam): 30000 Hrs (Min)
Lengkungan: Flat
Refresh Rate (Hz): 60
Filter Cahaya Biru: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Ukuran Piksel: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Kesesuaian
Resolusi PC (max): 1920x1080
Resolusi Mac® (maks): 1920x1080
Sistem Operasi PC: Windows 7/8/8.1/10 certified; macOS tested
Resolusi Mac® (min): 1920x1080

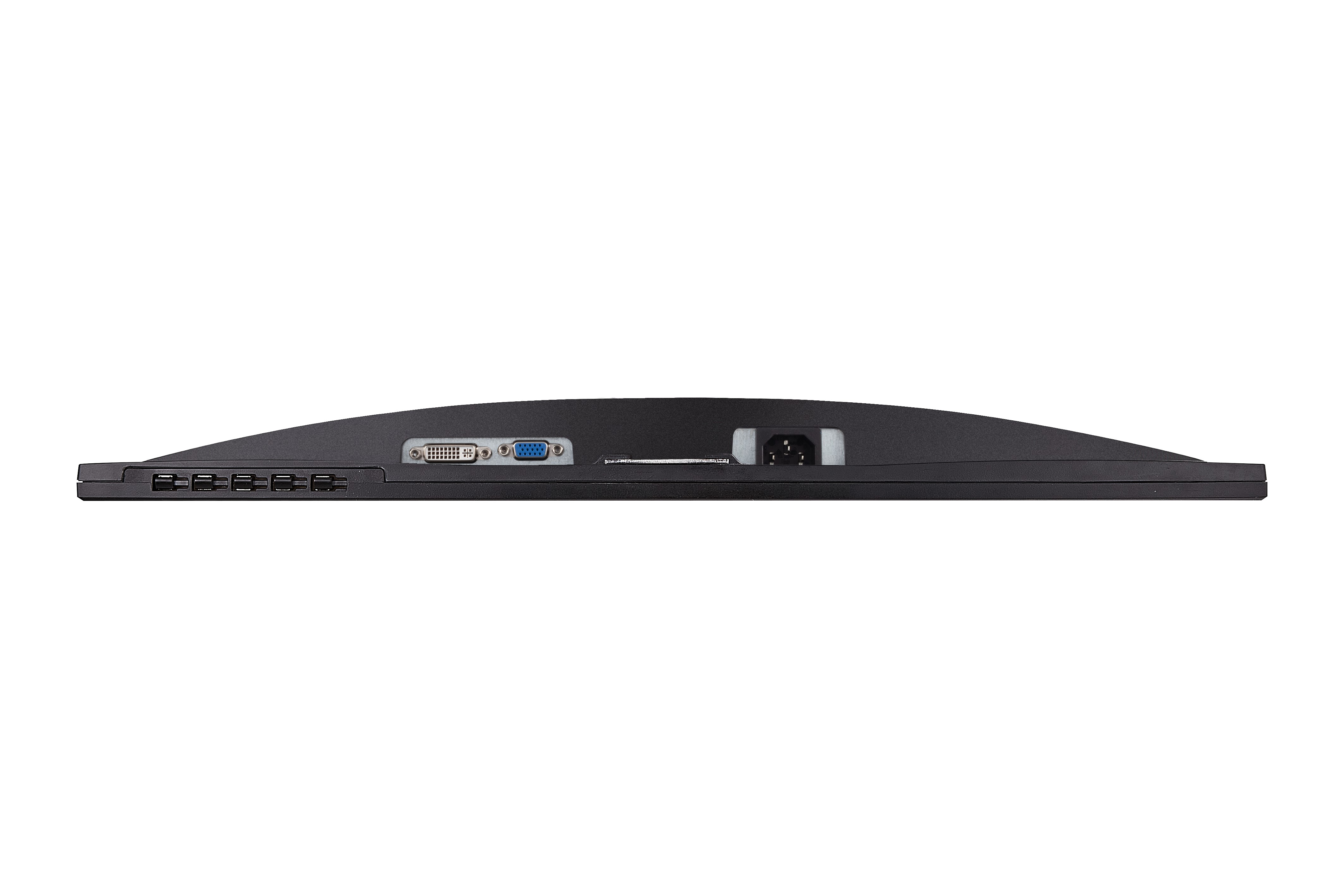

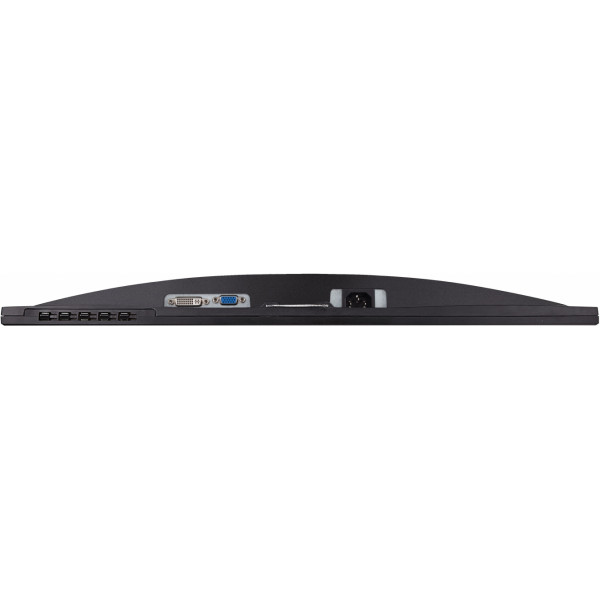

Konektor
VGA: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Mode Eco (Hemat): 15W
Eco Mode (optimized): 17W
Konsumsi (khas): 19W
Konsumsi (maks): 22W
Tegangan: AC 100-240V
Stand-by: 0.5W
Sumber Daya listrik: Internal Power Supply
Perangkat Keras Tambahan
Slot Kunci Kensington: 1
Kontrol
Kontrol Fisik: Auto, Left, Right, Menu, Power
Pada Tampilan Layar: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Suhu: 32°F to 104°F (0°C to 40°C)
Kelembaban (tanpa kondensasi): 20% to 90%

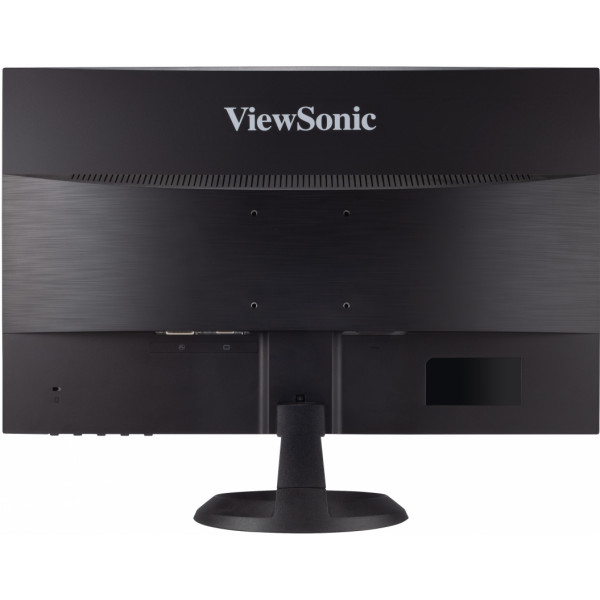

Wall Mount

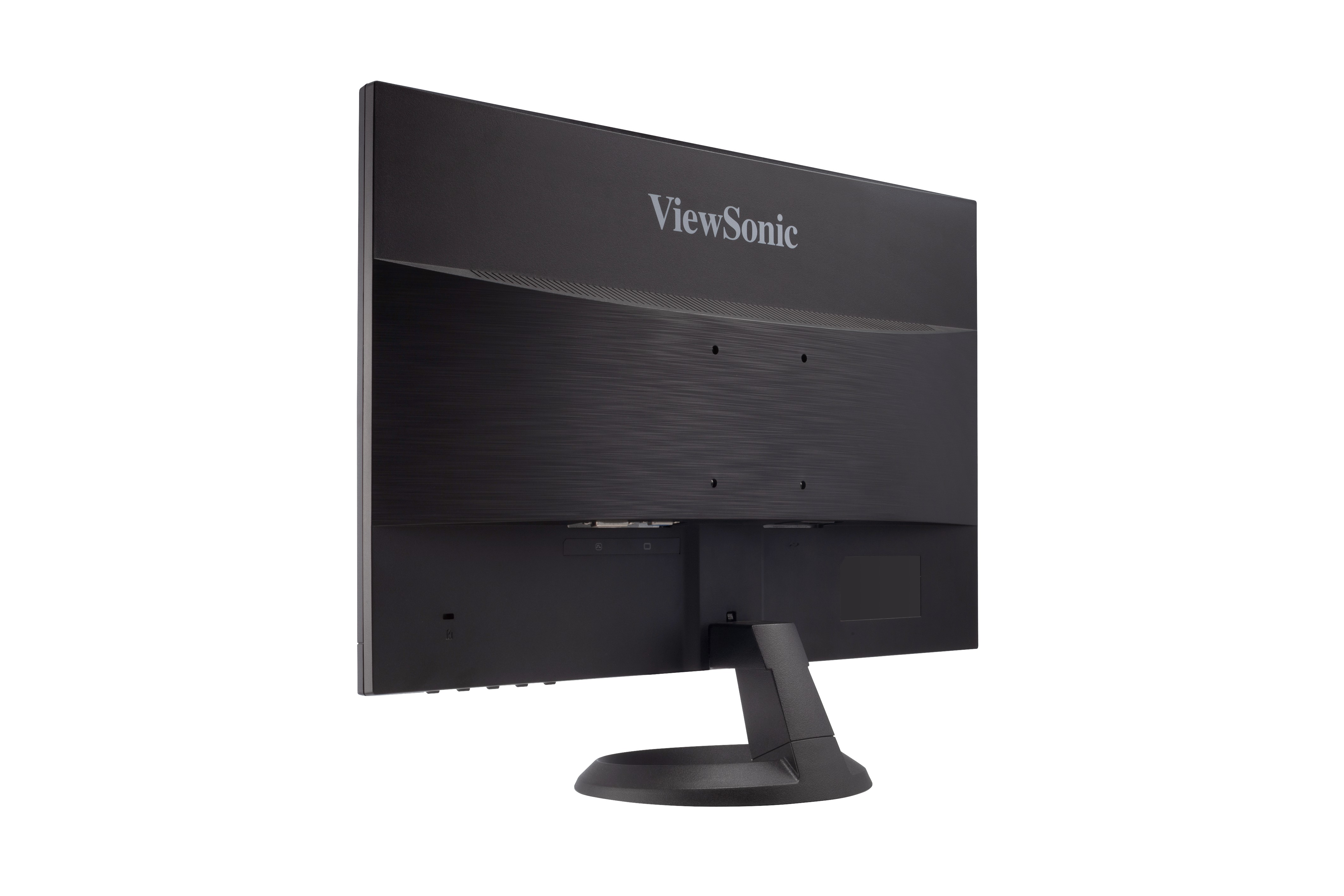

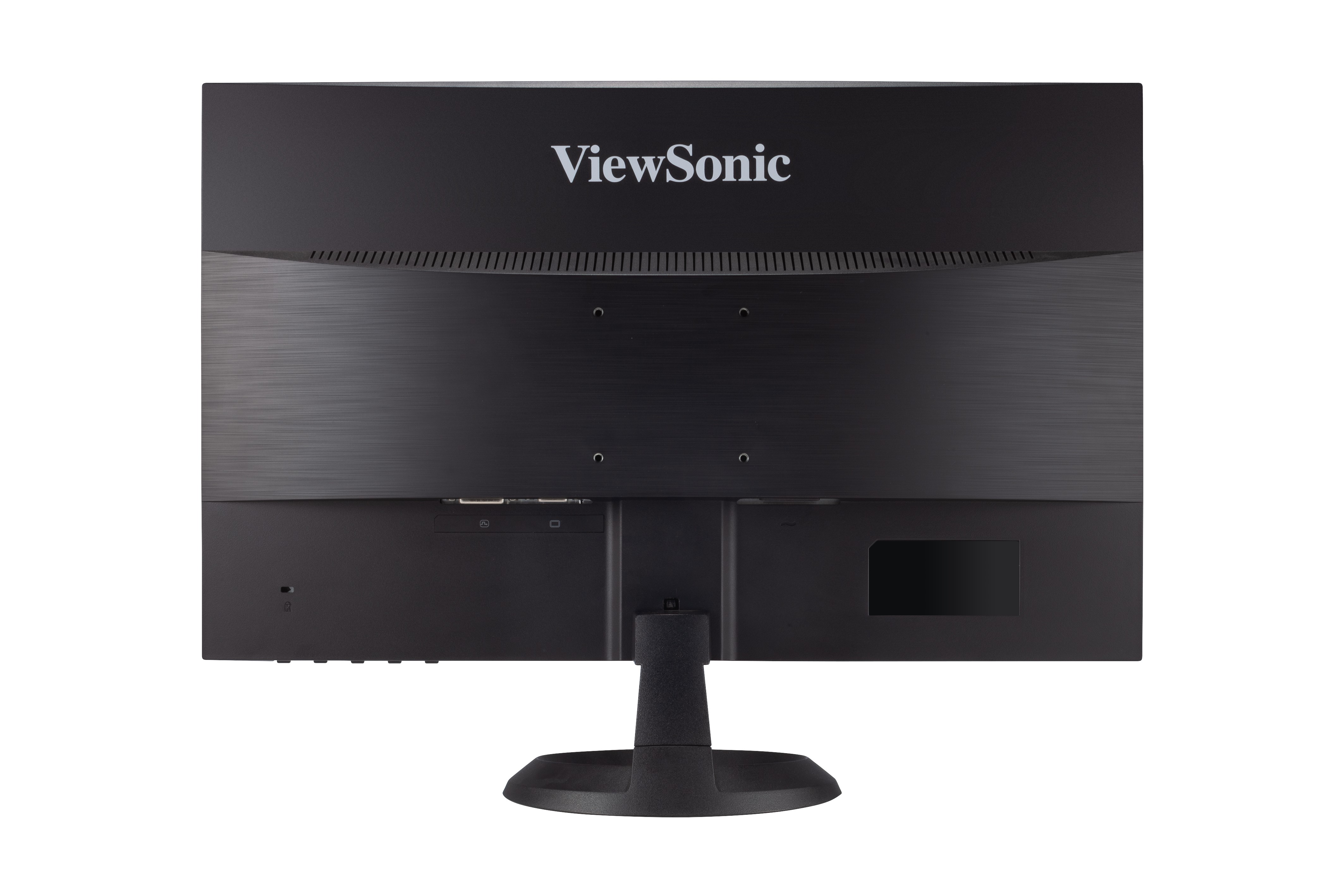

VESA Compatible: 75 x 75 mm
Sinyal Input
Frekuensi Horizontal: 24 ~ 82KHz
Frekuensi Vertikal: 50 ~ 75Hz
Video Input
Sinkronisasi Digital: TMDS - DVI-D
Analog Sync: Separate - RGB Analog
Ergonomis
Miring (Maju / Mundur): -5º / 15º
Berat (imperial)
Net (lbs): 6.2
Bersih Tanpa Dudukan (lbs): 5.5
Gross (lbs): 8.4
Weight (metric)
Net (kg): 2.8
Jaring Tanpa Dudukan (kg): 2.5
Gross (kg): 3.8
Dimensi (imperial) (wxhxd)
Kemasan (in.): 22.2 x 15.4 x 4.5
Fisik (in.): 19.9 x 15 x 7.1
Fisik Tanpa Berdiri (masuk): 19.9 x 12.2 x 1.9
Dimensi (metrik) (wxhxd)
Kemasan (mm): 565 x 390 x 115
Fisik (mm): 505 x 382 x 179
Physical Without Stand (mm): 505 x 311 x 48
Umum
ISI PAKET: VA2261-6 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
