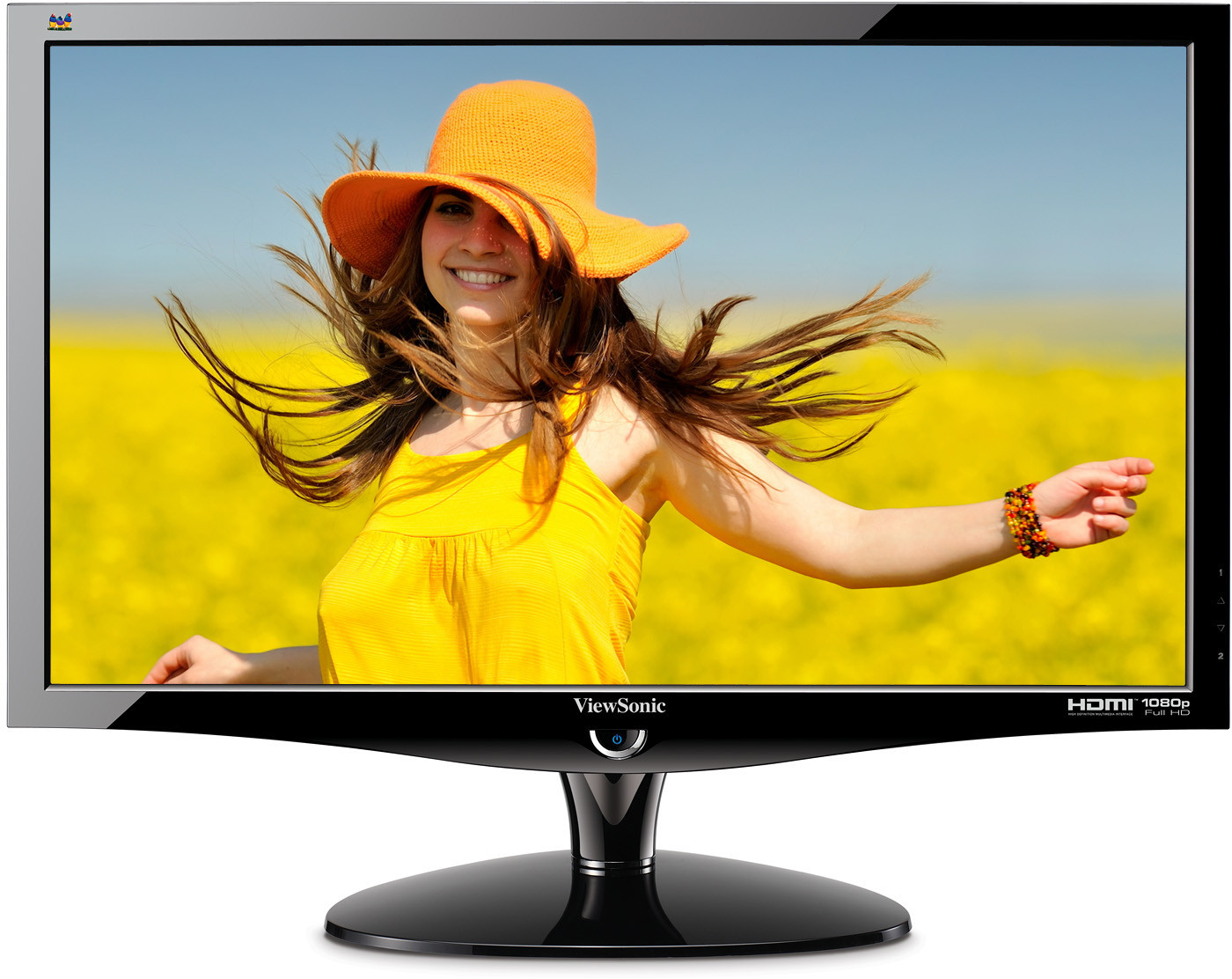

ViewSonic VX2439wm 60cm/ 23.6" Viewable Widescreen LCD

COLORS

Black

LCD

Kontrasztarány:	1000:1(typical)
Betekintési szögek:	170° (H), 160° (V)
Optimum Resolution:	1920×1080
Válaszidő:	5ms (typical) / 2ms (G to G)
Fényforrás:	50,000 hrs (minimum)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.2715 × 0.2715 (mm)
Colour Support:	16.7 Millions
Size:	60cm/ 23.6" wide Colour TFT Active Matrix LCD 16:9 aspect ratio
Fényerő:	300 (typical)
Dinamikus kontrasztarány:	100,000:1

COMPATIBILITY

PC: VGA up to 1920×1080 Non Interlaced

Mac®: 1920×1080 Non Interlaced
DIMENSIONS

Physical With Stand: 562 x 426 x 219 (mm)
INPUT

Sync: Separate Sync / Composite Sync / SOG

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–83kHz / 50–76Hz

CONNECTOR

Analogue:	1×15 pin mini D-sub
Digital:	1×DVI-D (with HDCP) / 1×HDMI 1.3
Teljesítmény:	Built-in power Adapter, 3-Pin plug
Audió:	Audio Out - 3.5 mm jack (blue) / Audio In - 3.5 mm jack (green )

POWER

Feszültség: AC 100-240V (Universal); 50/60Hz(Switch)

Fogyasztás: 50 W (maximum) with Audio

Save Mode (W): ≦1W

CONTROLS

Basic:

[1], [2], Power, Down[▼], Up[▲]

OSD:

Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, HDMI PC, HDMI AV,
Audio Adjust, Volume, mute, Audio input, Color Adjust, sRGB, 9300K, 7500K, 6500K, 5000K,
User Color [R, G, B], Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine
Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Display Mode, ECO
Mode, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD
Background, Auto Power Off, Sleep

VESA MOUNT COMPLIANT

100mm×100mm
AUDIO

Speakers: 2W × 2 (SRS Premium Sound)
WEIGHT

Bruttó: 7.37 kg

Net: 5.3 kg
OPERATING CONDITIONS

Páratartalom: 20 - 90 (%)

Hőmérséklet: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1920×1080 Non Interlaced
Mac®:	1920×1080 Non Interlaced

Sync:	Separate Sync / Composite Sync / SOG
Analogue:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency:	24–83kHz / 50–76Hz

Feszültség:	AC 100-240V (Universal); 50/60Hz(Switch)
Fogyasztás:	50 W (maximum) with Audio
Save Mode (W):	≦1W

Páratartalom:	20 - 90 (%)
Hőmérséklet:	0 - 40 (°C) / 32 - 104 (°F)

Bruttó:	7.37 kg
Net:	5.3 kg
