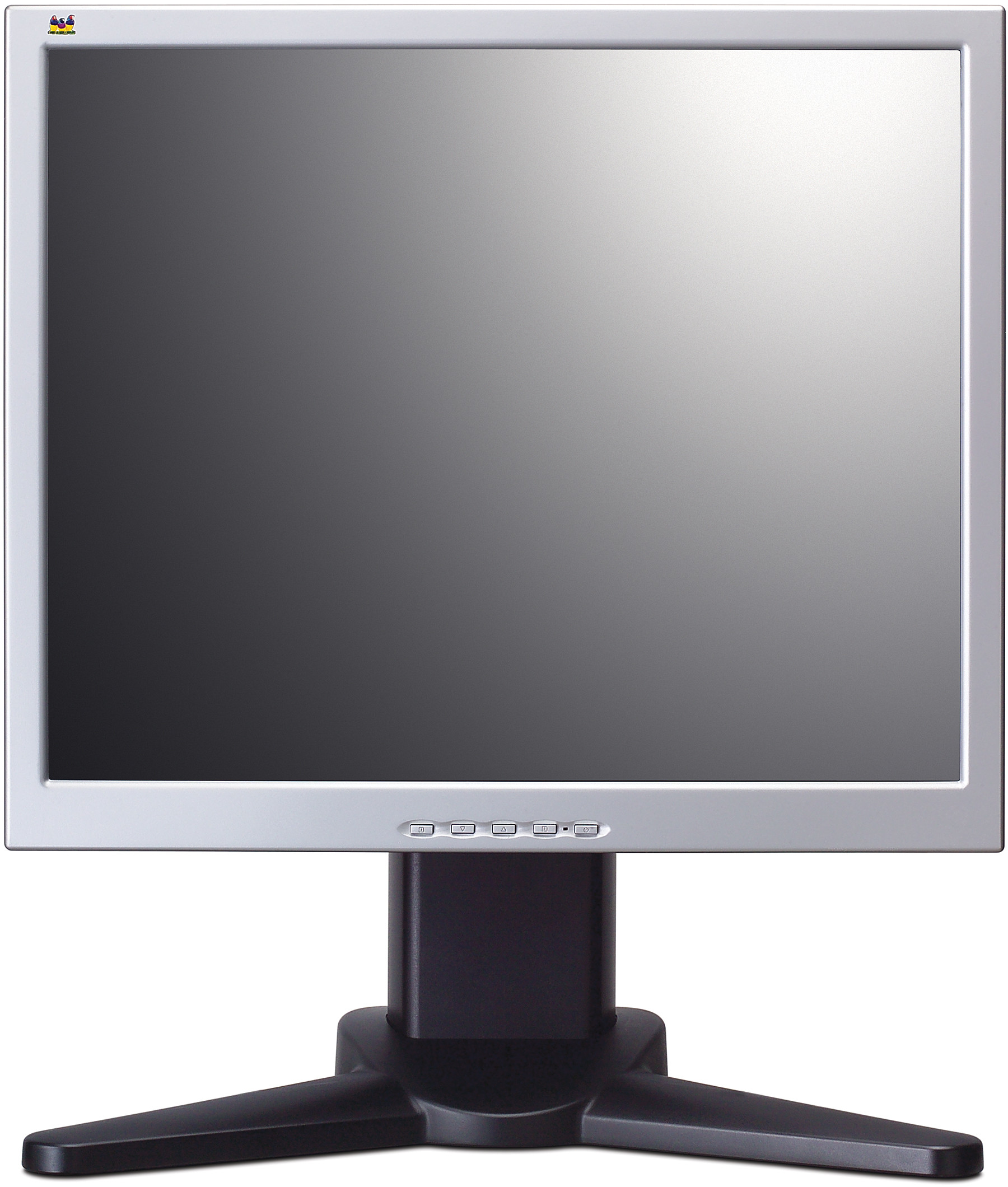

Típus: | 17” TN colour TFT active matrix SXGA LCD |
Kontrasztarány: | 500:1 (typ.) |
Betekintési szögek: | 140° horizontal, 130° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1) |
Display Area: | 33.8cm horizontal x 27.0cm vertical, 43.2cm diagonal |
Optimum Resolution: | 1280 x 1024 |
Válaszidő: | 4ms (Grey-to-Grey), 8ms (off-on-off) (typ.) |
Panel Surface: | Anti-glare |
Pixel Pitch: | 0.264mm |
Bandwidth: | 135MHz |
Colour Support: | 16.2M colours (6-bit+2-bit FRC) |
Fényerő: | 280cd/m² |
PC: | VGA up to 1280 x 1024 non-interlaced (max. 60Hz) |
Mac®: | Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz) |
W x H x D mm: | 376 x 463 x 229 (with stand) 376 x 320 x 68 (without stand) |
LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) |
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm |
Sync: | H/V separate (TTL), composite, sync on green |
Digital: | DVI-D (TMDS, 100 ohm) |
Analogue: | RGB analogue (0.7/1.0 Vp-p, 75 ohm) |
Frequency: | Fh: 24 – 82kHz, Fv: 50 – 85Hz |
Analogue: | 15-pin mini D-Sub (detachable cable) |
Digital: | 24-pin DVI-D (detachable cable) |
Audió: | 3.5mm stereo audio line-in |
Teljesítmény: | 3-pin (CEE22) |
Feszültség: | AC 100 – 240V, 50/60Hz (auto switch), internal power supply |
Fogyasztás: | <45 watt (max.), ≤1 watt in power save mode |
Basic: | Power on/off, menu [1], up, down, select [2] |
OSD: | Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio adjust (volume, mute), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall |
Hőmérséklet: | 0°C - 40°C |
Páratartalom: | 10% - 90% (non-condensation) |
Net: | 5.45kg (with stand), 3.7kg (without stand) |
Meets TCO’03, ENERGY and Energy Star standards |
Kensington® security port |
VESA FPMPMI 100mm x 100mm |
Dönthető: | Down 5°, Up 20° |
Height Adjustment: | 0~100mm |
Pivot: | 0°~90° |
Speakers: | 2 x 1 watt |
